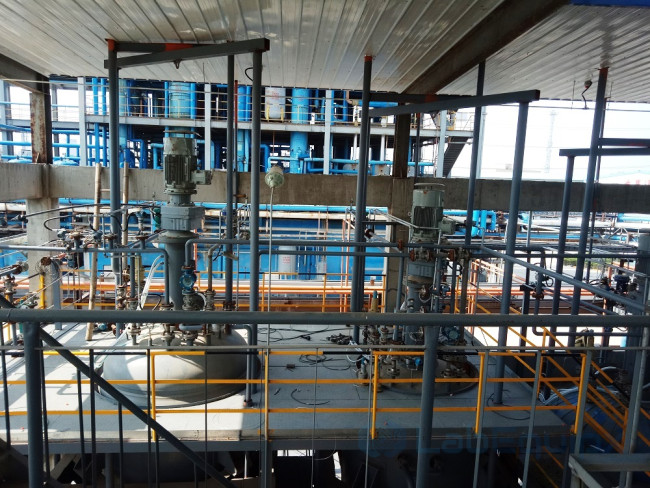

Zirconium Cladding Chemical Reactors LEZCCR

• Volume: 500-10000liters.
• Design pressure: maximum up to 100bar
• Design temperature: Up to 350℃
• Material：Zirconium (Zircomium 702)

Construction of material（Zirconium）

Pure zirconium

Zirconium is one of the most corrosion-resistant metals in common use today. It is inert to practically all organic and inorganic compounds. Good weldability and solderability.

Note: Zirconium can also be explosive clad to carbon steel to form a bimetallic material of construction.

Corrosion Resistant

Zirconium exhibits excellent resistance to corrosive attack in most organic and inorganic acids, salt solutions, strong alkalis, and some molten salts.

• Acetic Acid
• Formic Acid
• Hydrochloric Acid
• Melamine
• Nitric Acid
• Sulfuric Acid

Reactor Designs

Base data

• Working volume/ Material;
• Working pressure/ temperature;
• Heating method: Steam/ Oil/ Electric;
• Seal type: Magnetic or mechanical

Internal fittings

• Internal heating/Cooling coils: Tube type or spiral coils;
• Dip tube & temperature measure tube;
• Shaft, Couplings & combined stirring paddle impeller;
• Gas distributor. spargers & baffles

Optional for pressure vessel

• Full Jacket/ Half-pipe jackets/ Dimpled jackets；
• Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat；
• Explosive clad steel for anti-corrosion high pressure conditions.
