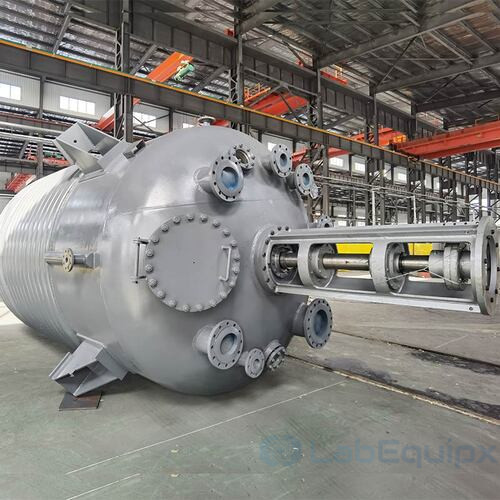

Titanium alloy Cladding Chemical Reactor LETACCR

• Volume: 1000-500000liters.
• Design pressure: maximum up to 200bar
• Design temperature: Up to 300℃
• Material：Titanium.

Reactor Designs

Base data

• Working volume/ Material;
• Working pressure/ temperature;
• Heating method: Steam/ Oil/ Electric;
• Seal type: Magnetic or mechanical

Internal fittings

• Internal heating/Cooling coils: Tube type or spiral coils;
• Dip tube & temperature measure tube;
• Shaft, Couplings & combined stirring paddle impeller;
• Gas distributor. spargers & baffles

Optional for pressure vessel

• Solid Wall/ Full Jacket/ Half-pipe jackets/ Dimpled jackets；
• Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat；
• Explosive clad steel for anti-corrosion high pressure conditions.

Construction Materials（Titanium）

• High strength
• High resistance to stress corrosion cracking, corrosion fatigue and erosion
• Ability to withstand hot/dry and cold/wet acid gas loading
• Excellent resistance to corrosive and erosive action of high-temperature acid steam and brine
• Weight saving possbilities
• Good workability and weldability

Note: Titanium cladding plates could be considered when pressure is large, base material for strength and titanium clad for anti-corrosion.
