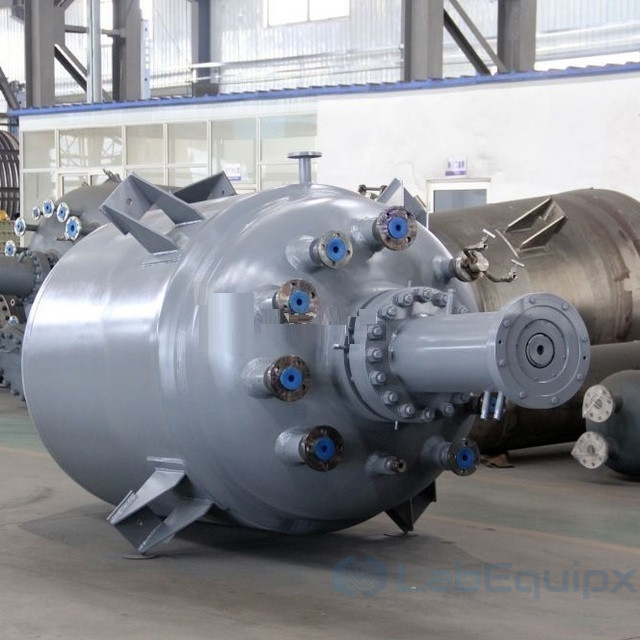

    • Сladding Hydrogenation Reactor LECHR

    • Сladding Hydrogenation Reactor LECHR - the hydrogenation system usually involves a three-phase slurry, the solid catalyst in slurry phase and the hydrogen bubbles as the gas phase.

      As there are a number of phase boundaries the mass transfer, and especially the hydrogen dispersion, is a very factor. The mixing system that is employed in the reactor influences the mass transfer coefficient of the gas-liquid transfer greatly.

    • Features

      Gas Induction Tech.

      • Higher gas Hold-up & mass transfer
      • Fine dispersion of the hydrogen
      • Large Gas-Liquid interfacial area
      • Recirculation of the unused gas
      • Uniform suspension of solid components (e.g., Catalyst)

      Magnetic Couplings Driver

      • 100% Sealing. Zero leakage. Low energy cost.
      • Various model for volume: 100ml~50m3
      • Long using life of bearings, less maintenance times
      • Full vaccum/200 bar available;
      • Cooling jacket set for high temperature application.

      Internal Fittings Optional

      • Internal heating/Cooling coils: Tube type or spiral coils;
      • Dip tube & temperature measure tube;
      • Shaft, Couplings & combined stirring paddle impeller;
      • Gas distributor. spargers & baffles

      Optional for Pressure Vessel

      • Full Jacket/ Half-pipe jackets/ Dimpled jackets；
      • Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat；
      • Explosive Clad Steel for anti-corrosion high pressure conditions.

      Specifications

      Model LECHR 3000L
      Total volume 3000 liters
      Design pressure 90bar
      Design temperature Up to 300℃
      Vessel material Standard SS304/SS316/Solid or clad steel SS2205, SS321, C-276, nickel, titanium, zirconium
      Motor Explosion-proof DIICT4/ 7.5-90kW
      Stirring speed 0~350rpm
      Heating method Oil jacket heating
      Cooling method Internal spiral coils or cooling tube condenser
      Jacket type Conventional/ Limpet coil/ halfpipe
      Agitator sealing Zero leakage magnetic drive couplings
      Stirring type Hollow shaft with gas induction impeller
      Gasket Spiral wound metallic gasket
      Internal fittings Term, sensor, Dip tube, Baffles, Cooling coils, Gas distributor
      Note: The data and specification can be change and customize as the requirements
