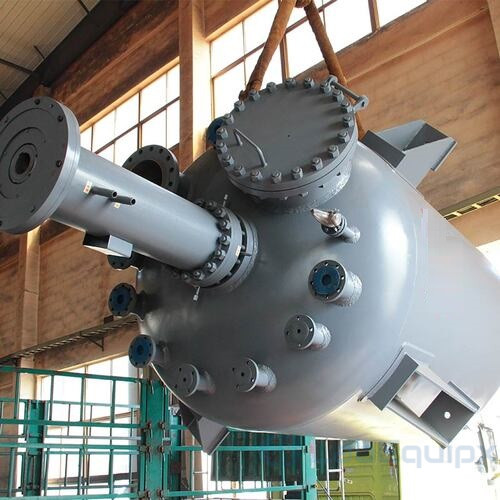

Nickel alloy Сladding Reactor Vessels LENACRV
Nickel alloy Сladding Reactor Vessels LENACRV is used in the chemical industry for its corrosion resistance - particularly to alkalis. Pure nickel shows excellent corrosion resistance in alkaline solutions such as caustic soda, and also shows outstanding resistance against highly pure halogen gas and non-oxidizing acids.
Application
- Sodium hydroxide appliaction, particularly above 300C.
- Production of viscose rayon. Manufacture of soap.
- Analine hydrochloride production and in the chlorination of aliphatic hydrocarbons such as benzene, methane and ethane.
- Manufacture of vinyl chloride monomer.
- Volume: 500-10000liters.
- Design pressure: maximum up to 100bar
- Design temperature: Up to 350℃
- Material：Pure nickel (Nickel 200; Ni6)
Reactor Designs
Base data
- Working volume/ Material;
- Working pressure/ temperature;
- Heating method: Steam/ Oil/ Electric;
- Seal type: Magnetic or mechanical
Internal fittings
- Internal heating/Cooling coils: Tube type or spiral coils;
- Dip tube & temperature measure tube;
- Shaft, Couplings & combined stirring paddle impeller;
- Gas distributor. spargers & baffles
Optional for pressure vessel
- Full Jacket/ Half-pipe jackets/ Dimpled jackets；
- Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat；
- Explosive clad steel for anti-corrosion high pressure conditions.
Construction of material（Nickel）
- 99Ni(mass%) Nickel.
- Good ductility and low work hardening rate；
- Good weldability and solderability.
Note: Nickel cladding plates could be considered when pressure is large, base material for strength and titanium clad for anti-corrosion.
Corrosion Resistant
- Caustic alkalies/ alkaline salt solutions；
- Widely used to handle caustic soda;
- Excellent corrosion resistance to distilled and natural waters；
- Hydrochloric and sulfuric acids
| Model | LENACRV |
| Brand | LabEquipx |
