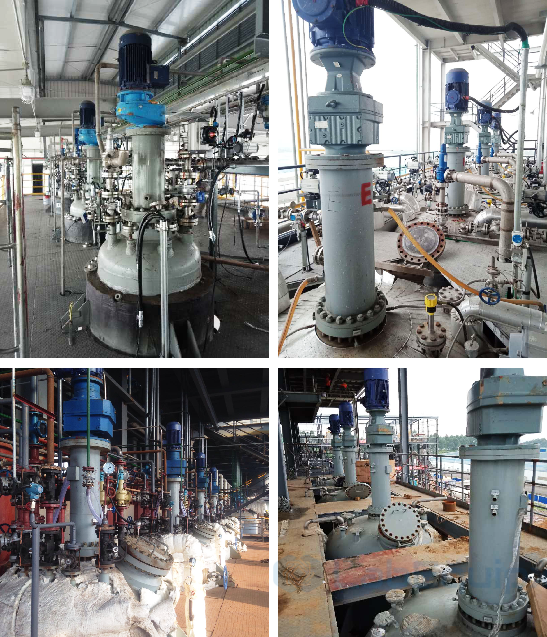

Industrial Gas Induction Hydrogenation Pressure Reactor LEIGIHPR

Industrial Gas Induction Hydrogenation Pressure Reactor LEIGIHPR - this series products are mainly for hydrogenation, self-aspiring stirring technology has complete gas consumption，high productivity and uniform suspension of the catalyst.

The hydrogenation system usually involves a three-phase slurry, the solid catalyst in slurry phase and the hydrogen bubbles as the gas phase. As there are a number of phase boundaries the mass transfer, and especially the hydrogen dispersion, is a very factor. The mixing system that is employed in the reactor influences the mass transfer coefficient of the gas-liquid transfer greatly.

Gas inducing applications: Hydrogenation – Chlorination – Oxidation – Acylation – Alkoxylation – Amination – Carboxylation.

Large scale production- Industrial hydrogenation application.
Max pressure: 200 bar; Max temperature up to 350 ℃
Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion. Reduce costs for you!
Low to high torque magnetic couplings: static seal with no leakage.
Complete gas consumption; High productivity; Uniform suspension of the catalyst.

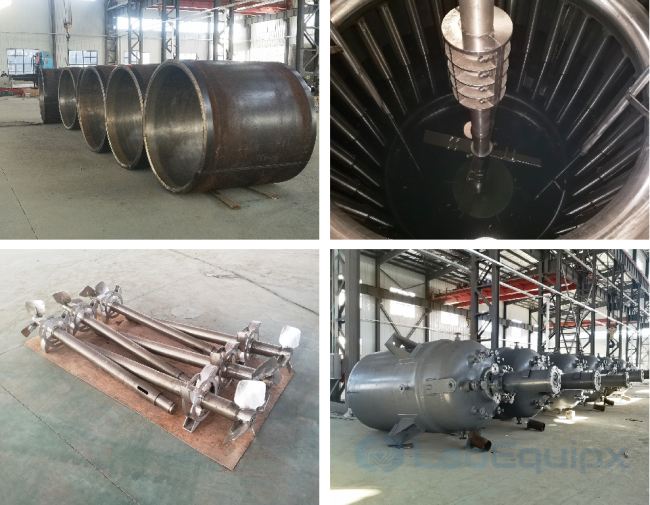

Hollow shaft with gas self-inducing impeller; Flat blade turbine impeller; Axial impeller.
Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
Nozzles, manual / automated valves, fittings, ex-proof control panel & accessories offered based on requirement.
Suitable catalyst filtration & recycling system offered for hydrogenation.
Lugs or floor stand leg support.

Model	LEIGIHPR 1000~50000L
Total volume	1000~50000 liters
Design pressure	10~150bar
Design temperature	0~350℃
Vessel material	Standard SS304/SS316/Solid or clad steel
Vessel material	SS2205, SS321, C-276, nickel, titanium, zirconium
Motor	Explosion-proof DIICT4/ 7.5-90kW
Stirring speed	0~350rpm
Heating method	Oil, steam & electric heating
Cooling method	Internal spiral coils or cooling tube condenser
Jacket type	Conventional/ Limpet coil/ half pipe
Agitator sealing	Zero leakage magnetic drive couplings
Stirring type	Hollow shaft with gas induction impeller
Gasket	Spiral wound metallic gasket
Internal fittings	Term. sensor, Dip tube, Baffles, Cooling coils, Gas distributor
Note: The data and specification can be change and customize as the requirements
