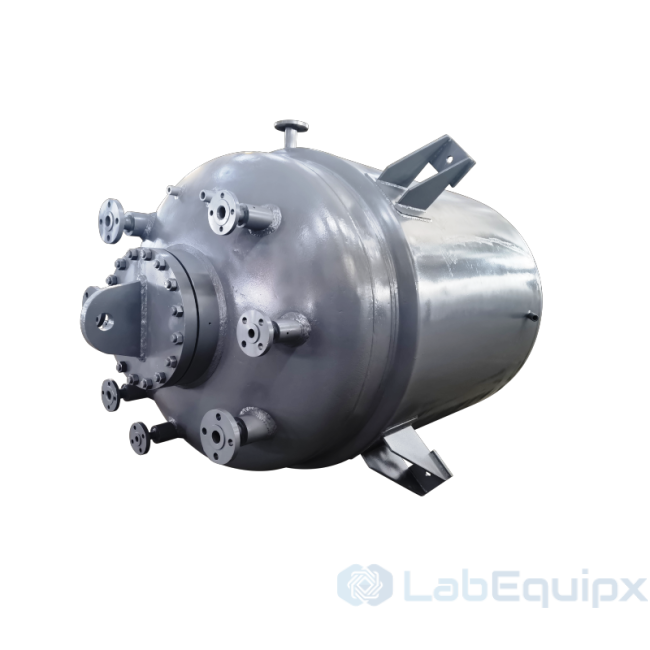

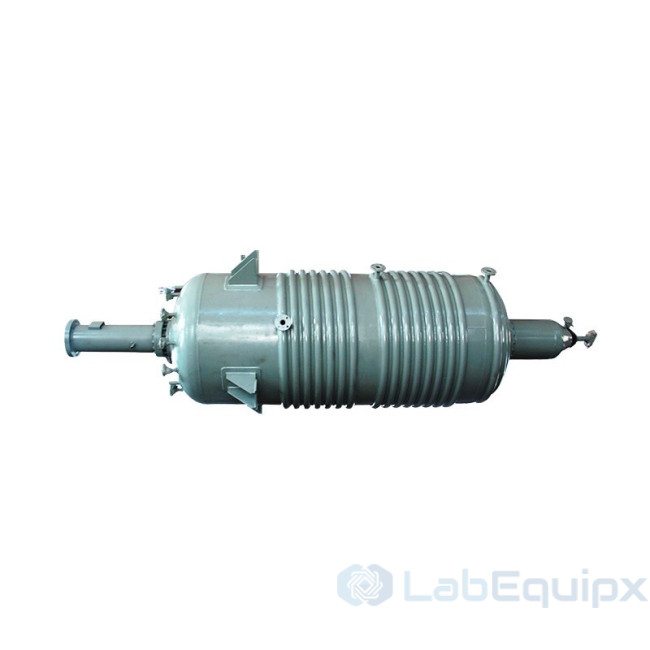

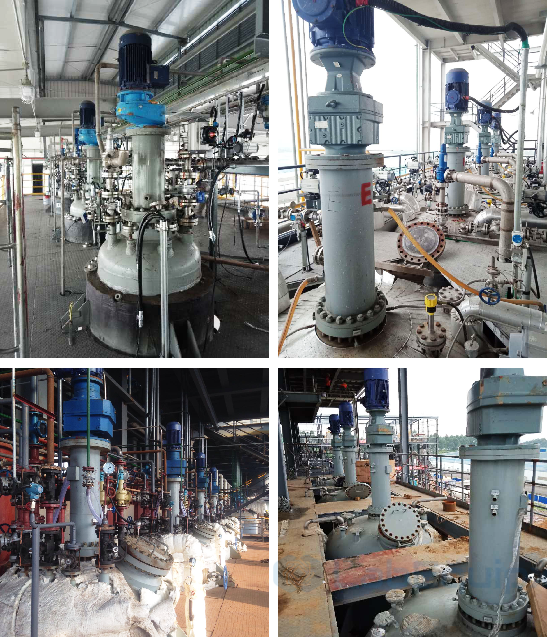

Elliptical Conical Hemispherical Chemical Reactor LEECHCR

Four commonly used head types on industrial reactor are Elliptical, conical, Hemispherical and Flat type. The standard elliptical type is the most common used for the vessel and high pressure reactor because of its economical and good stress handling.

Each of our products will go through strict inspection before leaving the factory, we need to obtain the certificate and certificate of the national quality inspection department in order to leave the factory, so the products you receive must be qualified and perfect.

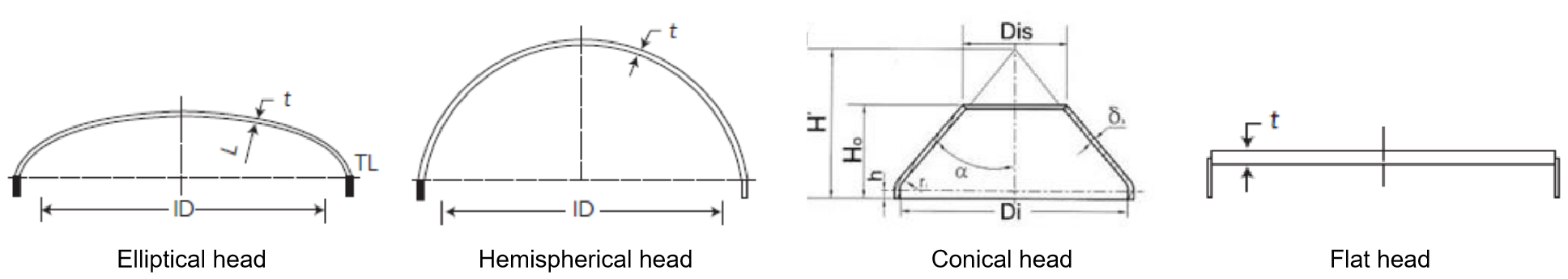

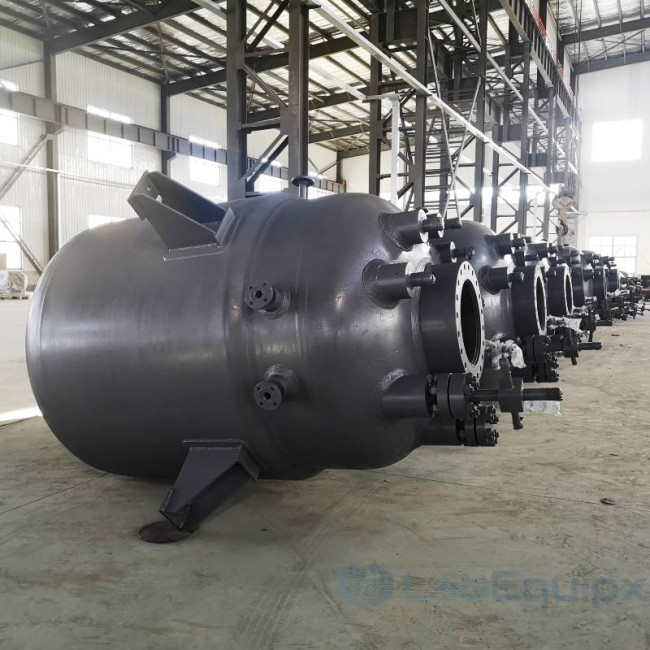

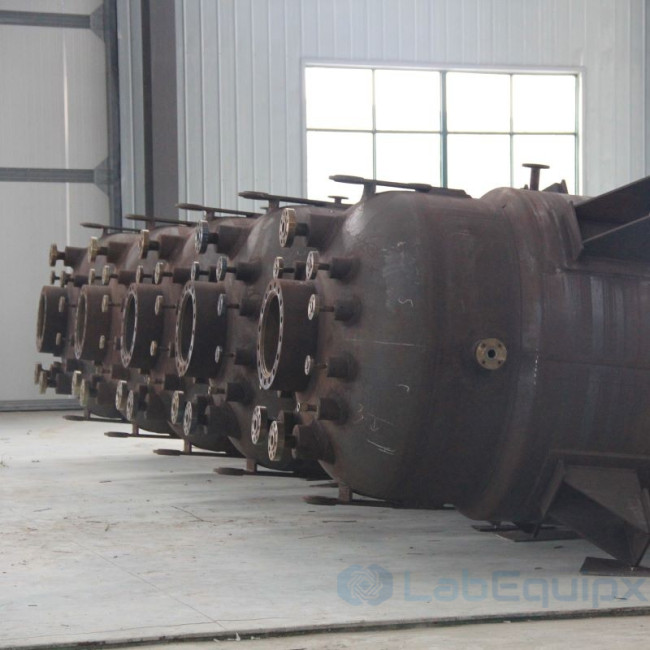

Elliptical head

The standard elliptical type(the width of the head is 4x the head depth) is the most common used in the industrial application. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

Hemispherical head

The most efficient shape for pressurized storage, hemispherical head, has a simple radial geometry(the depth of the head is half the diameter), which is commonly used in large diameter or high pressure applications where material savings are important.

Conical head

The conical head is widely set at the vessel bottom, which is used to collect and removal of internal materials and for the connection of two-stage vessels of varying diameters.

Flat head

This flat head, working purely in bending, pays for it with a massive thickness, which are usually reserved for processes that require flat inside surfaces.

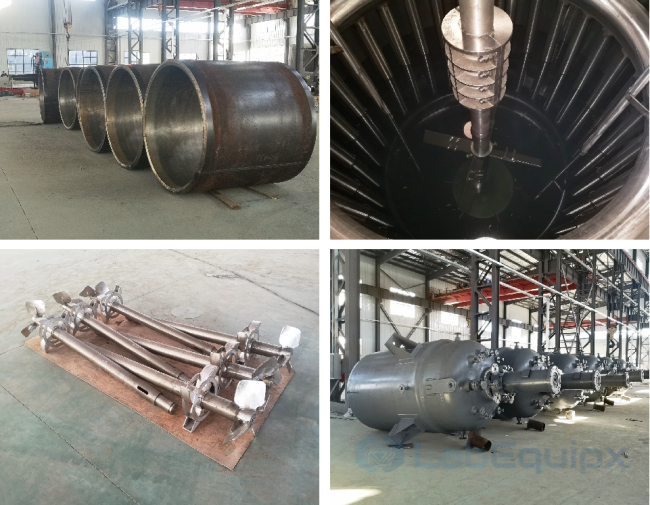

Features

Large scale production- maximum volume reach to 100m3
Max pressure: 200 bar; Max temperature up to 350 ℃
Various head type available based on the process conditions and customers requires.
Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion.
Low to high torque magnetic couplings: static seal with no leakage.
Complete gas consumption; High productivity; Uniform suspension of the catalyst.
Hollow shaft with gas self-inducing impeller; Flat blade turbine impeller; Axial impeller.

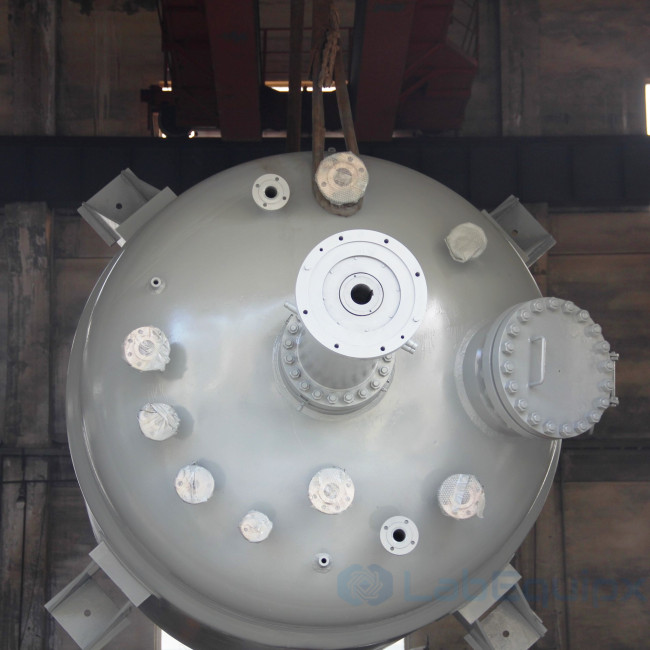

Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
Nozzles, manual / automated valves, fittings, ex-proof control panel & accessories offered based on requirement.
Lugs or floor stand leg support.

Technical Specifications

Model	LEECHCR 1000~100000
Norminal volume	1000L-100m³
Material	CS, SS, other alloy
Working pressure	-1~200 bar
Working temp.	-196~350℃
Motor power	5.5kW-125kW
Stirring speed	200~400rpm
Sealing method	Magnetic seal Mechanical seal
Stirrer	Porpeller;Paddle type; Anchor type;Turbine type Other as designed
Head type	Elliptical type Conical type Hemispherical type Flat type
Heating type	Oil electric heating Oil heating Steam heating
