LECRAPR

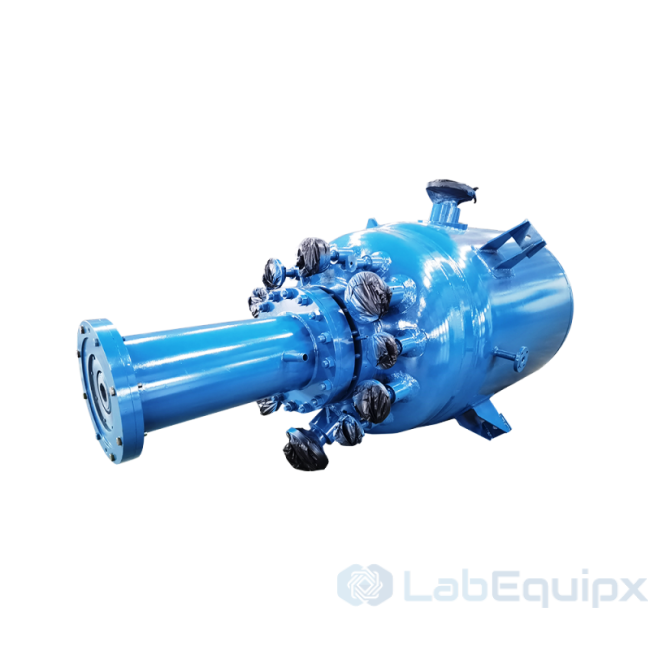

Catalytic Reductive Amination Pressure Reactors LECRAPR
Catalytic reductive amination of aldehydes and ketones with nitro compounds is a promising methodology for an efficient and green synthesis of secondary and tertiary amines. To date, numerous catalytic hydrogenation and transfer hydrogenation processes have been designed employing both noble and non-noble metal catalysts
Applications: Applied catalysis; Fine chemicals; Biological catalysis; Fuel cells.
Features
Gas Induction Tech.
- Higher gas Hold-up & mass transfer
- Fine dispersion of the hydrogen
- Large Gas-Liquid interfacial area
- Recirculation of the unused gas
- Uniform suspension of solid components (e.g., Catalyst)
Magnetic Couplings Driver
- 100% Sealing. Zero leakage. Low energy cost.
- Various model for volume: 100ml~50m3
- Long using life of bearings, less maintenance times
- Full vaccum/200 bar available;
- Cooling jacket set for high temperature application.
Internal Fittings Optional
- Internal heating/Cooling coils: Tube type or spiral coils;
- Dip tube & temperature measure tube;
- Shaft, Couplings & combined stirring paddle impeller;
- Gas distributor. spargers & baffles
Optional for Pressure Vessel
- Full Jacket/ Half-pipe jackets/ Dimpled jackets；
- Head type:Semi-elliptical/ Dished/ Hemispherical/ Flat；
- Explosive Clad Steel for anti-corrosion high pressure conditions.
Specifications
Model LECRAPR 100ml~20000L Total volume 100ml-20000liters Design pressure maximum up to 350bar Design temperature Up to 350℃ Vessel material Standard SS304/SS316/Solid or clad steel SS2205, SS321, C-276, nickel, titanium, zirconium Motor Explosion-proof DIICT4/ 7.5-90kW Stirring speed 0~350rpm Heating method Steam/ Oil/ Electric Cooling method Internal spiral coils or cooling tube condenser Jacket type Conventional/ Limpet coil/ half pipe Agitator sealing Zero leakage magnetic drive couplings Stirring type Hollow shaft with gas induction impeller Gasket Spiral wound metallic gasket Internal fittings Term. sensor, Dip tube, Baffles, Cooling coils, Gas distributor Note: The data and specification can be change and customize as the requirements
| Model | LECRAPR |
| Brand | LabEquipx |
