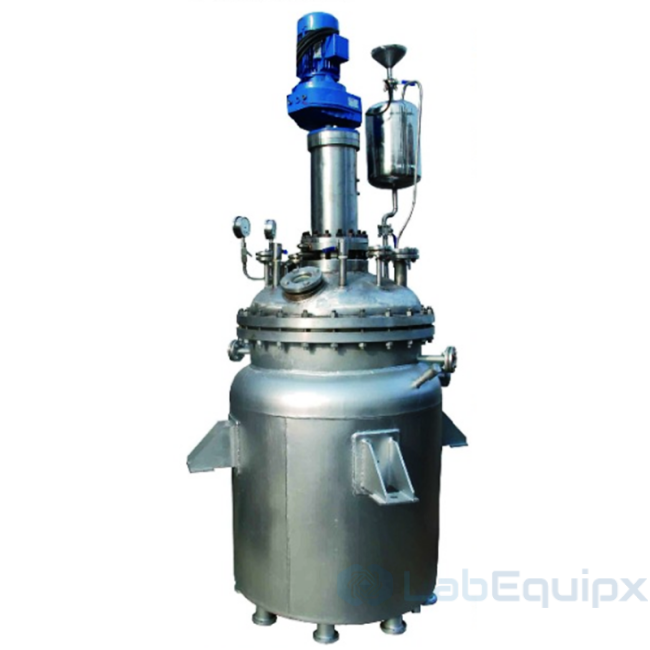

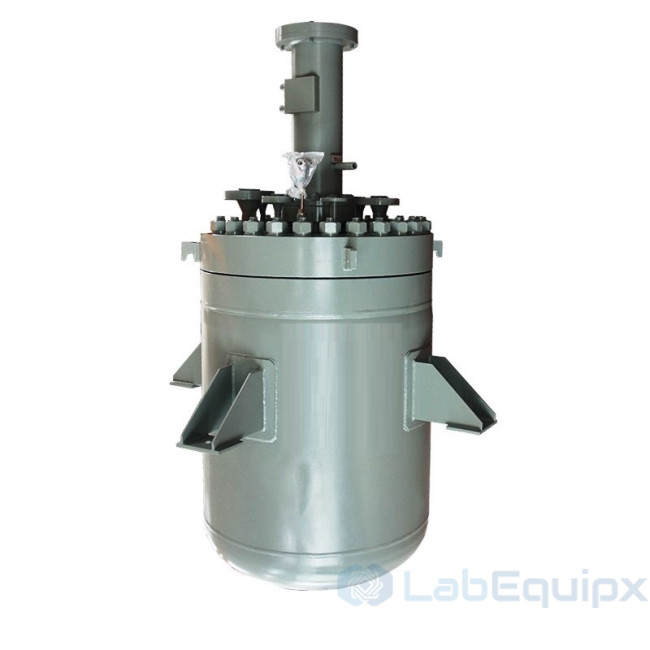

Pilot Stainless Steel High Pressure Reactor Plant LEPSSHPRP

Pressure reactors for pilot and small-scale production，which is an important development process from experimental research to industrial production. The stainless steel pilot reactor meets most mid-reactions, with beautiful appearance and competitive price, and can be customized according to customer requirements.

For systems of this scale, safety is very important, especially when hydrogen and other reactions are carried out under higher pressure.

This series products are pilot reaction devices made of stainless steel, including pilot high pressure reactor, heating system, cooling system and control system, which are mainly applied to pilot reaction process, it is an important development process from experiment to industrial production. Pilot-scale autoclave adopts magnetic stirring seal, which is suitable for chemical reactions with high sealing requirements, toxic and explosive.

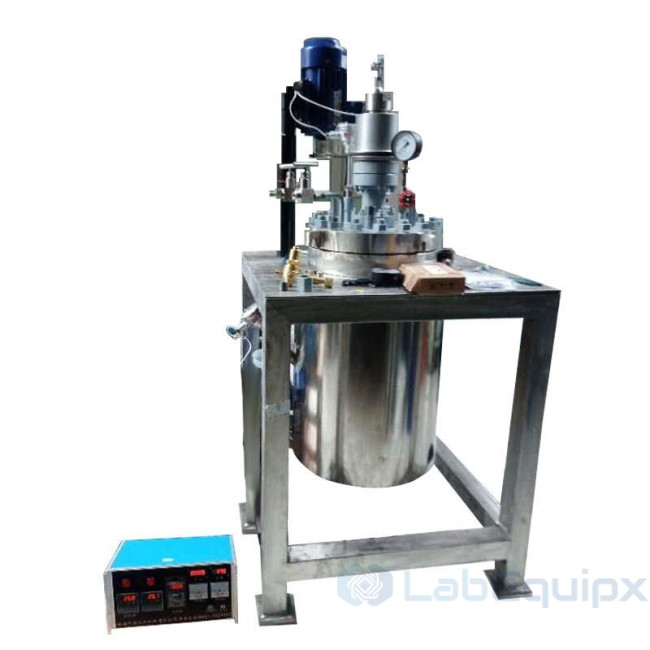

Floor stands or moveable cart type
Capacity volume： 10 liters to 500 liters
Max pressure: 300 bar; Max temperature up to 300 ℃
Low to high torque magnetic couplings: static seal with no leakage

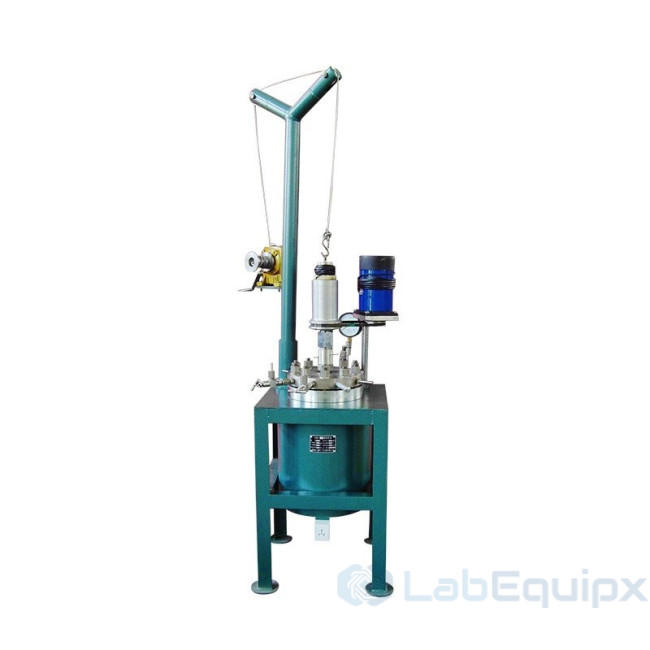

Lifting device available for reactor head rising and lowering
Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
Monitor and control: Temperature, pressure, motor speed, operating time, etc
Customized according to customers requirement

Model No.	LEPSSHPRP-I0	LEPSSHPRP-20	LEPSSHPRP-30	LEPSSHPRP-50	LEPSSHPRP-100	LEPSSHPRP-200	LEPSSHPRP-300	LEPSSHPRP-500
Nominal Capacity （L）	10	20	30	50	100	200	300	500
Design Pressure （bar）	100	100	100	100	-0.1-300 bar customized
Material	SS304 or SS316 wetted parts
Design Temperature (℃)	350				0~350 customized
Stirring Speed （r/min）	0-750	0-750	0-500	0-500	0-500	0-450	0-450	0-450
Motor Power （kW）	0.6	1.1	1.5	1.5	2.2	2.2	4	5.5
Heating Power （kW）	4	9	9	15	Selection according to the working temperature
Heating Method	Standard electric heating (Thermal oil, steam, far infrared heating available）
Head type	Standard Flat cover type (Ellipsoidal, Conical type available)
Impeller type (Optional)	Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
Cooling type (Optional)	Spiral cooling cools with cooling water
Discharging type (Optional)	Discharging from bottom or above.

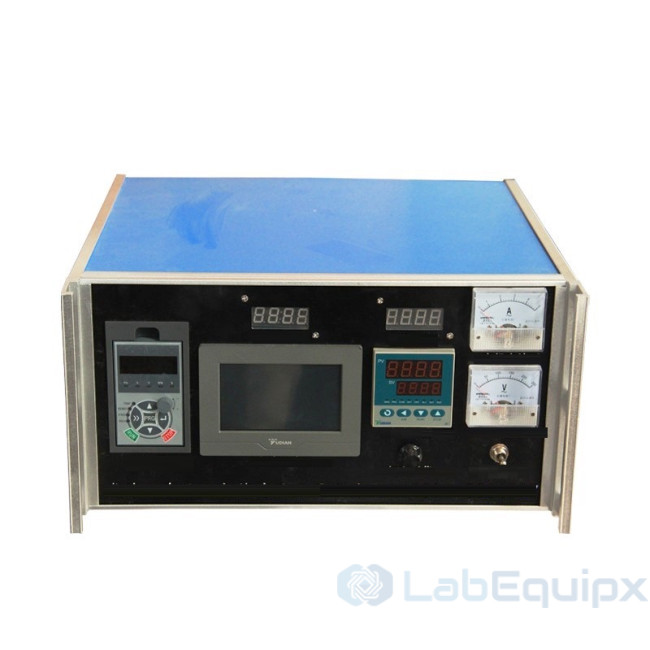

Control panel	PID temperature display and control, accuracy±1 ℃；stirring speed display；
Control panel	Operation time display; Heating voltage and current display
Opening port of head (Optional)	Pressure gauge, Safety valve port; Temp. measuring port;
	Gas and liquid port; Dip tube; Vent port; Solid charging port;
	Cooling coil inlet and outler port

Note：

The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.
The structure, specification, nozzle size and orientation need to be confrimed after communicating with us.

Model	LEPSSHPRP
Brand	LabEquipx
