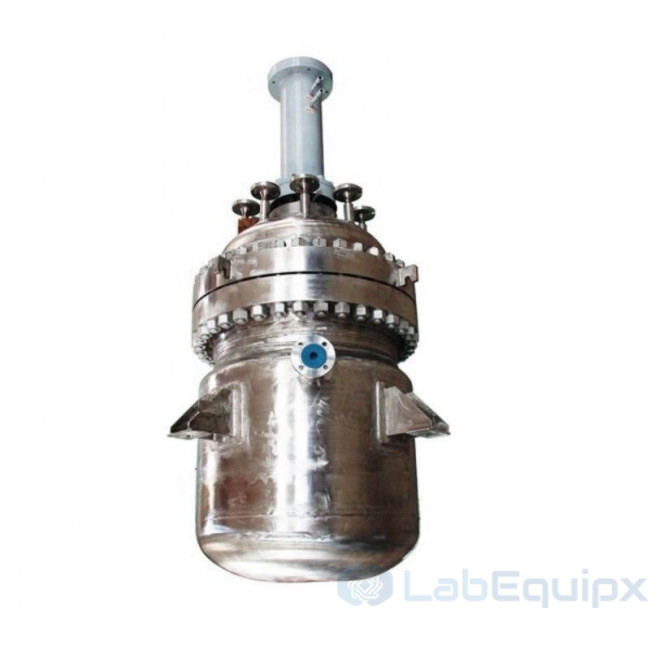

Gas Induction Reactor Hydrogenators LEGIRH
Gas Induction Reactor Hydrogenators LEGIRH - 500 liters Gas Induction Reactor Hydrogenators are used for scale up and smaller productions in Pilot Plants and kilolabs. This series reactor are built for pressure reactions as well as for reactions under full vacuum. Different technologies and materials are used, depending on the requested process and process media.
With the miniPilot product family (reactor, pressure vessel) we offer mini-plants for chemical process development, scale-up, process simulation and kilo-scale production.We produce complete solutions for chemical processing: Reactor systems including accessories like sampling devices, pH probes, rectification columns with structured packing, process monitoring and control as well as integration of auxiliary equipment such as temperature control units, filters / dryers, gas scrubbers or mixing vessels.
Specification of 500 liters Reactor
- Volume:500liters
- Max pressure:250bar
- Max temperature:350℃
- Material:SS304,SS316,Hastelloy C276, PTFE liner or other alloys
- Heating type:Electric heating, Oil heating

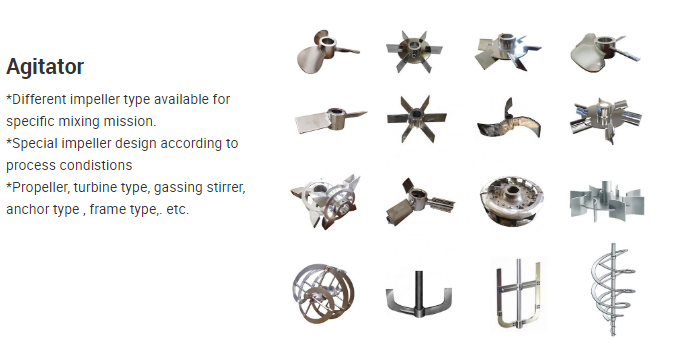

- Stirrer:Propeller,Paddle,Turbine,Gas induction,customized
- Jacketed type: Conventional or Limpet coil
Product Features
Product Parameter

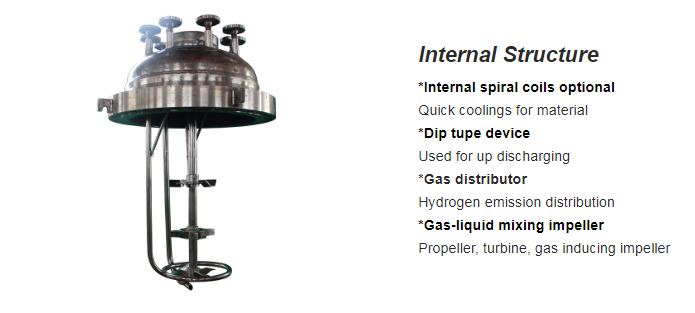

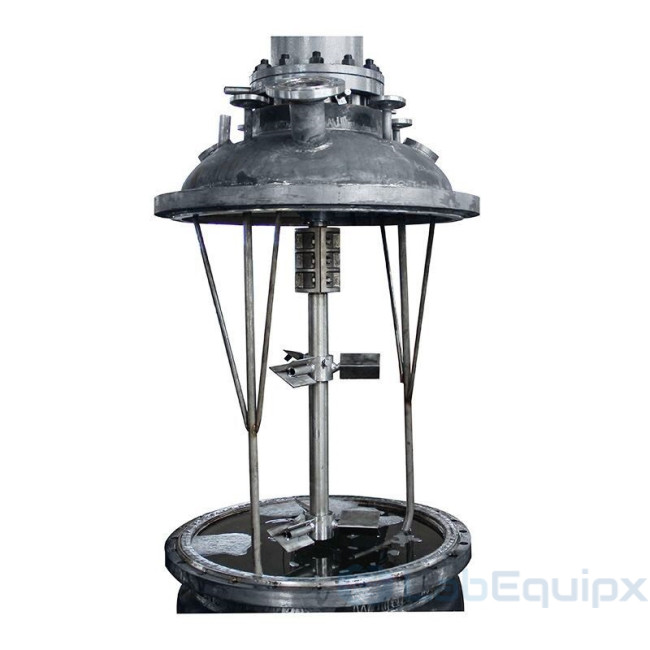

Model No. LEGIRH-50 LEGIRH-100 LEGIRH-200 LEGIRH-300 LEGIRH-500 Nominal Capacity 50 L 100 L 200 L 300 L 500 L Design Pressure -0.1-250 bar customized Material Clad SS304: SS316 or other alloys Design Temperature 0~350°C customized Stirring Speed 0-500 rpm 0-500 rpm 0-450 rpm 0-450 rpm 0-450 rpm Motor Power 1.5 kW 2.2 kW 2.2 kW 4 kW 5.5 kW Heating Method Standard electric heating(Thermal oil, steam, far infrared heating available) Head type Flat cover or elliptical flange type Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc Cooling type (Optional) Internal spiral cooling cools Discharging type (Optional) Discharging from bottom or up discharge by pressure. Control panel PID temperature display and control. accuracy±1 °С: Stirring speed display; Operation time display; Heating voltage and current display. Standard Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve Dip Tube; Safety Rupture Disc; Cooling Coil Optional Solid plug port, constant feeding tank, safety valve, external condenser Reflux pipeline, drain valve, receiver, etc.
| Model | LEGIRH |
| Brand | LabEquipx |
