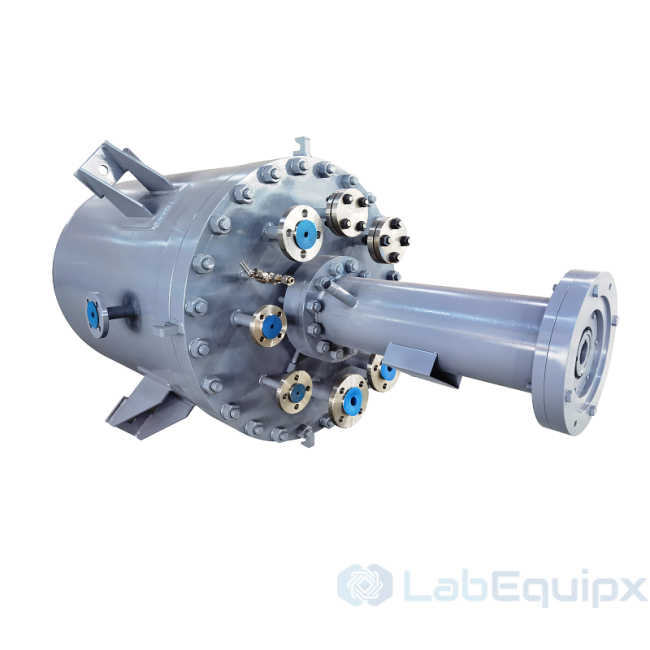

Electric Lifting Stainless Steel Clad Pilot Pressure Autoclave Reactors LEELSSCPPAR

Electric Lifting Stainless Steel Clad Pilot Pressure Autoclave Reactors LEELSSCPPAR - applicated in Hydrogenation, Gas liquid reaction, Polymerization, Synthesis, Catalytic, Petrochemical, etc. Different technologies and materials are used, depending on the requested process and process media.

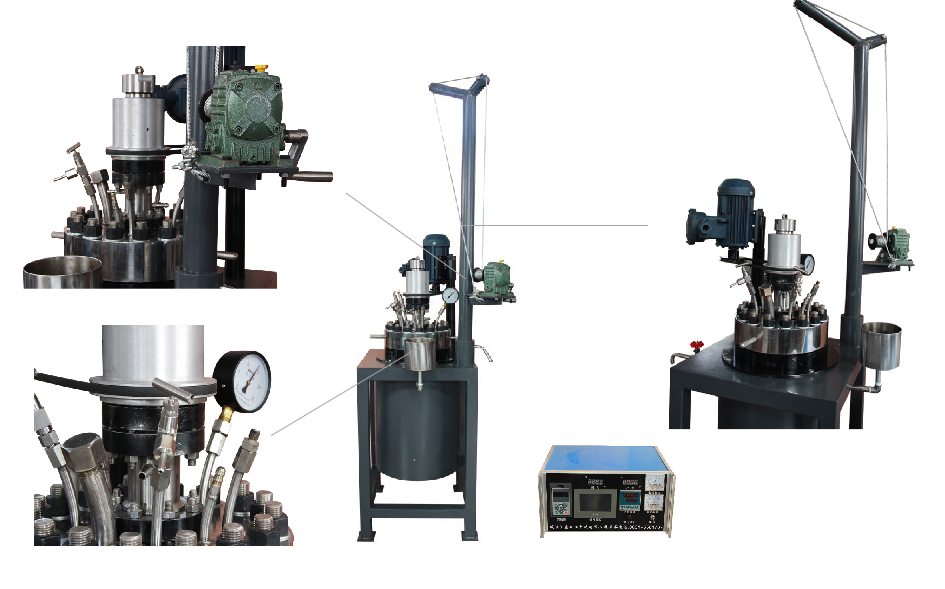

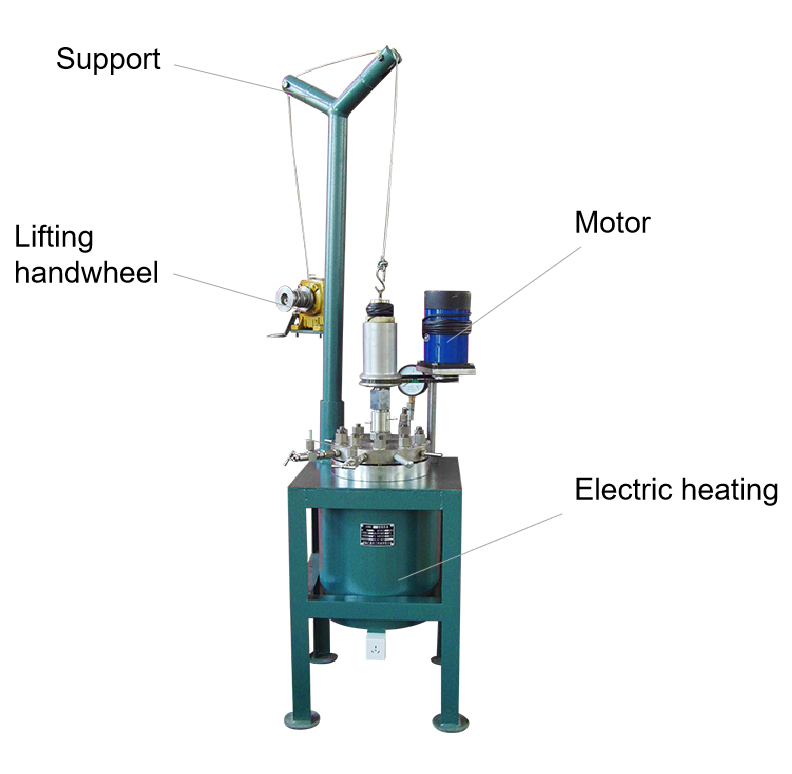

For the design of pilot-scale autoclave and detachable head, the head and container are too heavy to be lifted manually. Therefore, the design with chain pulley support installed can lift the head with minimal effort. When manual operation is still laborious, it can also adopt electric lifting or even hydraulic lifting.

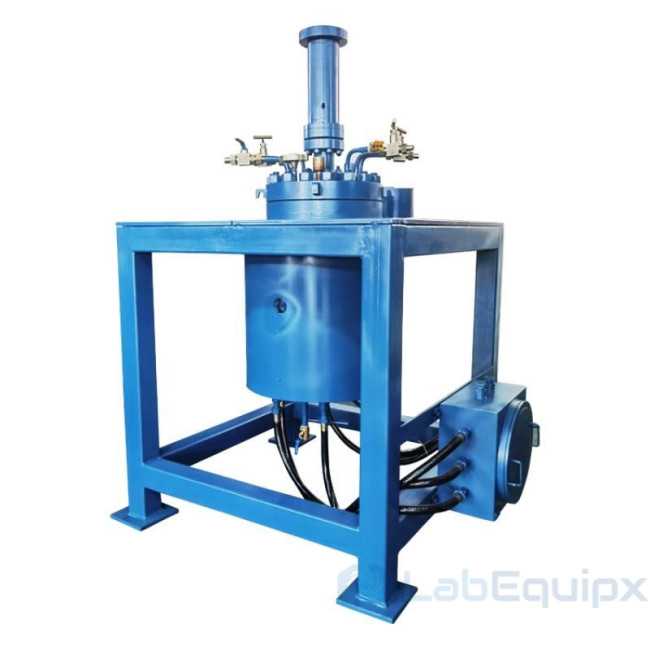

Floor stands or moveable cart type.
Capacity volume： 10 liters to 50 liters.
Pressure: -1~300 bar; Max temperature up to 350 ℃

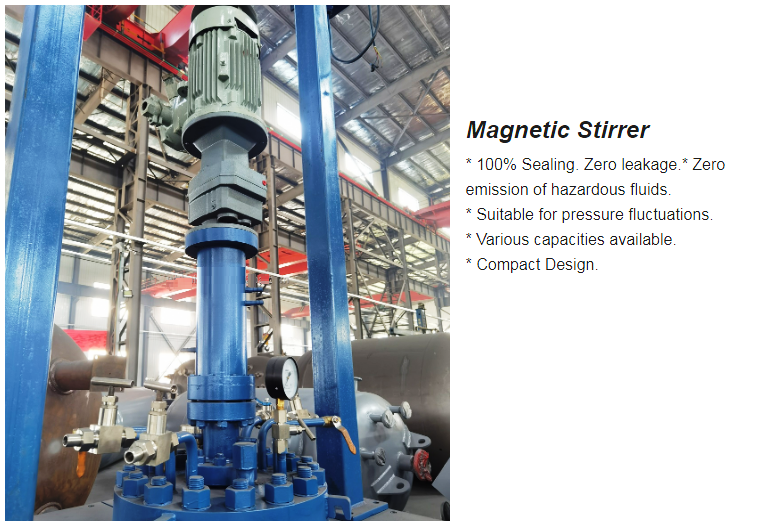

Low to high torque magnetic couplings: static seal with no leakage.

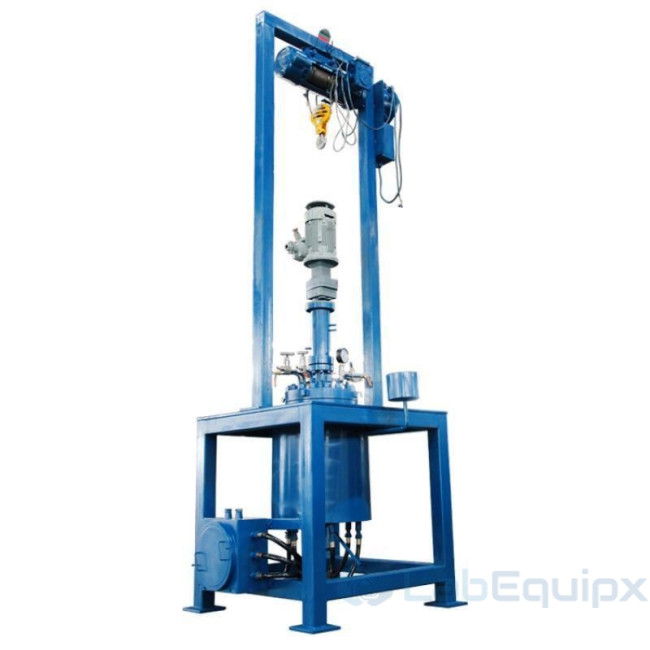

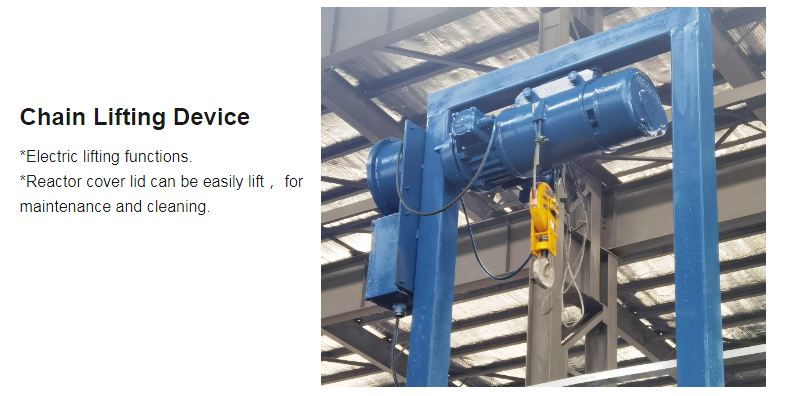

Chain pulley lifting device for reactor head rising and lowering (Electric lifting and hydraulic lifting available）
Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
Monitor and control: Temperature, pressure, motor speed, operating time, etc.
Customized according to customers requirement.

Model No.	LEELSSCPPAR-50	LEELSSCPPAR-100	LEELSSCPPAR-200	LEELSSCPPAR-300	LEELSSCPPAR-500
Nominal Capacity	50 L	100 L	200 L	300 L	500 L
Design Pressure	-0.1-250 bar customized
Material	Clad SS304, SS316 or other alloys
Design Temperature	0~350°C customized
Stirring Speed	0-500 rpm	0-500 rpm	0-450 rpm	0-450 rpm	0-450 rpm
Motor Power	1.5 kW	2.2 kW	2.2 kW	4 kW	5.5 kW
Heating Method	Standard electric heating(Thermal oil, steam, far infrared heating available)
Head type	Flat cover or elliptical flange type

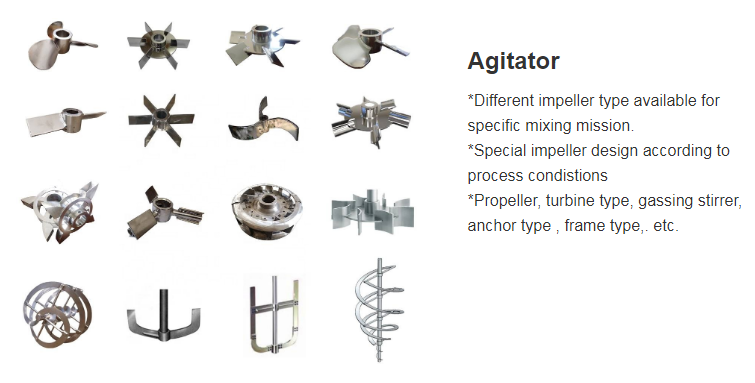

Impeller type (Optional)	Propeller paddle, anchor, spiral, turbine, gas inducing type, etc

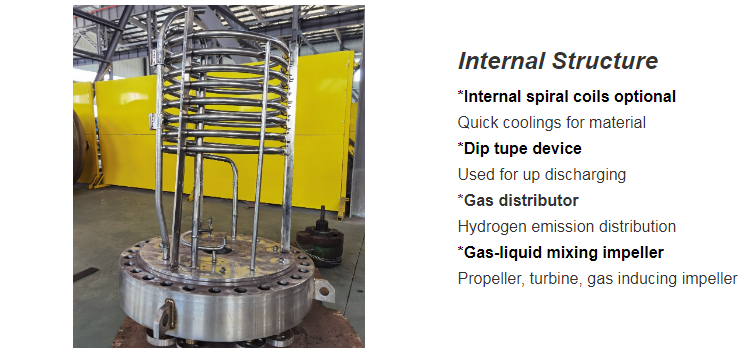

Cooling type (Optional)	Internal spiral cooling cools
Discharging type (Optional)	Discharging from bottom or up discharge by pressure.
Control panel	PID temperature display and control, accuracy±1 °С; Stirring speed display; Operation time display; Heating voltage and current display.
Standard	Pressure Gage: Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve Dip Tube; Safety Rupture Disc; Cooling Coil
Optional	Solid plug port, constant feeding tank, safety valve, external condenser, Reflux pipeline, drain valve, receiver, etc.

Note：

The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.
The structure, specification, nozzle size and orientation need to be confrimed after communicating with us.
