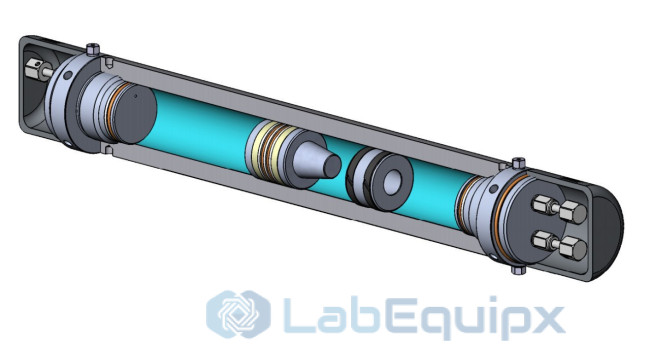

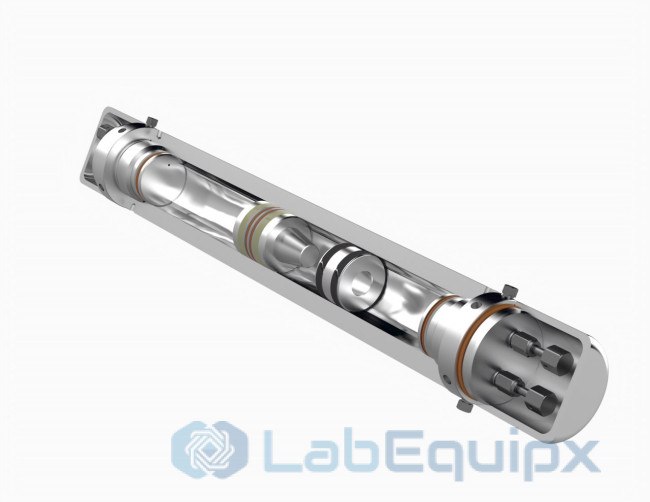

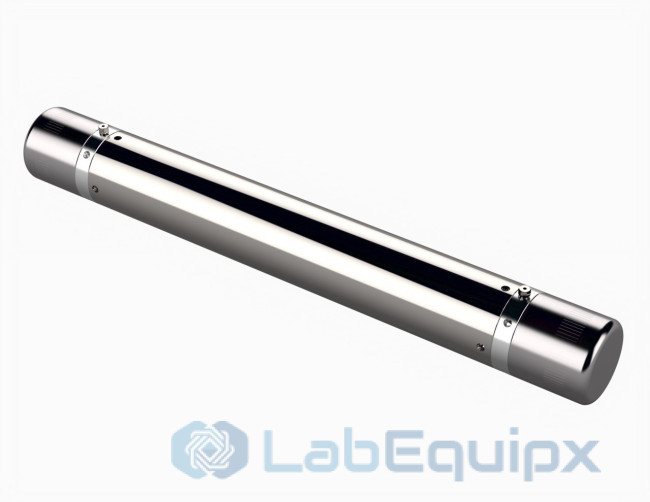

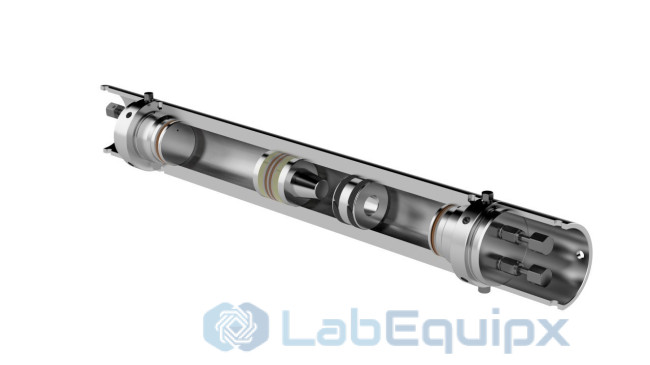

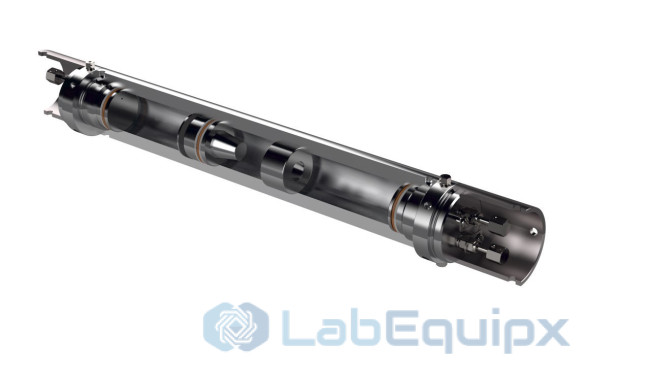

​The Type-X sample cylinder

The Type X (10K) sample cylinder is designed specifically for the task of housing samples transferred from the downhole sampler, for transportation to the analysis laboratory and subsequent storage. This transportable sampling cylinder is of piston type with two end caps, sealed with double O rings and back-up rings.

Features and benefits

• Single piston sample receiver, with internal mixing device
• Sample mixing options of a single mixing ball (illustrated)
• Evacuation port on sample side of cylinder
• Autoclave Engineer needle valves and valve protection guards fitted
• Valve inlet/outlet ports: 1/8 inch female
