LELCRV

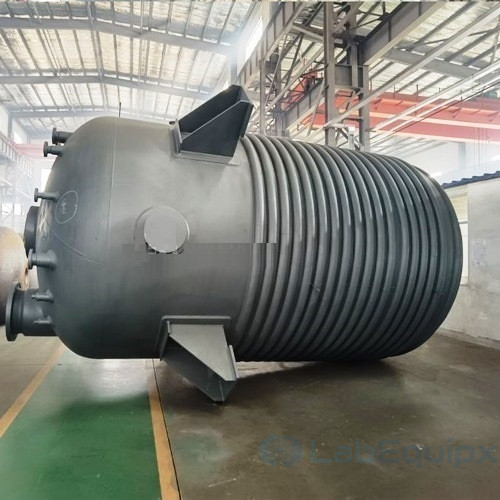

Limpet Coil Reaction Vessel LELCRV
The construction of Limpet Coil Reactor is same as that of Jacketed Reactor except instead of Jacket on the Shell of Reactor Limpet Coil is welded on it. Limpet Coil Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends. Limpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor.
Limpet coil is made of either Mild Steel Or Stainless Steel. It is either Double end double start for both heating and cooling through limpet coil or Normal Single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade filler rods depending on MOC of the Limpet Coil to withstand design pressure.
- Model: Vertical or horizontal;
- Volume: Up to 50000L;
- Pressure: Maximum up to 100bar;
- Material：Carbon steel or stainless steel clad;
- Certificate: GB; ASME U stamp; ISO certified; PED
Manufacture ability
- Vessel Max Thickness：120mm；
- Vessel Max Diameter：6m;
- Vessel Max Length：10m；
- Vessel Pressure Range：Up to 200bar;
- Overall Max Vessel weight：200 tons;
- Jacket type: Full type, Dimpled, Half-pipe, Std.
Note: The specific size and parameters need to be determined according to the customer's process parameters. If the diameter exceeds 6 meters, it have to be fabricated on the site.
| Model | LELCRV |
| Brand | LabEquipx |
