LEICLST

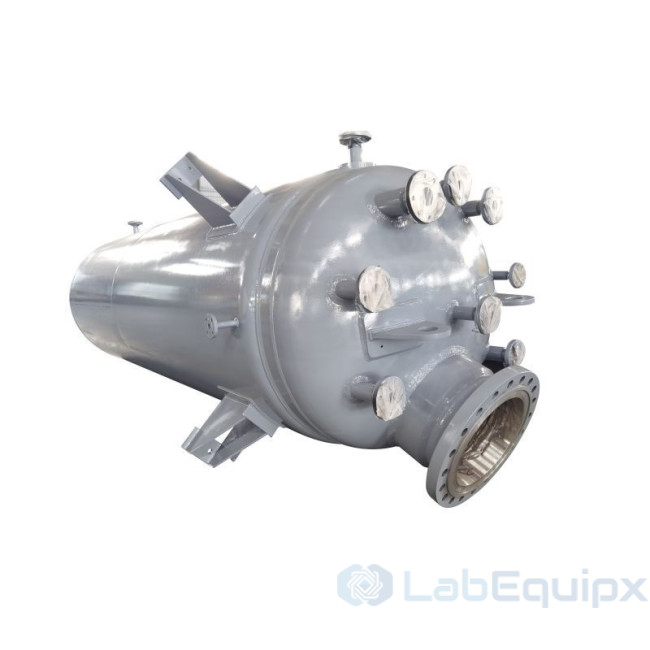

Industrial Chemical Liquid Storage Tanks LEICLST
Industrial Chemical Liquid Storage Tanks LEICLST - this serie Hot sale Clad stainless steel storage tank pressure vessels is applicated in the hydrogen storage, which is under the high pressure enviroment. The higher the working pressure of pressure vessels is, the thicker the wall of cylinder should be.
If the vessel thickness exceeds 16mm, cladding plates could be considered, base material used for strength and clad material used for anti-corrosion function.
Storage tanks are frequently used for stirring, dissolving, mixing, extraction and other processes in kilo-labs and pilot plants. These tank are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards.
Features
- Large scale industrial scale production;
- GB, ASME design and manufacture certificate.
- Max pressure: 200 bar; Max temperature up to 350 ℃;
- We offer carbon steel, stainless steel, or most exotic alloys such as Hastelloy, Monel, or Inconel;
- When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion.
- Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
- We offer various internal and external finishes for our products.
- Lugs or floor stand leg support.
Product Parameters
Norminal volume 100L-200 m3 Material Carbon steel, SS: other alloy lined Design pressure -1-200 bar Design temp. -40-350°C Base Thickness 6-160mm Clad Thickness 3-10mm Max Length 16 m Max Diameter 6 m Max weight 200 tons Shape Vertical or horizontal Head type Semi-elliptical; Dished type, Hemispherical, Flat type Jacket Dimpled, Half-pipe, Std. Heating type Oil electric heating; Oil heating: Steam heating Note: If the diameter exceeds 6,000mm, it need to be fabricated on the site. If the unit weight exceeds 200tons or the total length exceeds40m? segmented transport and field welding will be required.
| Model | LEICLST |
| Brand | LabEquipx |
