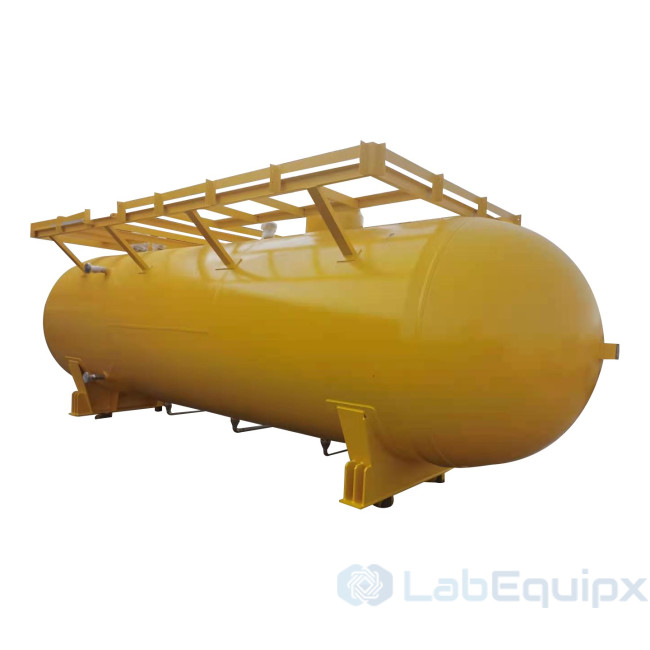

Horizontal Chemical High Pressure Vessels
Lying on its side, a horizontal pressure vessel spreads its load along the length and keeps a low profile, which suits large storage volumes and long cylinder tanks. The LEHCHPV series provides such horizontal high pressure vessels and cylinder storage tanks for energy, oil and gas, and chemical service, including high pressure hydrogen storage. Volumes run from 100 L to 200 m3 at -1 to 200 bar and -40 to 350 °C.
Design
The higher the working pressure, the thicker the cylinder wall. Base thickness ranges from 6 to 160 mm. Above 16 mm, cladding plates are considered: the base material provides strength and a 3 to 10 mm clad layer provides corrosion resistance. Shell materials are carbon steel (CS), stainless steel (SS), other alloy lined, and alloys such as Hastelloy, Monel or Inconel.
- Heads: semi-elliptical, dished, hemispherical or flat
- Jacket: dimpled, half-pipe or standard
- Heating: oil electric heating, oil heating, steam heating
- Support: lugs or floor stand legs
Limits
Parameter Limit Length 16 m Diameter 6 m Weight 200 tons Diameters above 6,000 mm are fabricated on site. Above 200 tons or 40 m total length, the vessel is shipped in segments and welded in the field.
Options
Internal cooling coil, vent port, liquid or powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light and sight glass, handhole or manhole. Internal and external finishes are offered.
Specify for your project
- Stored medium: hydrogen, hydrocarbon gas, chemical liquid
- Volume, 100 L to 200 m3, and length available on site
- Design pressure and temperature
- Material and cladding
- Nozzles, safety valves and rupture discs
Model family code: LEHCHPV.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Features
- Large scale industrial scale production;
- GB and ASME design and manufacture certification on request.
- Max pressure: 200 bar; Max temperature up to 350 ℃;
- We offer carbon steel, stainless steel, or most exotic alloys such as Hastelloy, Monel, or Inconel;
- When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion.
- Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
- We offer various internal and external finishes for our products.
- Lugs or floor stand leg support.
Product Paramenters
Norminal volume 100L-200 m3 Material CS, SS, other alloy lined Design pressure -1~200 bar Design temp. -40~350℃ Base Thickness 6~160mm Clad Thickness 3~10mm Max Length 16 m Max Diameter 6 m Max weight 200 tons Shape Vertical or horizontal Head type Semi-elliptical, Dished type, Hemispherical, Flat type Jacket Dimpled, Half-pipe, Std. Heating type Oil electric heating; Oil heating; Steam heating Note: If the diameter exceeds 6,000mm, it need to be fabricated on the site. If the unit weight exceeds 200tons or the total length exceeds40m, segmented transport and field welding will be required.
