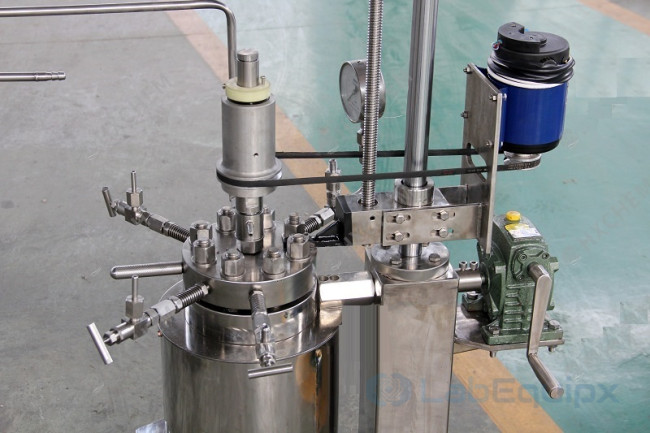

High Pressure Reaction System with Vacuum Pump LEHPRSVP
High Pressure Reaction System with Vacuum Pump LEHPRSVP - could service wide range from lab to industrial company: hydrogenations; polymerization reaction; vacuum distillation; solvent recovery; laboratory test.
Product features:
- Lifting and tilting device for easy operation, low labor cost
- Moveable head quick openning design.
- Equiped with vacuum pump and oil-free air compressor.
- Floor stands or moveable cart type.
- Laboratory autoclaves with 100 ml to 50 liters volume.
- Max pressure: 300 bar; Max temperature up to 500 ℃
- Low to high torque magnetic couplings: static seal with no leakage.
- Reflux model:Equipped with external condenser, reflux tube line.
- Receiving model:Equipped with external condenser, receiving tank.
- Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel
- Smooth run, low noise and easy operation.
- Monitor and control: Temperature, pressure, motor speed, working time, etc
- Safety Device (Blasting Disc) on Security Blasting Port.
- Customized according to customers requirement.
Product parameters:
Model No. LEHPRSVP-0.1 LEHPRSVP-0.25 LEHPRSVP-0.5 LEHPRSVP-1 LEHPRSVP-2 LEHPRSVP-5 Nominal Capacity 100 ml 250 ml 500 ml 1 liters 2 liters 5 liters Design Pressure Standard 100 bar; Maximum pressure up to 350 bar Material SS304: SS316 or other alloys Design Temperature Standard 350°C; Up to 500°C Stirring Speed 0-1500 rpm Motor Power 150W 150W 150W 0.2 kW 0.2 kW 0.6 kW Heating Power 1 kW 1 kW 1 kW 2 kW 2 kW 4 kW Heating Method Standard Electric heating (Thermal oil recycling; far infrared heating optional) Cooling Method Internal spiral coils Charging Method Up discharge by pressure or discharge by bottom valve Stirring type Propeller; paddle type: anchor type or customized Control panel Temp, display and control; accuracy ± 1°C; Stirring speed display & control. Standard fittings Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve Dip Tube; Safety Rupture Disc; Cooling Coil
| Model | LEHPRSVP |
| Brand | LabEquipx |
