LEHPHEC

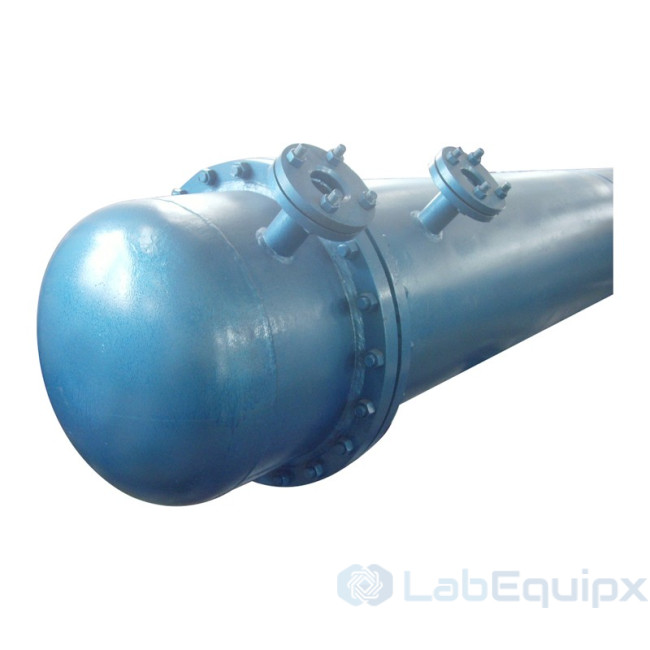

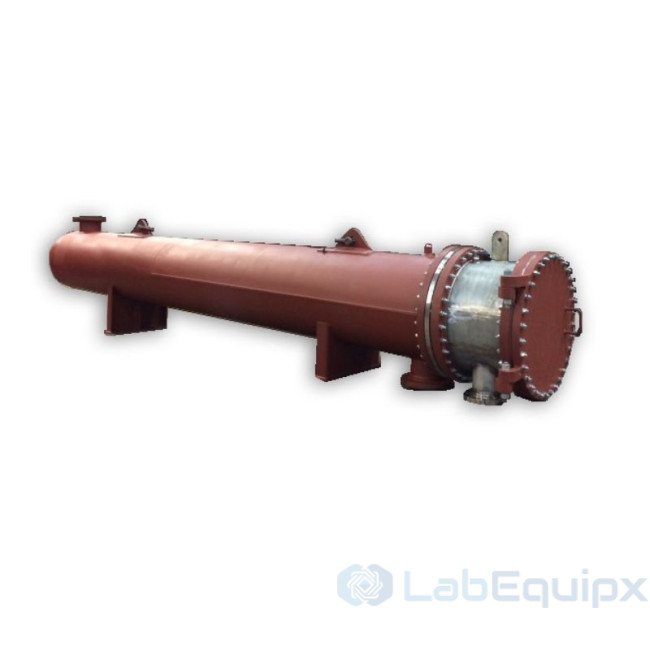

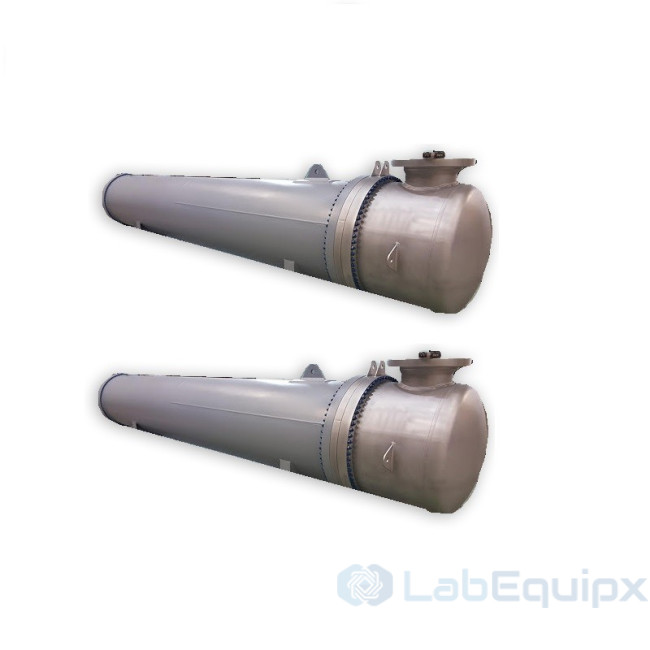

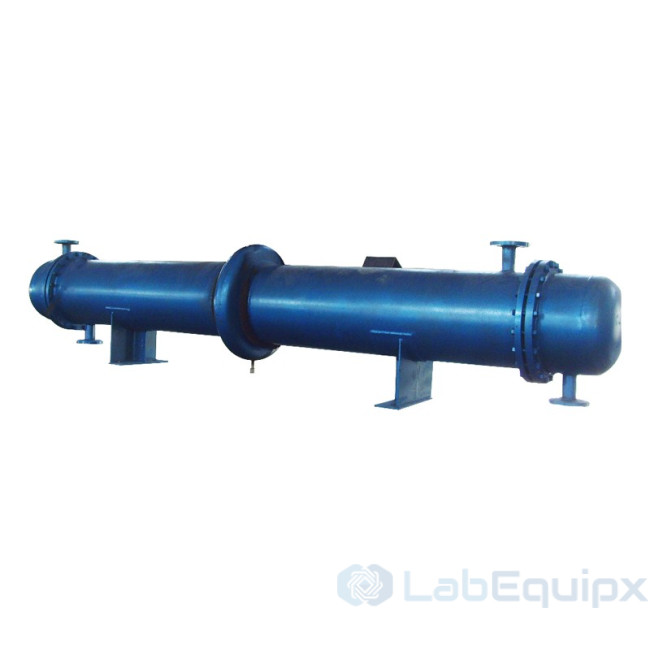

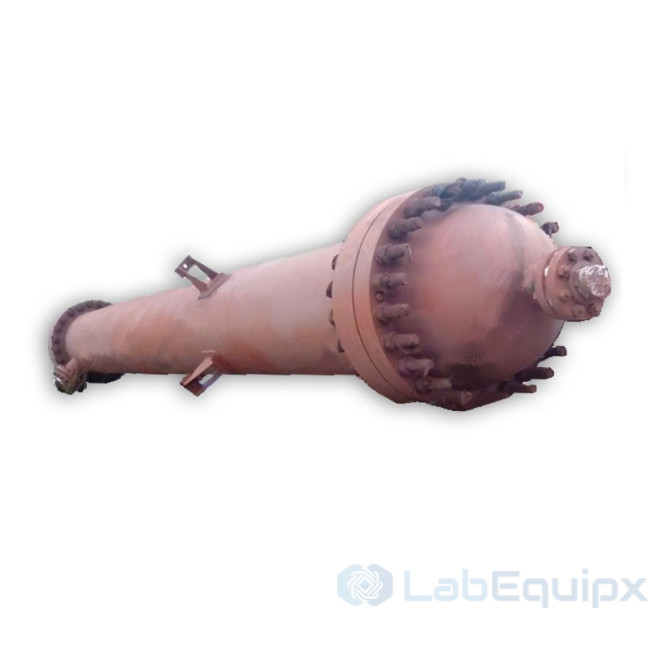

High Pressure Heat Exchanger and Condenser LEHPHEC
Stainless steel shell and tubes tubular heat exchanger cooler are very popular and commonly found in industrial use. This is mainly due to their versatility.
A shell and tube exchanger consists of a shell, tube bundle and two heads or caps at both ends of the shell. By selecting different configurations of these basic parts, we can have many different types of shell & tube heat exchangers.
Appliation: Evaporating, Heating, Condensing, Cooling process.

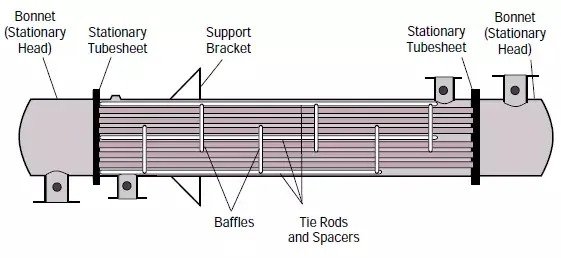

Fixed tube exchanger
- Low cost because of simple structure
- Muti- pass shell available
- Easy cleanning by removing the head, but not for the dirty fluid

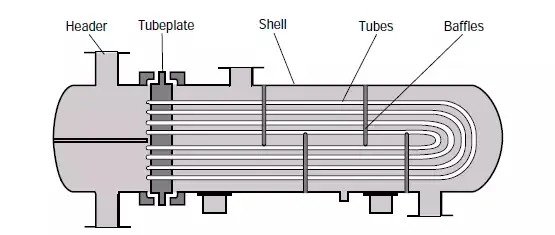

U tube exchanger
- Only one tube sheet in U shaped
- Tubes can freely expand, which is suitble for high temperature difference

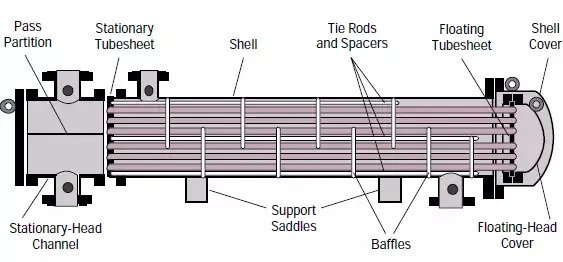

Floating head exchanger
- One head is free to expand or floating in the shell side
- Applicated in high temperature difference, as the tubes are free to expand
- The floating head cover can be easily removed
- Dirty and fouling services can also be used
- The most versatile exchanger but respectively expensive
Features
- High heat transfer coefficient
- High pressure and high temperature application
- Less solid fouling;
- Less floor space and compact design
- Tube material: CS, Aluminium, Stainless steel, Titanium, Copper alloy, Inconel, Nickel, Hastelloy
- Shell material:CS, SS304, SS316, Titanium, Alloy steel, Copper.
- Other materials available upon request.
Standard Specifications
No
Name Range 1 Heating area 1~1000M2 2 Working pressure 0.1~5 Mpa 3 Working temperature ≤350℃ 4 Heat transfer coefficient ≤350W/m2·k 5 Nominal diameter 150~2000mm 6 Heat tube length 1.0~6.0m The following parameters can be varied automatically:
- Number of tubes
- Number of tube passes
- Tube length
- Shell ID
- Number of shells in series and parallel
- Baffle spacing
- Baffle cut
| Model | LEHPHEC |
| Brand | LabEquipx |
