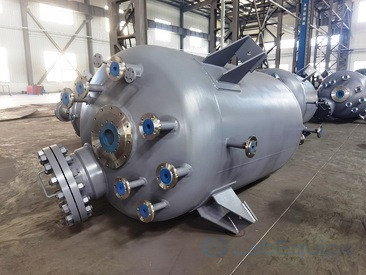

High Pressure Cladded Vessels
Description
High Pressure Cladded Vessels LEHPCV - this serie product is applicated in the gas storage, which is under the high pressure enviroment. The vessels are strong and durable and can be designed to be abrasion resistant, corrosion resistant or with alternate metallic liners for added strength.
Specification
- Model: Vertical or horizontal;
- Volume: Up to 50000L;
- Pressure: Maximum up to 200bar;
- Material：Carbon steel or alloy cladding;
- Certificate: GB; ASME U stamp; ISO certified; PED
Manufacture ability
- Vessel Max Thickness：200mm；
- Vessel Max Diameter：6m;
- Vessel Max Length：10m；
- Vessel Pressure Range：Up to 200bar;
- Overall Max Vessel weight：200 tons;
- Jacket type: Full type, Dimpled, Half-pipe, Std.
Note: The specific size and parameters need to be determined according to the customer's process parameters. If the diameter exceeds 6 meters, it have to be fabricated on the site.
If the unit weight exceeds 200tons or the total length exceeds 40meters, segmented transport and field welding will be required.
When the pressure is large, exposition clad steel plates could be considered, including base material for strength and clad material for anti-corrosion.
| Brand | Coretest |
