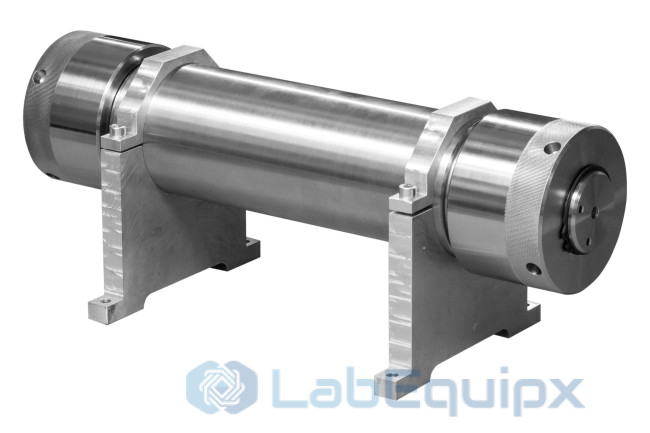

      • FPA-series Floating piston accumulator

      • The aim of the floating piston accumulator is to hold and transport high-pressure fluids using hydraulic displacement. The floating piston effectively separates the process fluid from the driving fluid, minimizing friction and lowering pressure load due to its well-designed structure.

      • Model Volume (cc) Pressure (psi) T (oC) Material
        FPA 500-10 500 10 000 180 AISI 431 or HC-276
        FPA 1000- 10 1000 10 000 180 AISI 431 or HC-277
        FPA 2000- 10 2000 10 000 180 AISI 431 or HC-278
        FPA 5000- 10 5000 10 000 181 AISI 431 or HC-279
        FPA 500-15 500 15 000 182 AISI 431 or HC-280
        FPA 1000- 15 1000 15 000 183 AISI 431 or HC-281
        FPA 2000- 15 2000 15 000 184 AISI 431 or HC-282
        FPA 5000- 15 5000 15 000 185 AISI 431 or HC-283
