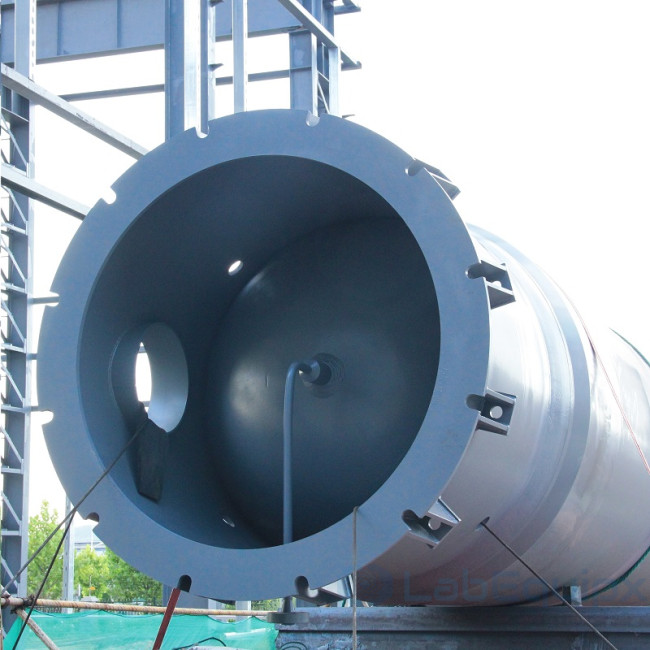

Pressure Vessels, ASME or PED on Request
The range covers vertical and horizontal gas storage tanks, liquid storage and vacuum tanks for media such as air, hydrogen, nitrogen, oxygen, natural gas, water, liquefied gas, oil and refrigerant. Ratings reach 200 bar and 350 °C over 100 L to 200 m3.
Design
Material is selected for the medium:
- Carbon steel (CS)
- Stainless steel (SS)
- Nickel alloy and titanium
- Hastelloy C276 cladding
- Hastelloy, Monel or Inconel
For high pressure, clad plate is considered: the base material carries the load and the clad material resists corrosion. Heads are semi-elliptical, dished, hemispherical or flat. A dimpled, half-pipe or standard jacket allows oil electric, oil or steam heating.
Parameter Range Nominal volume 100 L to 200 m3 Design pressure -1 to 200 bar Design temperature -40 to 350 °C Base thickness 6 to 160 mm Clad thickness 3 to 10 mm Max length / diameter / weight 16 m / 6 m / 200 tons Above 6,000 mm diameter the vessel is fabricated on site; above 200 tons or 40 m total length it is shipped in segments and field welded.
Options
Internal cooling coil, vent port, liquid or powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light and sight glass, handhole or manhole, finishes, lugs or floor stand legs.
Specify for your project
- Medium and service: gas, liquid or vacuum
- Volume and orientation
- Design pressure and temperature
- Material or cladding
Model family code: LEASMEPV.
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Features
- Large scale industrial scale production;
- GB and ASME design and manufacture certification on request.
- Max pressure: 200 bar; Max temperature up to 350 ℃;
- We offer carbon steel, stainless steel, or most exotic alloys such as Hastelloy, Monel, or Inconel;
- When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion.
- Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
- We offer various internal and external finishes for our products.
- Lugs or floor stand leg support.
Paramenters
Norminal volume 100L-200 m3 Material CS, SS, other alloy lined Design pressure -1~200 bar Design temp. -40~350℃ Base Thickness 6~160mm Clad Thickness 3~10mm Max Length 16 m Max Diameter 6 m Max weight 200 tons Shape Vertical or horizontal Head type Semi-elliptical, Dished type, Hemispherical, Flat type Jacket Dimpled, Half-pipe, Std. Heating type Oil electric heating; Oil heating; Steam heating Note: If the diameter exceeds 6,000mm, it need to be fabricated on the site.
If the unit weight exceeds 200tons or the total length exceeds40m, segmented transport and field welding will be required.
