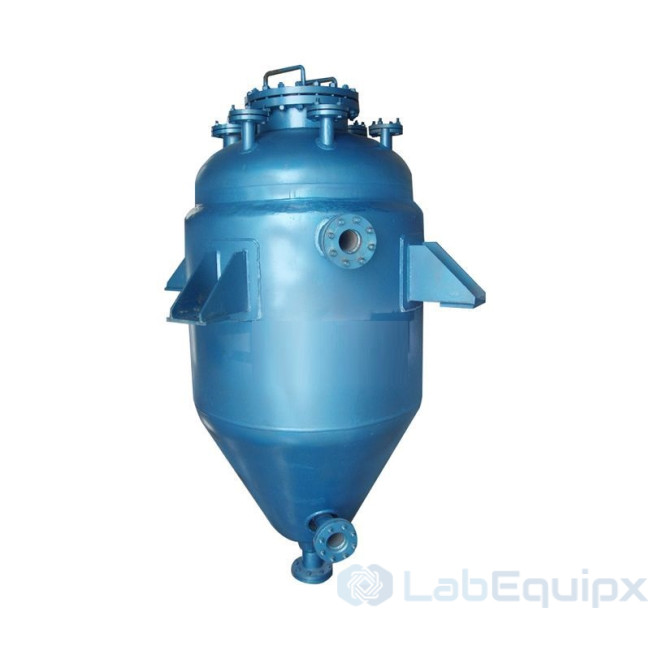

Industrial Pressure Vessels and Storage Tanks

LECIPVST industrial pressure vessels and storage tanks cover a design temperature window of -40 to 350 °C (lower temperatures, depending on the material, on request) and a long list of corrosion-resistant metals. Vessels range from 100 L to 200 m3 and from -1 to 200 bar, for chemical, gas and liquid storage duty.

Materials

• CS, SS304, SS316
• Titanium and zirconium
• Nickel, Monel, Inconel
• Hastelloy B and Hastelloy C
• Alloy lined shells and clad plate

When pressure is high, cladding plates are considered: the base material carries the load and the clad material resists corrosion. Base thickness is 6 to 160 mm, clad thickness 3 to 10 mm.

Design

Shape is vertical or horizontal. Heads: semi-elliptical, dished, hemispherical or flat. Jackets: dimpled, half-pipe or standard, for oil electric heating, oil heating or steam heating. Over 6,000 mm diameter the vessel is fabricated on site; over 200 tons or 40 m total length it ships in segments for field welding.

Options

Internal cooling coil, vent port, liquid or powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light and sight glass, handhole or manhole, lugs or floor stand legs.

Specify for your project

• Medium and minimum and maximum design temperature
• Volume, 100 L to 200 m3
• Design pressure, -1 to 200 bar
• Material from the list above
• Heating method and jacket type

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Large scale industrial scale production.
• GB and ASME design and manufacture certification on request.
• Max pressure: 200 bar; Max temperature up to 350 ℃
• Available material：CS, SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
• When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion.
• Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
• Lugs or floor stand leg support.

Technical Specifications

Note: If the diameter exceeds 6,000mm, it need to be fabricated on the site.

If the unit weight exceeds 200tons or the total length exceeds40m, segmented transport and field welding will be required.
