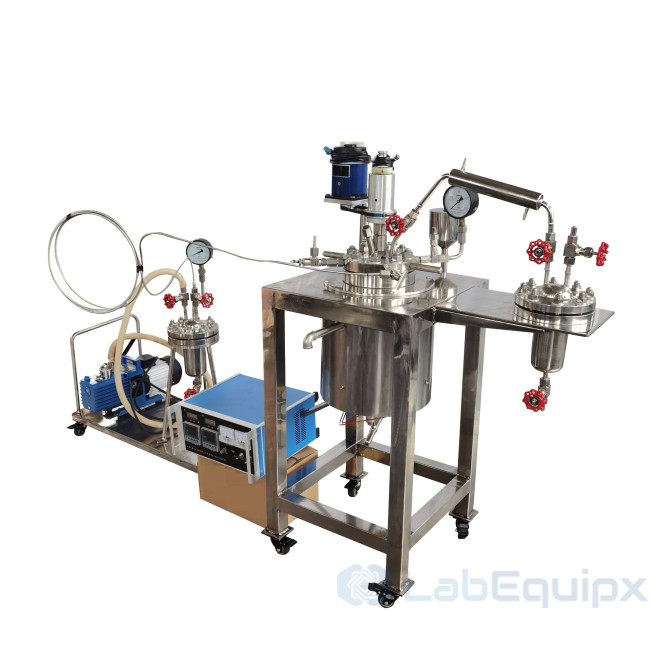

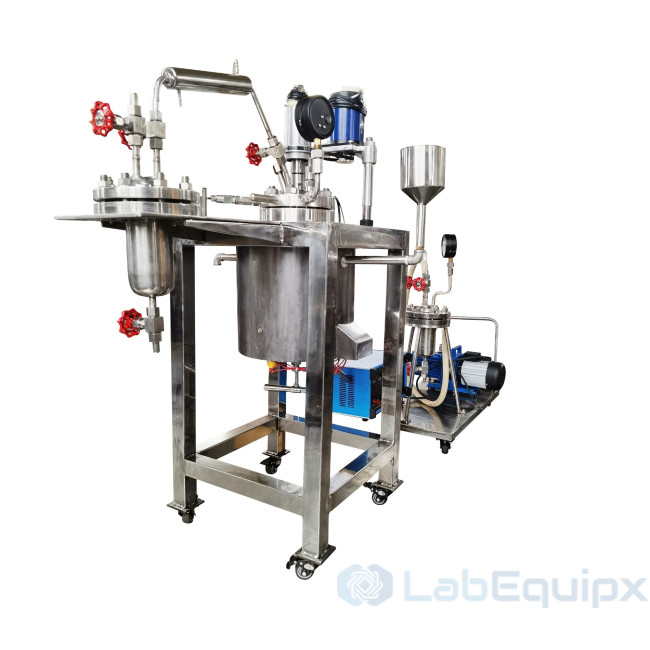

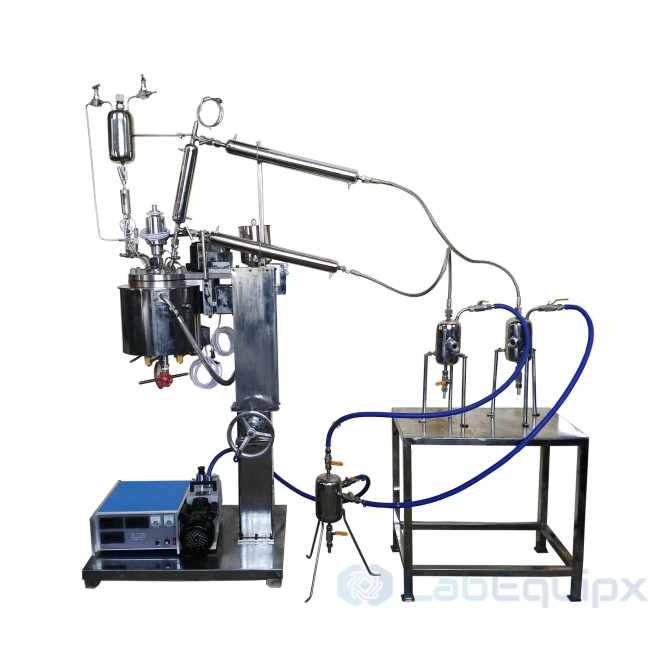

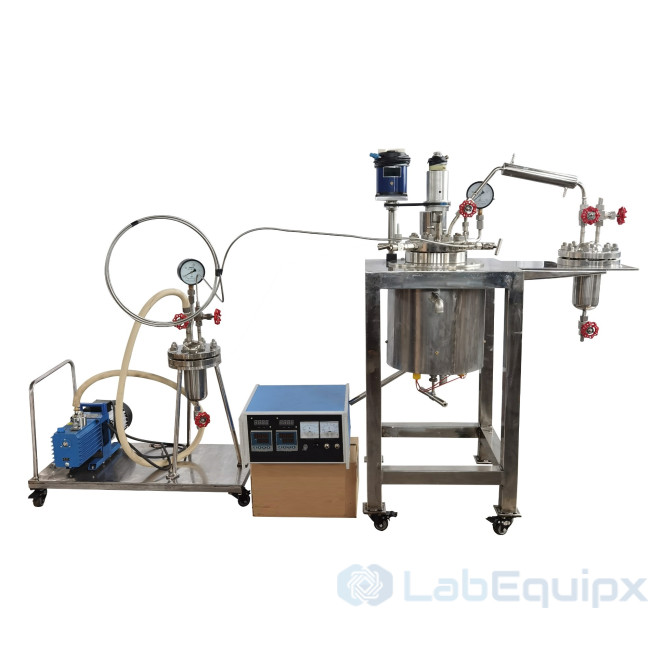

Pressure Reactor with Condensing System & Vacuum Pump LEPRCSVP

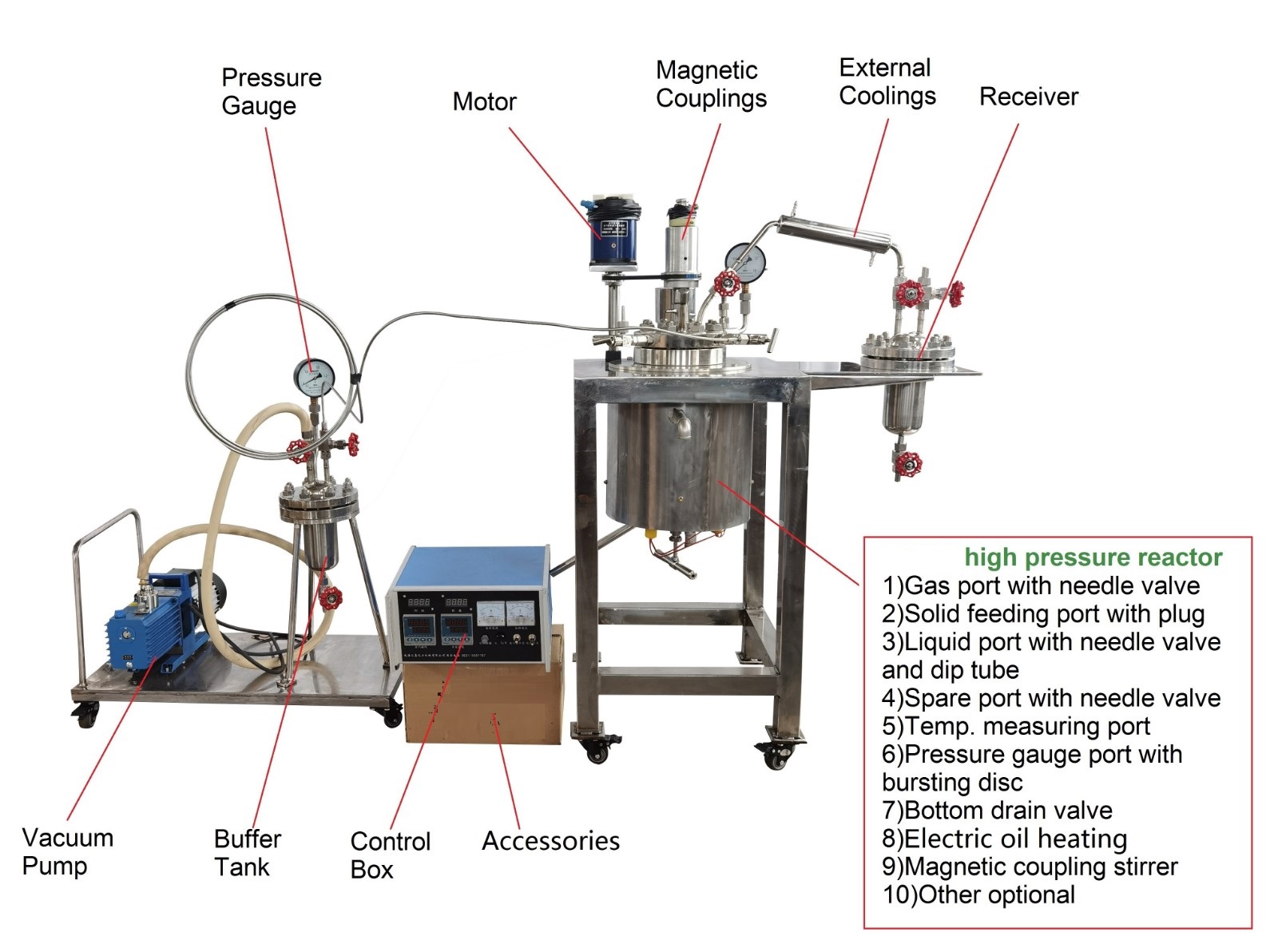

Pressure Reactor with Condensing System & Vacuum Pump LEPRCSVP - this series of reactor system includes the laboratory high pressure reactor, equipped with double condenser and recovery tank, which can be used in the application of steam condensation recovery.

Floor stands or moveable cart type.
Laboratory autoclaves with 500 ml to 5 liters volume.
Max pressure: 300 bar; Max temperature up to 500 ℃
Low to high torque magnetic couplings: static seal with no leakage.
Equipped with double condenser and recovery tank for vapor condensation recovery.
Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
Smooth run, low noise and easy operation.
Monitor and control: Temperature, pressure, motor speed, level, etc.
Safety Device (Blasting Disc) on Security Blasting Port.
Customized according to customers requirement.

Model No.	LEPRCSVP-0.5	LEPRCSVP-1	LEPRCSVP-2	LEPRCSVP-3	LEPRCSVP-5
Nominal Capacity （L）	0.5	1	2	3	5
Working Pressure （MPa）	10	10	10	10	10
Working Temperature（℃）	350	350	350	350	350
Stirring Speed （r/min）	0-1500	0-1500	0-1500	0-1500	0-1500
Motor power （kW）	0.15	0.2	0.2	0.2	0.6
Heating Power （kW）	1	2	2	3	4
Heating Method	General electric heating(water recycling, thermal oil heating available)
Cooling Method	Spiral coils（Single coils, serpentine coils available）
Charging Method	Charging from above
Stirring type	Propeller, paddle type, anchor type or customized

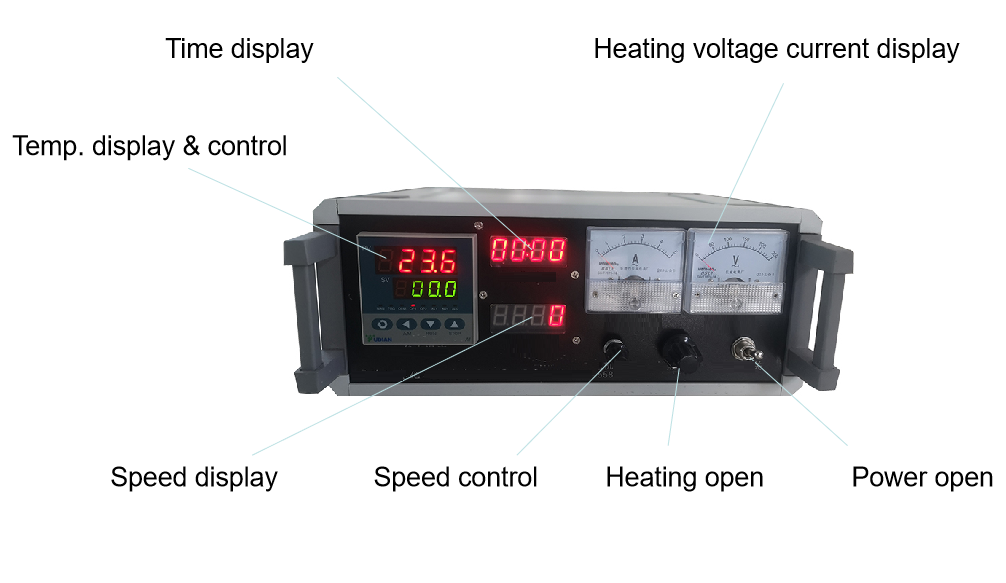

Control panel	Temperature, time and heating voltage display
	Temperature adjustment control, accuracy±1 ℃
	Stirring speed display and control
Standard fittings	Pressure Gage; Thermocouple; Internal Stirring System
	Liquid inlet and gas inlet with needle valve；Gas Release Valve
	Dip Tube; Safety Rupture Disc; Cooling Coil
