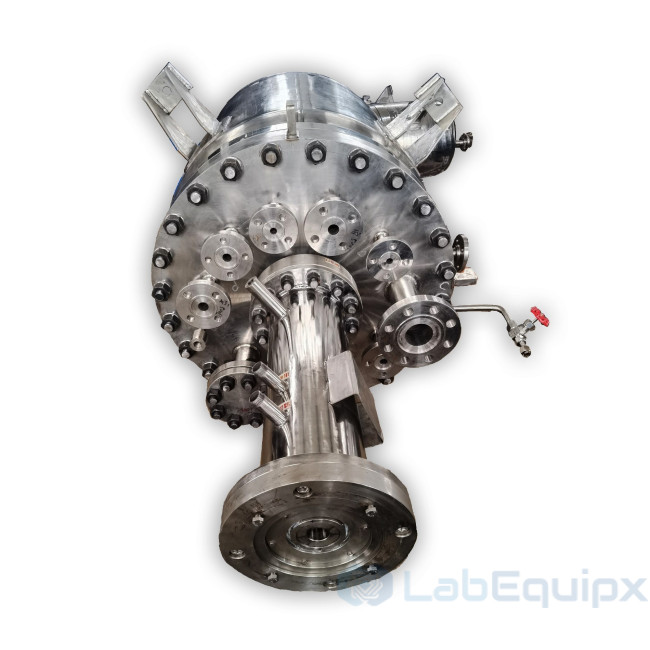

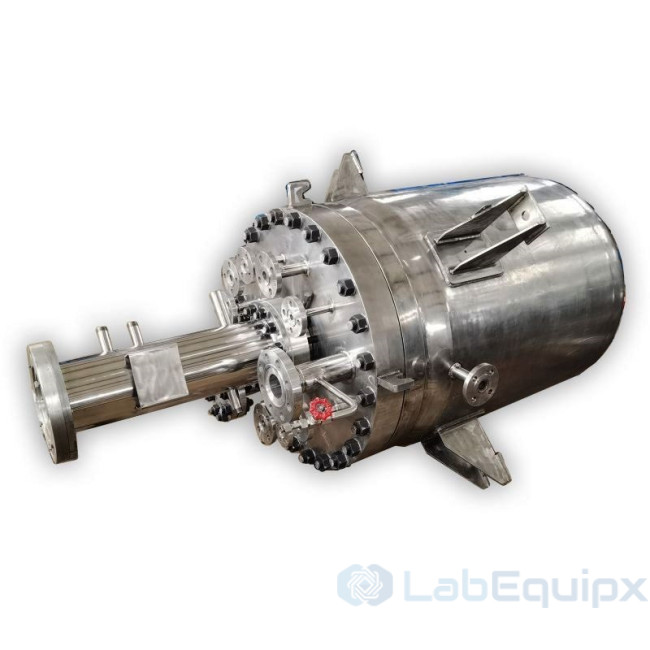

Pharmaceutical Stainless Steel Pressure Reactor & Vessel LEPSSPRV
Pharmaceutical Stainless Steel Pressure Reactor & Vessel LEPSSPRV - this series pilot reactor is specially used in high pressure process and hydrogenation process. The magnetic coupling drive (static seal), no leakage, smooth run, low noise and easy operation, which is widely used for high pressure, high vacuum and high temperature condition.
Most of LEPSSPRV reactors adopt flat covers, especially for the lab and pilot scale production, because of its good sealing, easy operating and cleaning, which is suitable for the high pressure and high temperature conditions.
Product Feature
- Floor stands or moveable cart type.
- Capacity volume: 100 liters to 500 liters .
- Max pressure: 300 bar; Max temperature up to 300 ℃
- Low to high torque magnetic couplings: static seal with no leakage.
- Lifting device available for reactor head rising and lowering.
- Top Head type: Flat cover; Bottom head type: Ellipsoidal type.
- Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
- Monitor and control: Temperature, pressure, motor speed, operating time, etc.
- Customized according to customers requirement.
Standard Specification
Model No.
LEPSSPRV-100 LEPSSPRV-200 LEPSSPRV-300 LEPSSPRV-500 Nominal Capacity (L)
100 200 300 500 Design Pressure (bar)
-0.1-300 bar customized Material
SS304 or SS316 wetted parts
Design Temperature (℃)
0~350 customized Stirring Speed (r/min)
0-500 0-450 0-450 0-450 Motor Power (kW)
2.2 2.2 4 5.5 Heating Power (kW)
According to the working temperature
Heating Method
Standard electric heating (Thermal oil, steam, far infrared heating available)

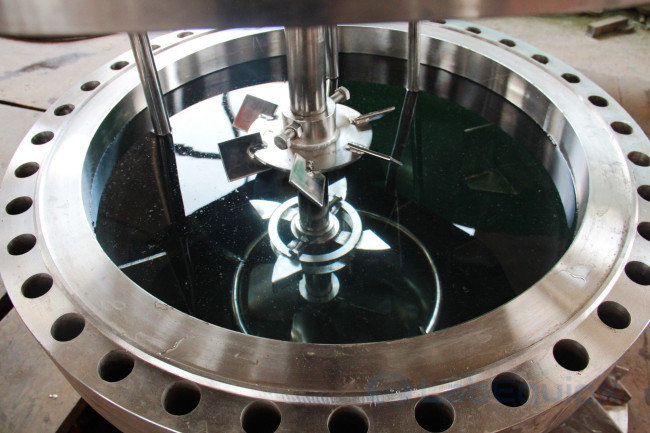

Head type Flat cover or elliptical flange type Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc Cooling type (Optional) Spiral cooling cools with cooling water Discharging type (Optional) Discharging from bottom or above. Control panel
PID temperature display and control, accuracy±1 ℃;stirring speed display; Operation time display; Heating voltage and current display
Opening port of head
(Optional)
Pressure gauge, Safety valve port; Temp. measuring port;
Gas and liquid port; Dip tube; Vent port; Solid charging port;
Cooling coil inlet and outler port;
Note:
- Customer is advised to select best suited options for most optimized price & delivery.
- Customization of volume, material, pressure, temperature etc. may be possible on request.
| Model | LEPSSPRV |
| Brand | LabEquipx |
