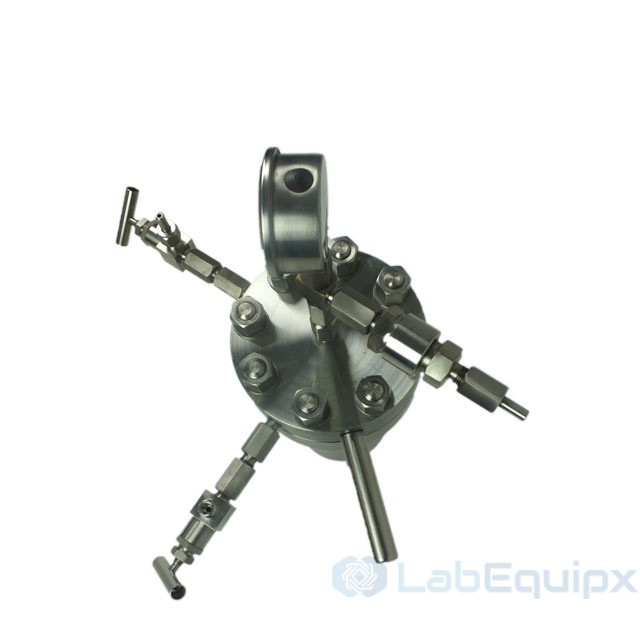

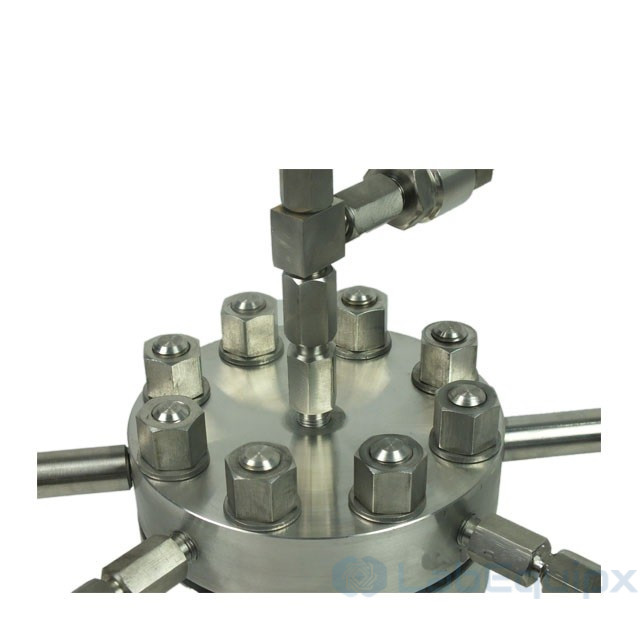

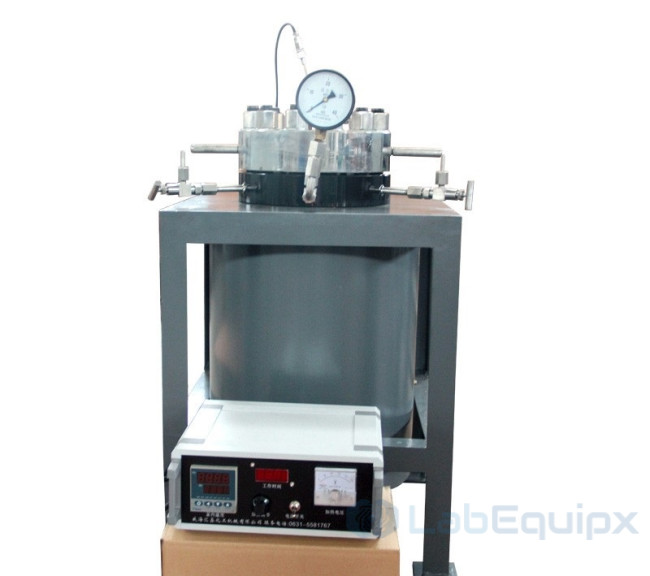

Non Stirred High Pressure Lab Autoclave Vessels LENSHPLAV
Non Stirred High Pressure Lab Autoclave Vessels LENSHPLAV - this series autoclave is a kind of reactor without agitator, working in high pressure and temperature condistions, which is widly used in reaction of chemical, sulfide, fluoride, oxidation and static sealing, polymer composite materials and others.
Application:
- For Gas / Liquid storage / charging under pressure
- For Acid digestion
- For static, loop, electrochemical, corrosion studies
- For supercritical fluid extraction
- For hydrogen induced disbonding tests
- For soaking of diamonds / precious stones
Product features
- Non Stirred device
- The capacity volume: 500ml to 20 liters.
- Max pressure: 300 bar; Max temperature up to 350 ℃
- Available material：SS304, SS316, PTFE, Titanium.

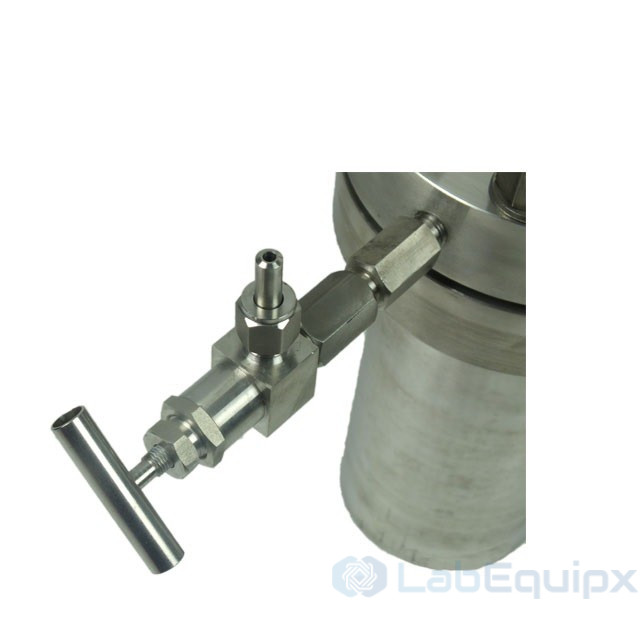

- Port: Pressure gage, Various functional needle valve.
- Safety Device (Blasting Disc) on Security Blasting Port.
- Customized according to customers requirement.
Standard specifications
Model No. LENSHPLAV-0.5 LENSHPLAV-1 LENSHPLAV-2 LENSHPLAV-3 LENSHPLAV-5 LENSHPLAV-10 LENSHPLAV-20 Nominal Capacity （L） 0.5 1 2 3 5 10 20 Design Pressure （MPa） 10 10 10 10 10 10 10 Design Temperature（℃） 350 350 350 350 350 350 350 Material Standard SS304, SS316 Opening port Needle Valve: Gas inlet and outlet; Liquid inlet and outlet Pressure gauge; Security blasting port Notes: Specific products can be customized according to customer needs.
Product details
Stucture drawings
| Model | LENSHPLAV |
| Brand | LabEquipx |
