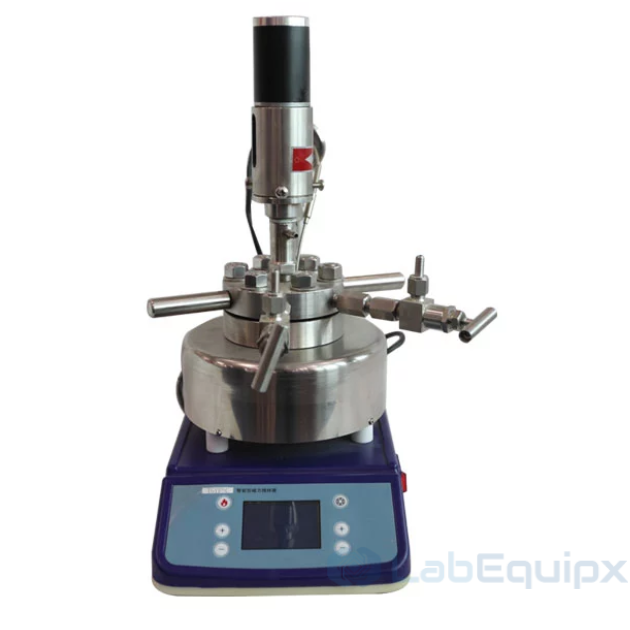

Mini Stirred High Pressure Laboratory Autoclave Reactor LEMSHPLAR
Mini Stirred High Pressure Laboratory Autoclave Reactor LEMSHPLAR - these small pressure vessels, non-stirred pressure reactors and pressure reactor vessels can be designed upto 350 bar and 250°C. The material of PTFE, Hastelloy C, Inconel, Titanium, Zirconium, etc are optional.
Appication:
Micro reactor has been widely used in chemical, chemical, pharmaceutical, polymer, metallurgy and environmental protection. Such as catalytic hydrogenation, polymerization, hydrometallurgy, esterification, spices synthesis, supercritical reaction:
- For Gas / Liquid storage / charging under pressure
- For Acid digestion
- For static, loop, electrochemical, corrosion studies
- For supercritical fluid extraction
- For hydrogen induced disbonding tests
- For soaking of diamonds / precious stones
Product paramenters
Model LEMSHPLAR-50 LEMSHPLAR-100 LEMSHPLAR-250 LEMSHPLAR-500 Material capacity 50ml 100ml 250ml 500ml Max temperature RT-350℃ Operate pressure Standard 100bar; Max pressure up to 350bar Heating mode Module heating The heating power 600W 600W 1.5KW 2.0KW Stirring speed 0-1500rpm Stirring method Top mechanical magnetic stirring The stirring power 40W 40W 40W 80W MOC SS304L (standard); (SS316L,Alloy TA2, ALLOY C-276, Nickel , Zirconium PTFE liner are optional) Others Two ports(Inlet and outlet port); pressure gauge; temp. Measure port; Glass window; Feeding valve(optional); sampling valve(Optional) Remarks:
- Max volume 2000ml could be customized.
- The maximum operating temperature of High Pressure Reactor is 350℃, use corrosive medium to do reaction, PTFE inner is optional, but its high temperature resistance is 180℃,so if the corrosive medium temperature is over 180℃, please choose other material reactors.
- High Pressure Reactor adopt module heating method, which is quick heating and precise temperature control. Series all are internal magnetic stirring, when magnetism arrive 300°, degaussing phenomenon will happen, so if operating in over 300° condition, please choose other Series High Pressure Reactor.
| Model | LEMSHPLAR |
| Brand | LabEquipx |
