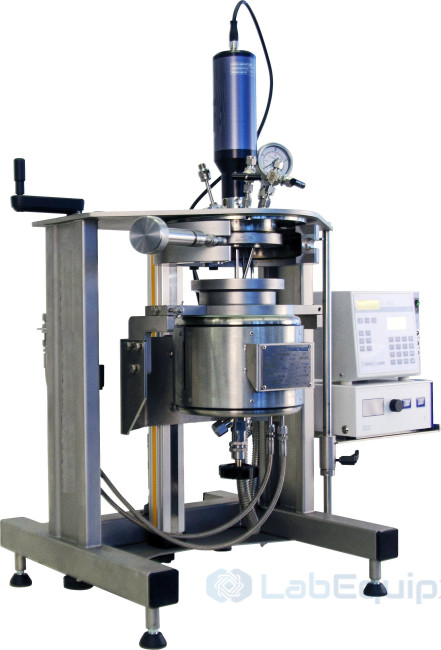

Midiclave High Pressure Reactor LEMHPR

Features:

• Midiclave - high temperature high pressure reactor
• Laboratory high pressure reactor system
• Reactor volume: 0.1 - 1.0 liter
• Pressure: -1 (FV) to +200 bar
• Temperature: -20 °C to +300 °C
• Material: stainless steel, Hastelloy®
• Other materials, pressures & temperatures are available
• This high pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.

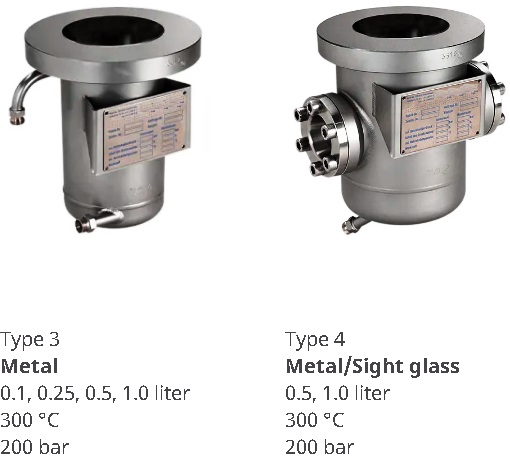

• The stainless steel or Hastelloy reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses.

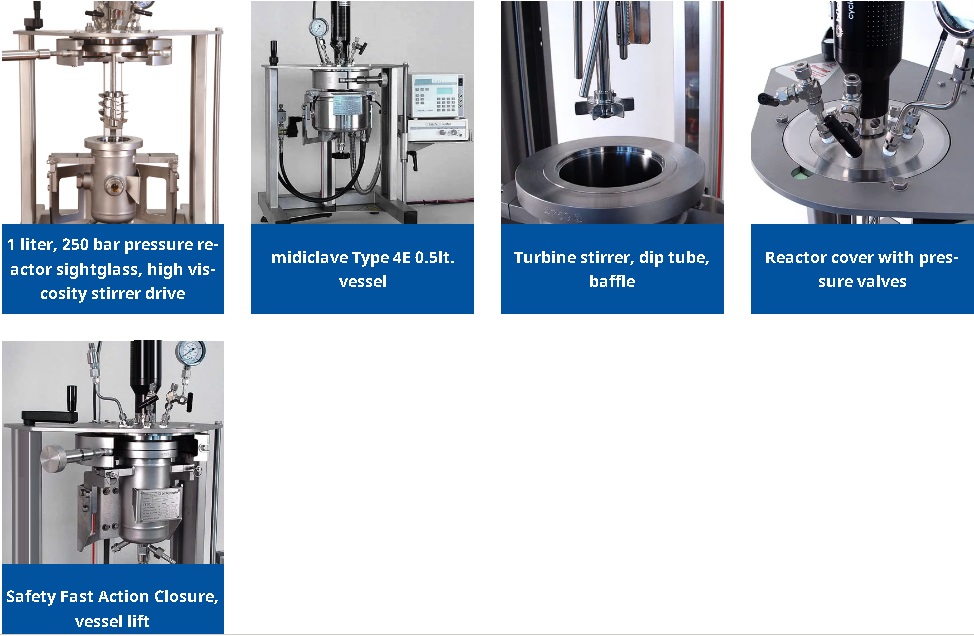

• Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer. The fast action closure and vessel lift makes changing vessels quick and easy without the use of tools.
• The modular setup of the midiclave system allows changing or upgrading for new tasks at any time.
• A wide range of accessories for feeding of liquids, solids, gas, a fast action closure device, reactor lift and others like catalyst baskets etc. are available – talk to us to define the right setup for your specific need.
