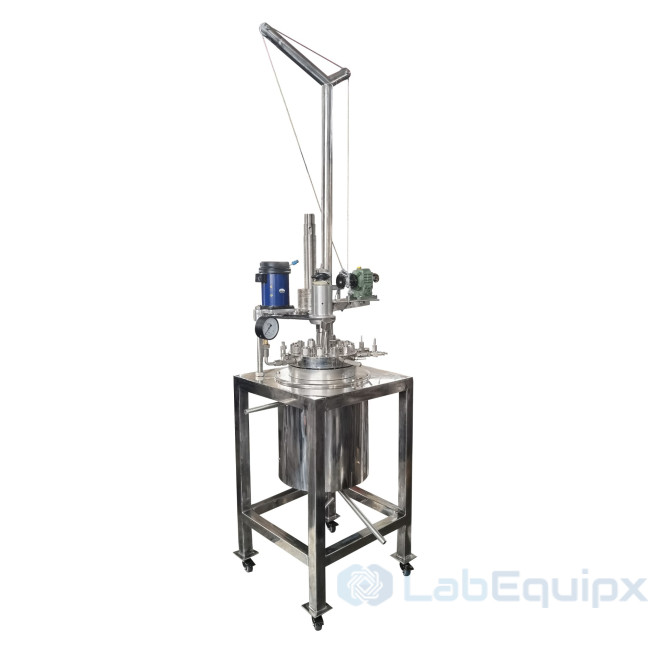

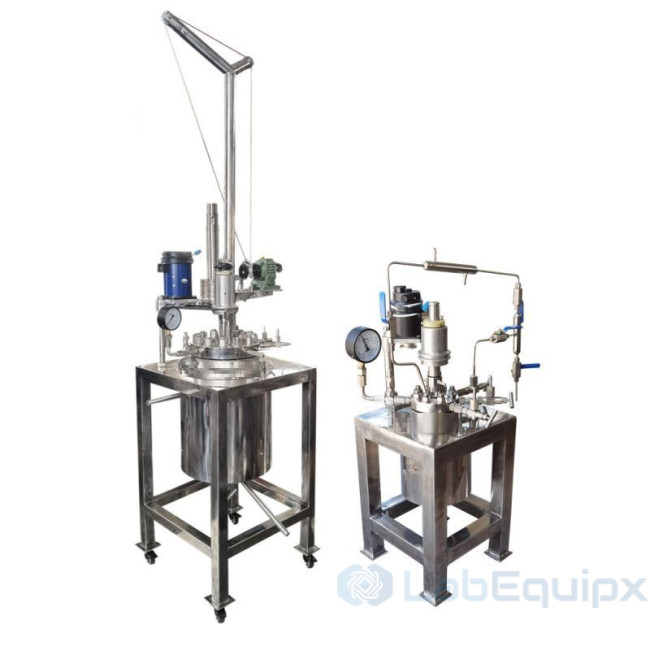

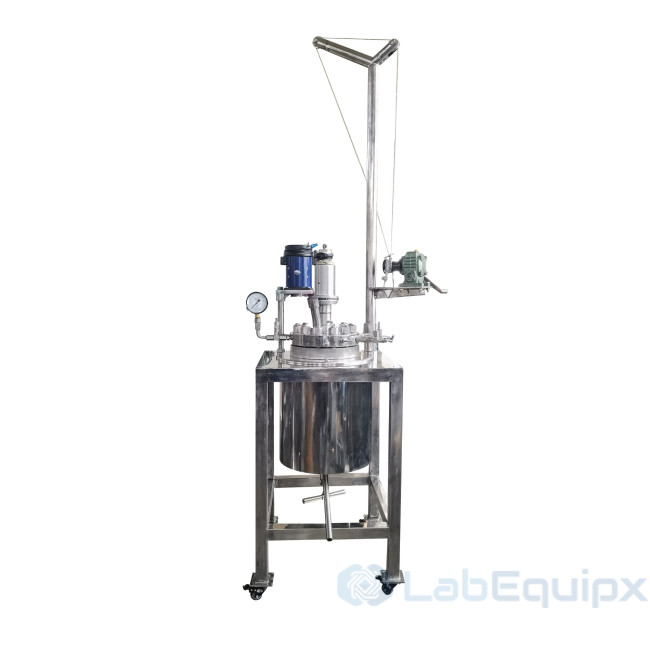

      • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR

      • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR - this series is widely used in scale up and small-scale production

        For the design of pilot-scale autoclave and detachable head, the head and container are too heavy to be lifted manually. Therefore, the design with chain pulley support installed can lift the head with minimal effort. When manual operation is still laborious, it can also adopt electric lifting or even hydraulic lifting.

        Application:

        • Chemical development
        • Process optimization
        • Process development
        • Petrochemical research
        • Biomass research
        • Biopolymer research
        • Biorefinery research
        • Biofuels research
        • Corrosion test
        • Petrochemical development
        • Corrosion test
        • Scale-up
        • Pilot-Plant
        • Mini-plant
        • Small-scale production

      • Product features

        • Floor stands or moveable cart type.
        • Capacity volume： 10 liters to 50 liters.
        • Pressure: -1~300 bar; Max temperature up to 350 ℃
        • Low to high torque magnetic couplings: static seal with no leakage.
        • Chain pulley lifting device for reactor head rising and lowering (Electric lifting and hydraulic lifting available）
        • Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
        • Monitor and control: Temperature, pressure, motor speed, operating time, etc.
        • Customized according to customers requirement.

        Standard specifications

        Model LEMLCLHPCR-I0 LEMLCLHPCR-20 LEMLCLHPCR-30 LEMLCLHPCR-50
        Nominal Capacity （L） 10 20 30 50
        Design Pressure （bar） 100 100 100 100
        Material SS304
        Design Temperature (℃) 350
        Stirring Speed （r/min） 0-750 0-750 0-500 0-500
        Motor Power （kW） 0.6 1.1 1.5 1.5
        Heating Power （kW） 4 9 9 15
        Heating Method Standard electric heating (Thermal oil, steam, far infrared heating available）
        Head type Standard Flat cover type(Ellipsoidal flange, Conical type available)
        Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc
        Cooling type (Optional) Spiral cooling cools with cooling water
        Discharging type (Optional) Discharging from bottom or above.
        Control panel PID temperature display and control, accuracy±1 ℃；stirring speed display；
        Operation time display; Heating voltage and current display
        Opening port of head (Optional)Pressure gauge, Safety valve port; Temp. measuring port;
        Gas and liquid port; Dip tube; Vent port; Solid charging port;
        Cooling coil inlet and outler port

        Note

        • The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.

        Product details

        Structure drawings

        Internal components

        • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR
        • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR
        • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR
        • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR
      • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR
      • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR
      • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR
      • Manual Lifting Customized Laboratory High Pressure Catalytic Reactor LEMLCLHPCR
        ModelLEMLCLHPCR
        BrandLabEquipx
