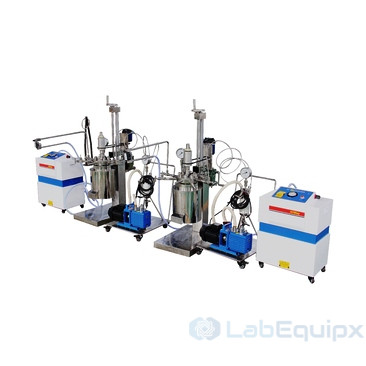

Lab Vaccum Reactor with Vacuum Pump & Compresser LELVRVPC

Lab Vaccum Reactor with Vacuum Pump & Compresser LELVRVPC: Lab reactor with vacuum pump/Lab reactor with compresser/Lab high pressure reactor/Lab chemical reactor/Reaction system/Stainless steel reactor.

Flat cover lid: Manual lifting and lowering
Shaft seal: Magnetic coupling drive Reactor vessel: Manual 180° rotate for discharge
Other devices: Euipped with vacuum pump, buffer tank, gas compresser
PID temperature control with 485 software, connect with PC
Temperature & pressure curve line data record.
Reactor volume: 0.1 - 5.0 liter
Pressure: -1 (FV) to +100 bar Temperature: 20 °C to +300 °C
Material: Stainless steel 304/316, Hastelloy C276, Titanium
Euipped with vacuum pump, buffer tank, compresser

Other materials, pressures & temperatures are available.

Model No.	LELVRVPC-0.5	LELVRVPC-1	LELVRVPC-2	LELVRVPC-3	LELVRVPC-5
Nominal Capacity (L)	0.5	1	2	3	5
Working Pressure (MPa)	10	10	10	10	10
Working Temperature (℃)	350	350	350	350	350
Stirring Speed (r/min)	0-1500	0-1500	0-1500	0-1500	0-1500
Motor power (kW)	0.15	0.2	0.2	0.2	0.6
Heating Power (kW)	1	2	2	3	4
Material	SS304 or SS316
Heating Method	General electric heating
Cooling Method	Internal spiral coils
Charging Method	Charging from above
Stirring type	Propeller, paddle type, anchor type or customized
Control panel	Temperature, time and heating voltage display Temperature adjustment control, accuracy±1 ℃ Stirring speed display and control
Standard fittings	Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve;Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil

Model	LELVRVPC
Brand	LabEquipx
