Lab Pressure Reactor with External Condenser, Relux and Receiver LELPRECRR

Lab Pressure Reactor with External Condenser, Relux and Receiver LELPRECRR - two styles of condensers for attachment to the head of a stirred reactor or pressure vessel. These can be made in various sizes to match the size of the reactor.

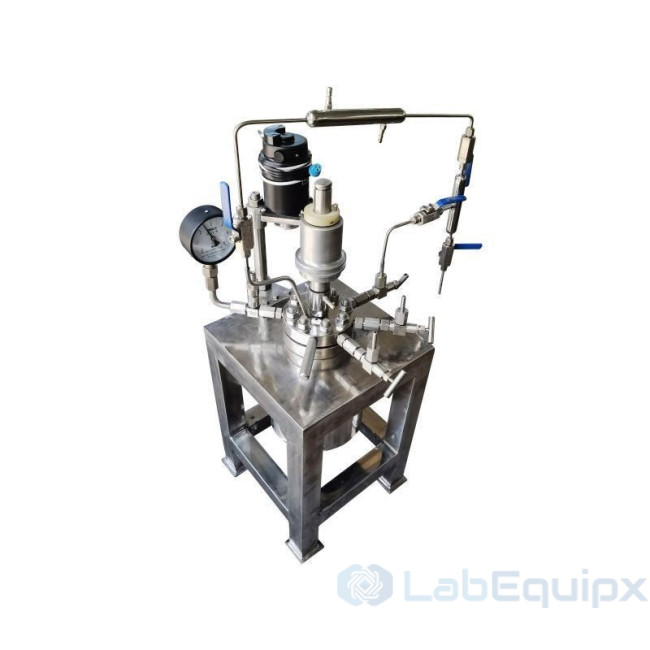

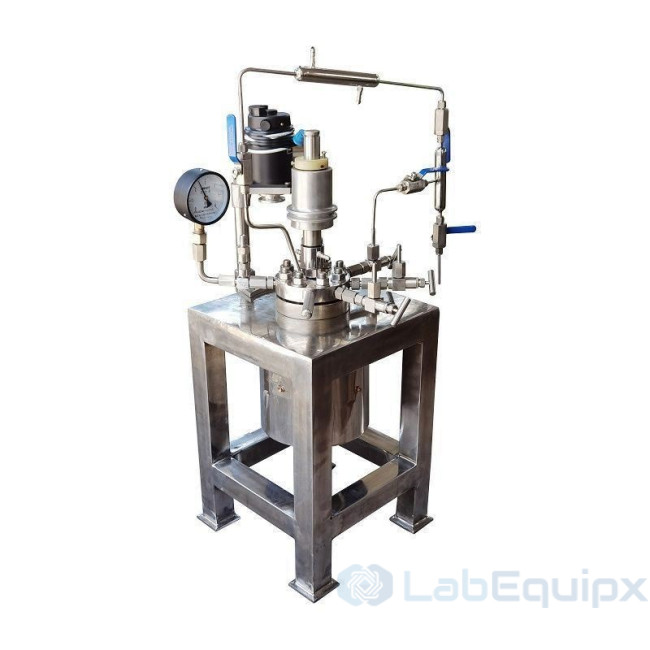

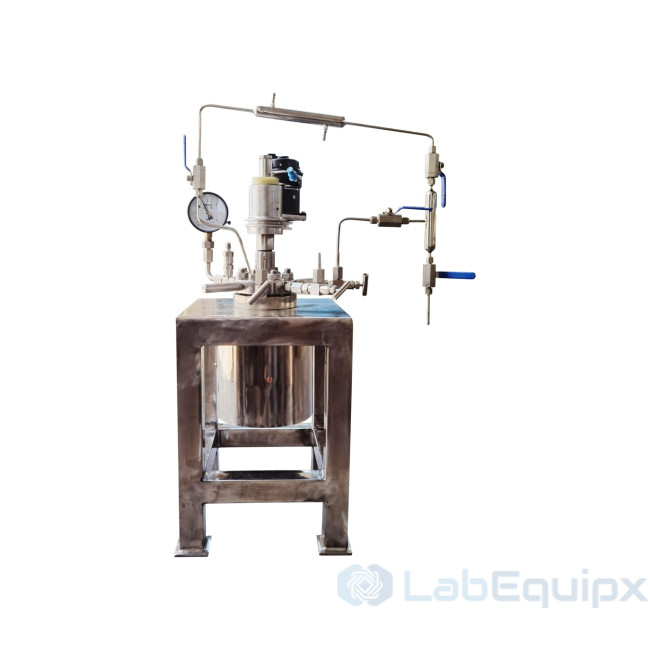

- Reflux model: The external condenser consists of a tube line connect to the vapor outlet port of the high pressure reactor, helping the vapor to condense, then the oulet port of the condenser connect the reflux port of the cover of the reactor. Condensed vapors are returned directly to the vessel. This system helps the mixture to fully react until it is completely reacted.

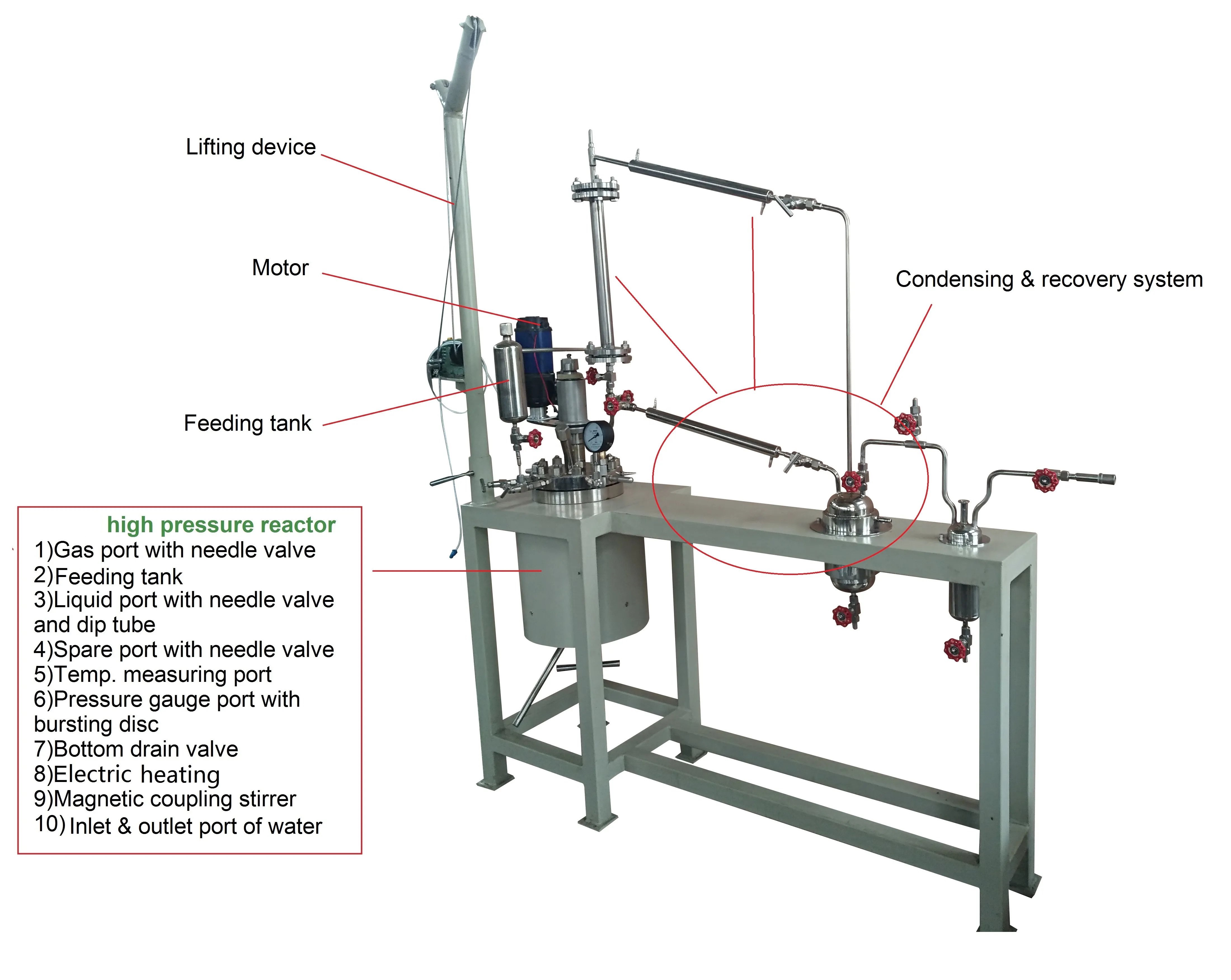

- Receiving model: This series of reactor system includes the laboratory high pressure reactor, equipped with multi-stage condenser and recovery tank, which can be used in the application of vapor condensation recovery. Condensed vapors from the condenser, can be condensed and collected in the receiver, from which it can be withdrawn through a bottom valve.
Appication: Polymerization reaction; Vacuum distillation; Solvent recovery; Laboratory test.

Floor stands or moveable cart type.
Laboratory autoclaves with 100 ml to 50 liters volume.
Max pressure: 300 bar; Max temperature up to 500 ℃
Low to high torque magnetic couplings: static seal with no leakage.
Reflux model:Equipped with external condenser, reflux tube line.
Receiving model:Equipped with external condenser, receiving tank.
Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel
Smooth run, low noise and easy operation.
Monitor and control: Temperature, pressure, motor speed, working time, etc
Safety Device (Blasting Disc) on Security Blasting Port.
Customized according to customers requirement.

Type	LELPRECRR-0.1~1	LELPRECRR-1~10	LELPRECRR-10~25	LELPRECRR-25~50
Volume(L)	0.1~1	1~10	10~25	25~50
Working pressure(MPa)	-0.1~30	-0.1~30	-0.1~30	-0.1~30
Motor power(W)	40~80	80~200	300~750	1100
Heating power(KW)	0.1~1	1~3	3~6	4~9
Working temperature(°C)	-196~500
Stirring speed(r/min)	0~1500
Heating type	Electric heating, thermal oil heating available

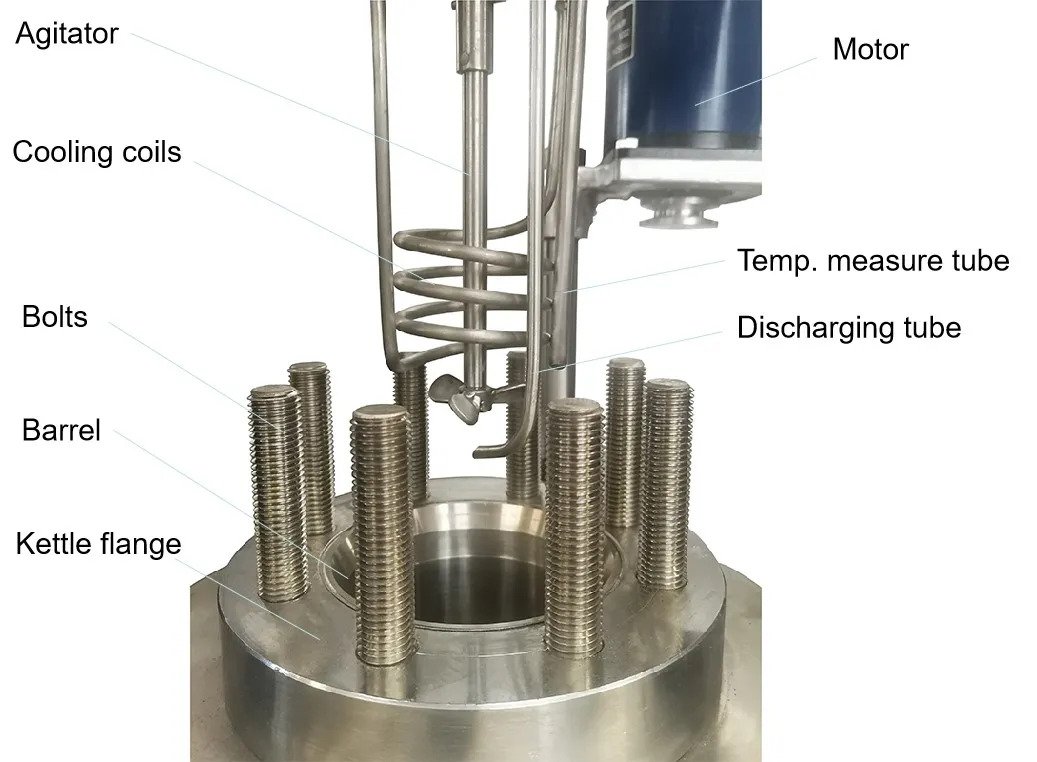

Cooling Method	Spiral coils(Single coils, serpentine coils available)
Charging type	Charging from above, discharging from bottom.
Stirring type	Customized anchor-type, frame-type, propeller type, turbine-type, scraper-type or paddle-type...etc
Seal type	Magnetic seal, mechanical seal,
Motor	General DC motor, DC servomotor or explosion-proof motor according to customers’ requirements.

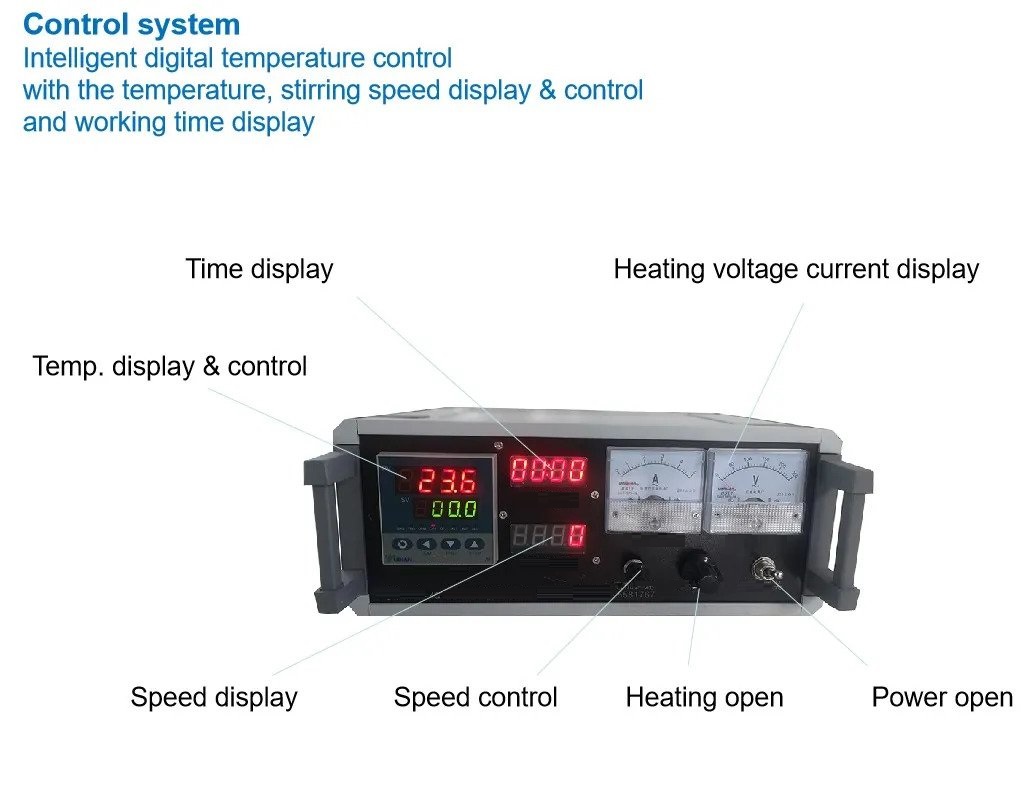

Controller Device	Temperature, time and heating voltage display Temperature adjustment control, accuracy±1 ℃ Stirring speed display and control,Others
Standard fittings	Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve;Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil
