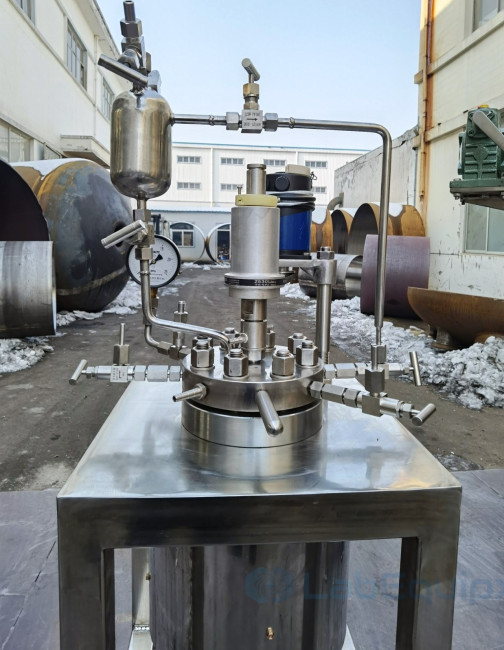

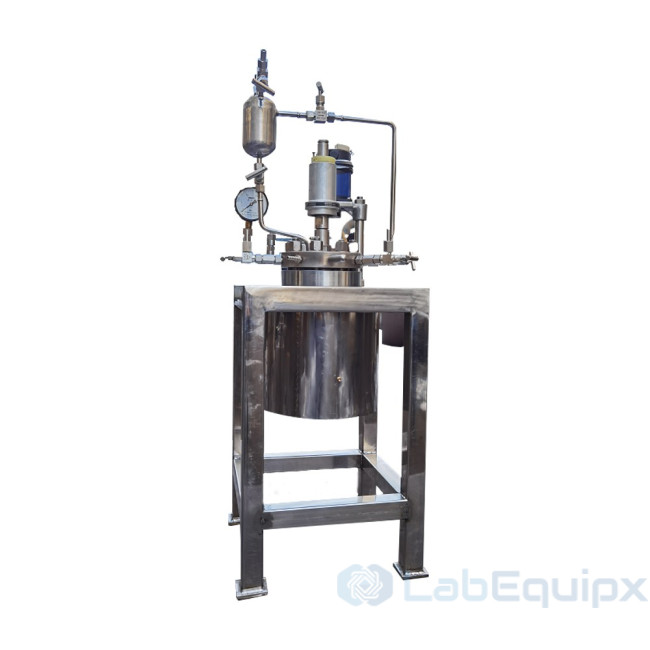

Lab Pressure Autoclave Reactors with Constant Pressure Feeding LELPARCPF

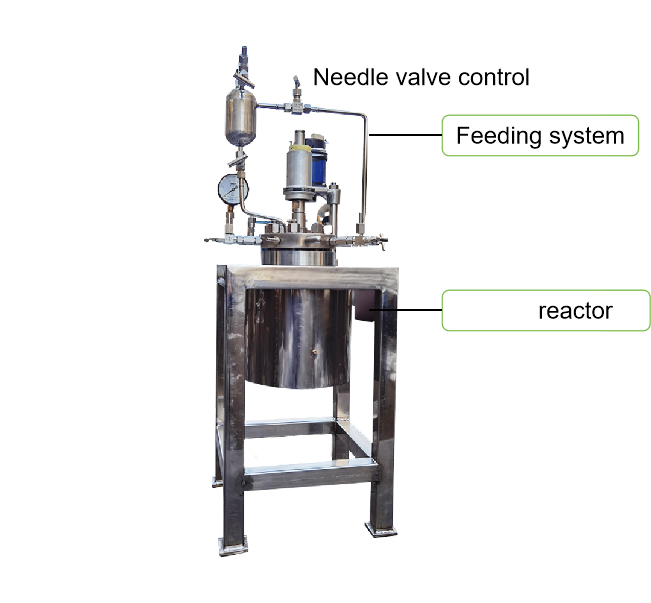

Lab Pressure Autoclave Reactors with Constant Pressure Feeding LELPARCPF - stable feeding under constant pressure. Continuous feeding and reaction can be realized without breaking the pressure environment. The constant feeding system consists of a recycle tube line, feeding tank, liquid control needle valve and vent valve.
Application: Rearch/Lab, High pressure, high vacuum, high temperature condition. Chemical/Pharmaceutical, Syntheses, Reactor systems, Low temperature reactions.
Features
- Floor stands or moveable cart type.
- Laboratory autoclaves with 100 ml to 50 liters volume.
- Max pressure: 300 bar; Max temperature up to 500 ℃
- Low to high torque magnetic couplings: static seal with no leakage.
- Continuous feeding system.
- Reflux model:Equipped with external condenser, reflux tube line.
- Receiving model:Equipped with external condenser, receiving tank.
- Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel
- Smooth run, low noise and easy operation.
- Monitor and control: Temperature, pressure, motor speed, working time, etc
- Safety Device (Blasting Disc) on Security Blasting Port.

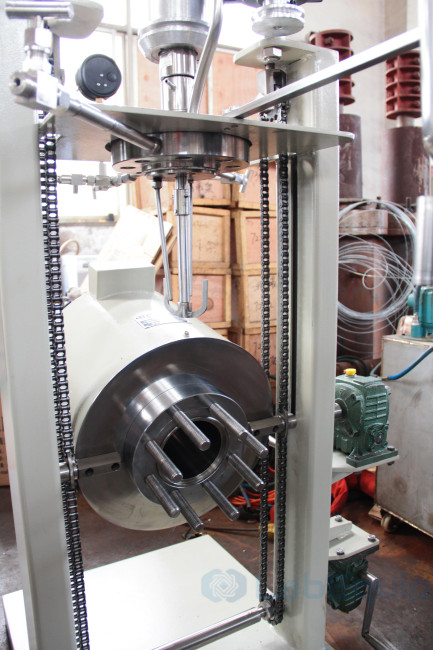

- Vessel removable & tilt function.
- The kettle vessel can be lowered and tilted to discharge materials.

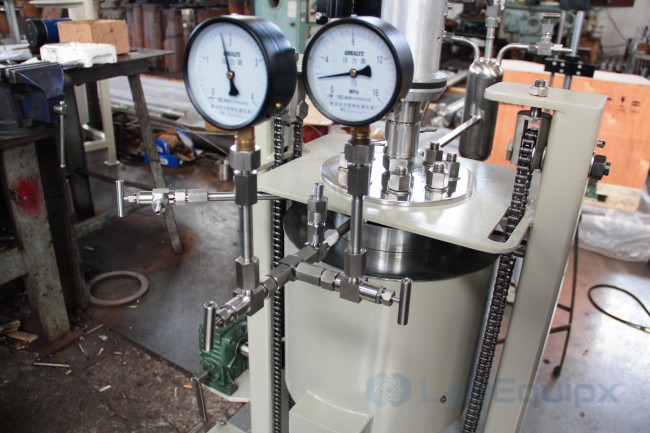

- Pressure gauge, safety device with bursting disc, safety valve and complete test report.
- Customized according to customer process requirements to ensure high efficiency, beauty and high service life.
Continuous feeding lab high pressure thermochemical reactor system can also set the following options：
- Quick open design（split clamp with clamp bolts）
- Floor stand or moveable cart design
- Direct drive or belt drive optional

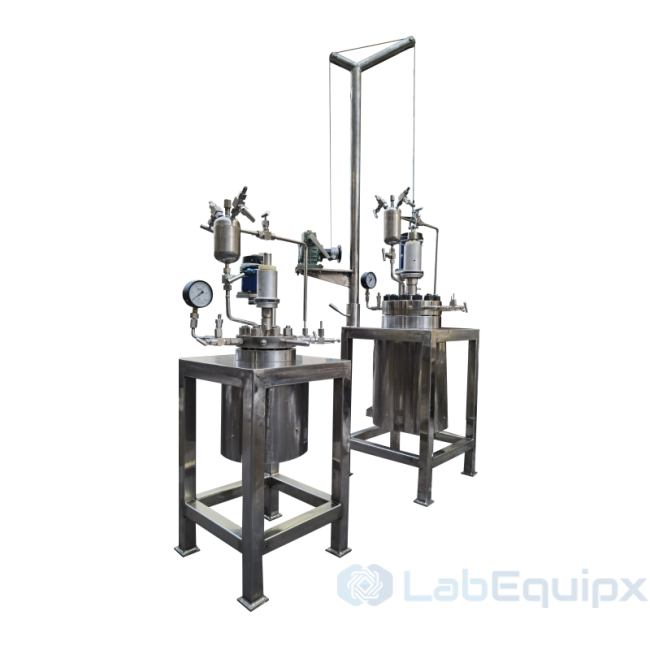

- Reactor lift / lowering / Tilting device
- Magnetic and mechanical seal
- Vacuum pump, Heating & cooling circulator, PLC control and others
- Various impeller type available for mixing mission
- Various Anti-corrosion alloy material available
- Special alloy available: Titanium, Nickel, Hastelloy, Zirconium
- Feeding system: Continuous and stable feeding under high pressure
- Magnetic couplings: Static seal with no leakage.
Internal Drawings

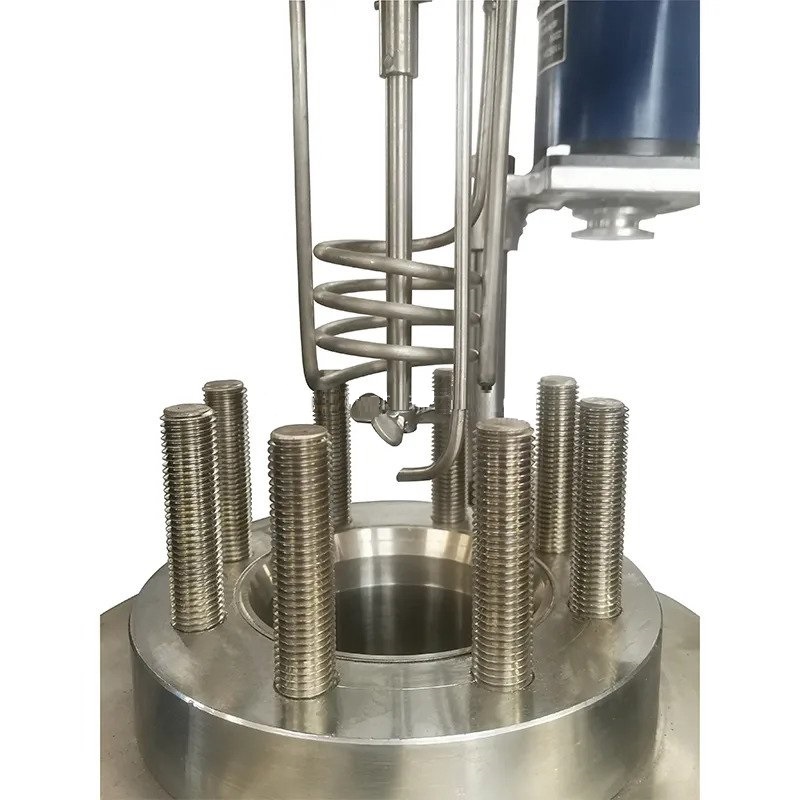

- Internal spiral coils: Quick coolings for material
- Dip tupe device: Used for up discharging

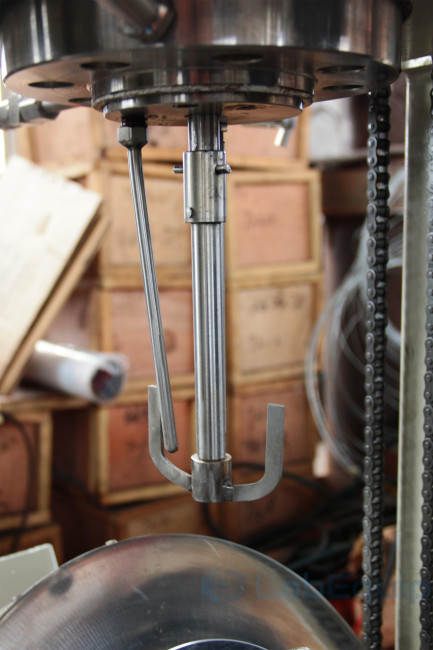

- Various impeller available: Propeller, turbine, anchor, others

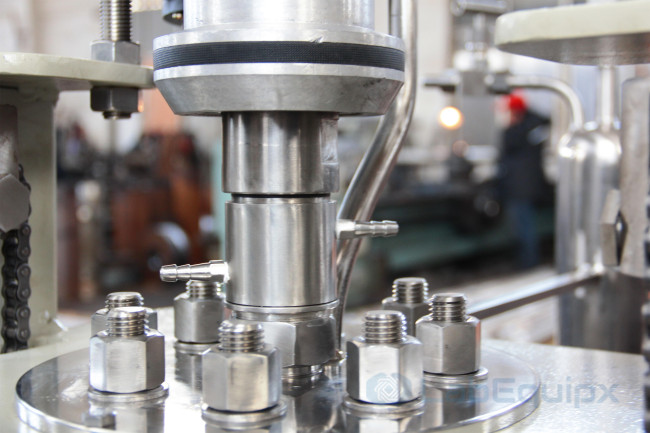

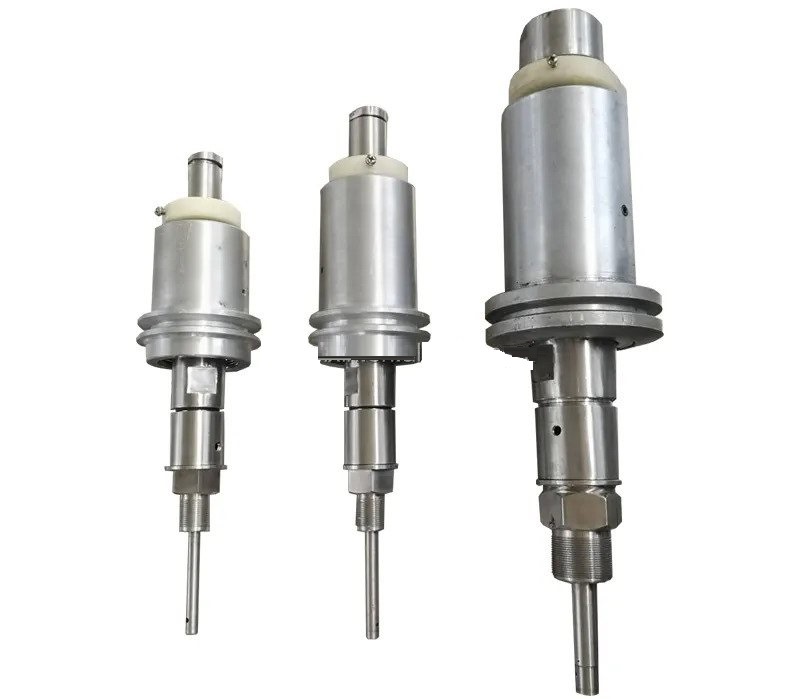

Magnetic Stirrer
- 100% Sealing. Zero leakage.
- Zero emission of hazardous fluids.
- Suitable for pressure fluctuations.
- Various capacities available.
- Compact Design.

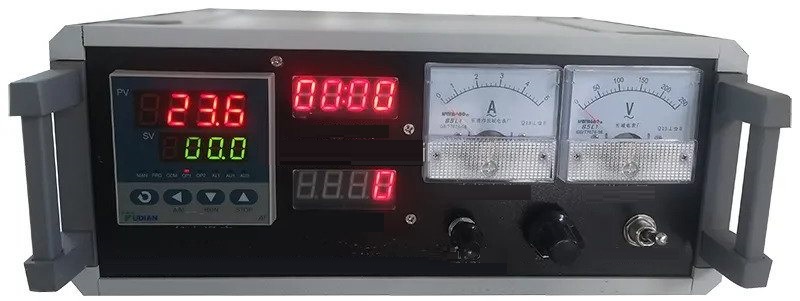

Control system
- Intelligent digital temperature control
- with the temperature, stirring speed display & control and working time display
- Size Information
Type LELPARCPF-0.1~1 LELPARCPF-1~10 LELPARCPF-10~25 LELPARCPF-25~50 Volume(L) 0.1~1 1~10 10~25 25~50 Working pressure(MPa) -0.1~30 -0.1~30 -0.1~30 -0.1~30 Motor power(W) 40~80 80~200 300~750 1100 Heating power(KW) 0.1~1 1~3 3~6 4~9 Working temperature(°C) -196~500 Stirring speed(r/min) 0~1500 Heating type Electric heating, thermal oil heating available Cooling Method Spiral coils(Single coils, serpentine coils available) Charging type Charging from above, discharging from bottom. Stirring type Customized anchor-type, frame-type, propeller type, turbine-type, scraper-type or paddle-type...etc Seal type Magnetic seal, mechanical seal, Motor General DC motor, DC servomotor or explosion-proof motor according to customers’ requirements. Controller Device Temperature, time and heating voltage display Temperature adjustment control, accuracy±1 ℃ Stirring speed display and control,Others Standard fittings Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve;Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil
| Model | LELPARCPF |
| Brand | LabEquipx |
