LELHPAR

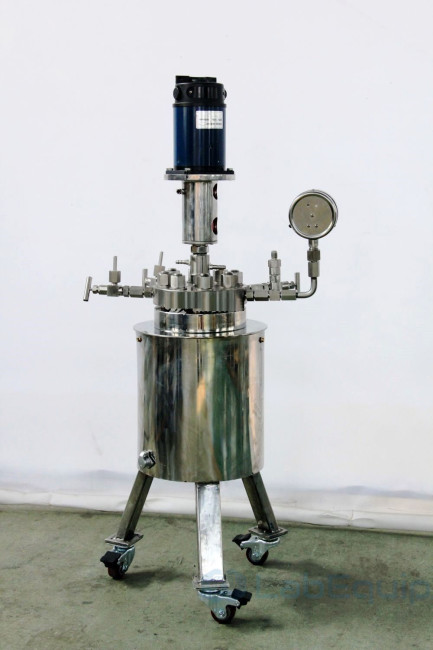

Lab High Pressure Autoclave Reactors LELHPAR
Lab High Pressure Autoclave Reactors LELHPAR are used for various applications under pressure including, hydrogenation, polymerization, catalyst screening and corrosion testing.
These small pressure vessels, non-stirred pressure reactors and pressure reactor vessels can be designed upto 350 bar and 500°C. Can also be made out of Hastelloy C, Inconel, Titanium, Zirconium, etc.
Product features

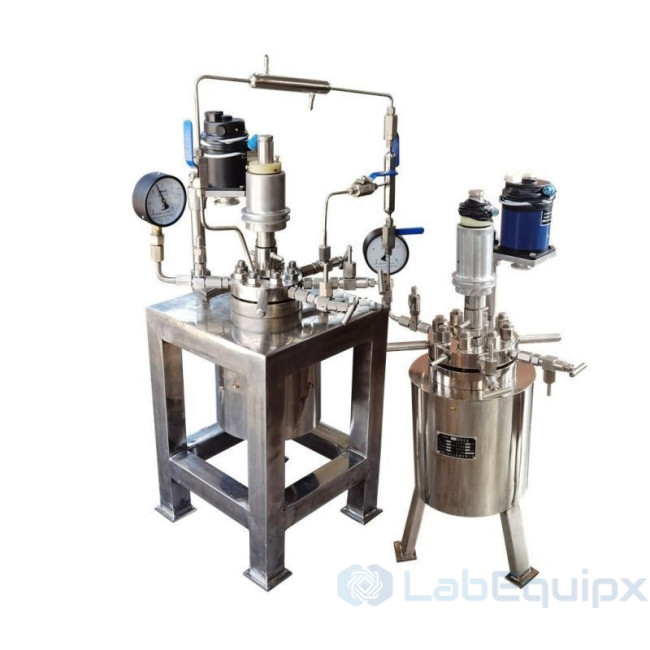

- Floor stands or moveable cart type.
- Laboratory autoclaves with 500 ml to 5 liters volume.
- Max pressure: 300 bar; Max temperature up to 500 ℃.
- Low to high torque magnetic couplings: static seal with no leakage.
- Direct drive type between magnetic couplings and motor.
- Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel
- Smooth run, beautiful appearence, low noise and easy operation.
- Monitor and control: PID Temperature, pressure, motor speed, gas / liquid flow, level, etc
- Safety Device (Blasting Disc) on Security Blasting Port.
- Customized according to customers requirement.
Standard specifications
Model LELHPAR-0.5 LELHPAR-1 LELHPAR-2 LELHPAR-3 LELHPAR-5 Nominal Capacity （L） 0.5 1 2 3 5 Working Pressure （MPa） 10 10 10 10 10 Working Temperature（℃） 350 350 350 350 350 Stirring Speed （r/min） 0-1500 0-1500 0-1500 0-1500 0-1500 Motor power （kW） 0.15 0.2 0.2 0.2 0.6 Heating Power （kW） 1 2 2 3 4 Heating Method General electric heating(water recycling, thermal oil heating available) General electric heating(water recycling, thermal oil heating available) General electric heating(water recycling, thermal oil heating available) General electric heating(water recycling, thermal oil heating available) General electric heating(water recycling, thermal oil heating available) Cooling Method Spiral coils（Single coils, serpentine coils available） Spiral coils（Single coils, serpentine coils available） Spiral coils（Single coils, serpentine coils available） Spiral coils（Single coils, serpentine coils available） Spiral coils（Single coils, serpentine coils available） Charging Method Charging from above Charging from above Charging from above Charging from above Charging from above Stirring type Propeller, paddle type, anchor type or customized Propeller, paddle type, anchor type or customized Propeller, paddle type, anchor type or customized Propeller, paddle type, anchor type or customized Propeller, paddle type, anchor type or customized Control panel Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control Temperature, time and heating voltage display; Temperature adjustment control, accuracy±1 ℃; Stirring speed display and control Standard fittings Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve；Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve；Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve；Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve；Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve；Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil Product details

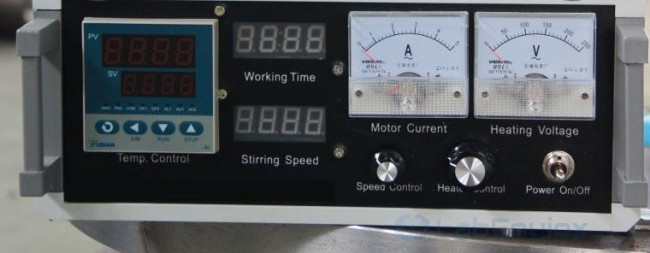

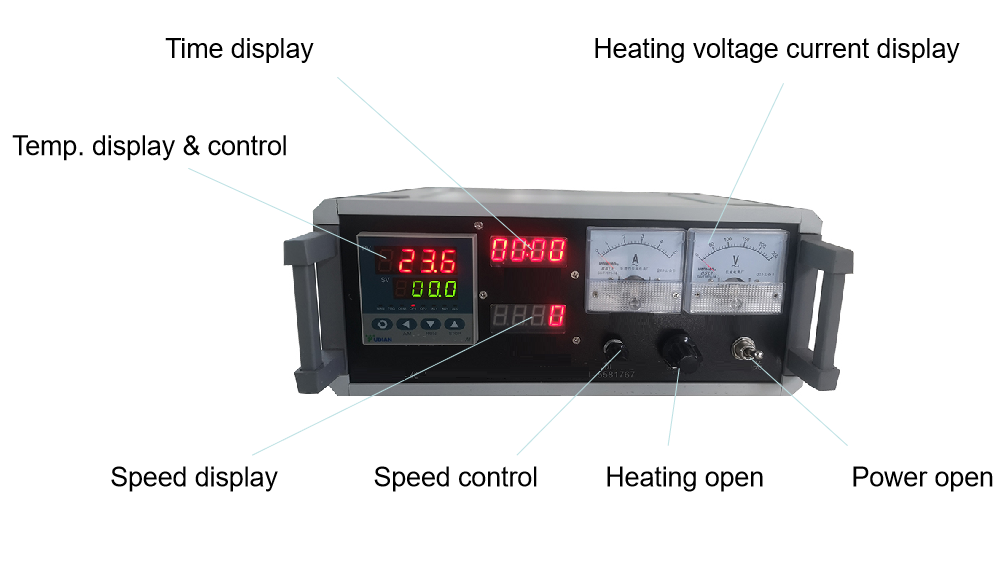

Control system
Internal components
| Model | LELHPAR |
| Brand | LabEquipx |
