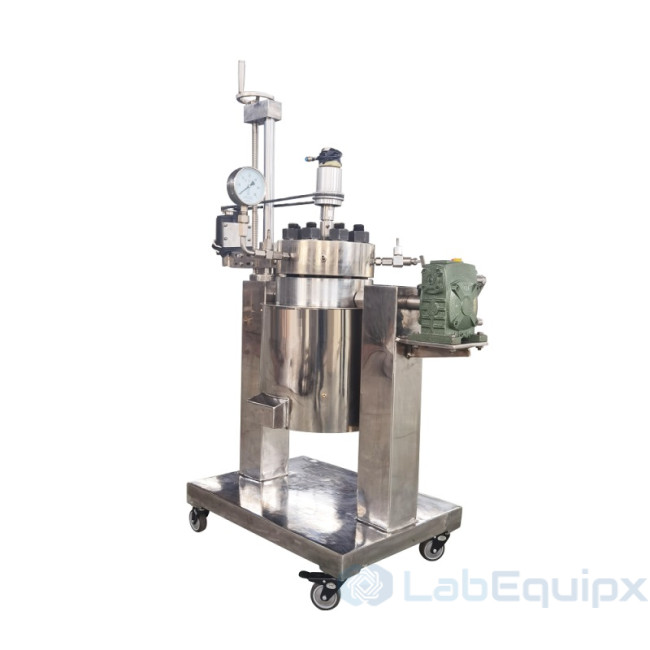

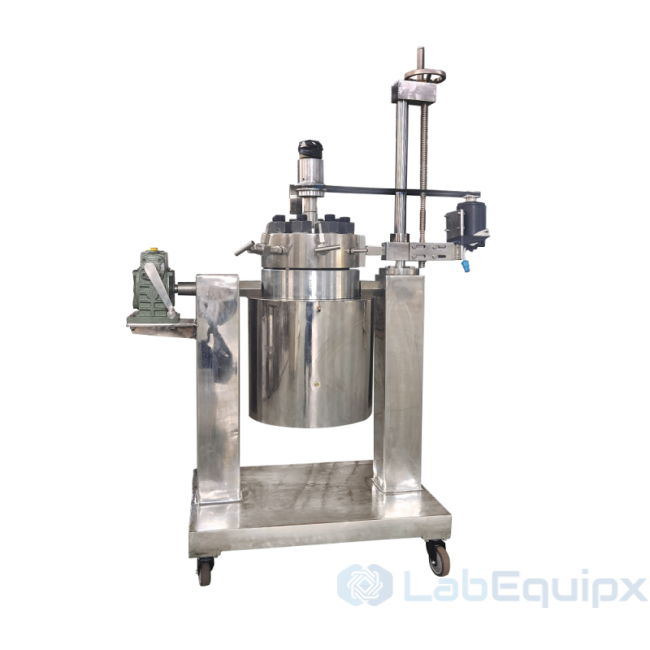

      • High Pressure Reactor with Head Lift & Vessel Rotate LEHPRHLVR

      • High Pressure Reactor with Head Lift & Vessel Rotate LEHPRHLVR - curcumin to tetrahydrocurcumin reaction lab instruments catalyst hydrogenation reactor is designed for the reaction of lab research and small production.

        Because of the convenience and portable it brings, this reactor can widely used for valaboratory stainless steel chemical catalytic reactors with lifting and tiltingrious test and reaction in laboratory, under high pressure, high vacuum and high temperature condition. Stainless steel made give a good appearance and durable for laboratory test.

        Application:

        • Rearch/Lab, High pressure, high vacuum, high temperature condition.
        • Chemical/Pharmaceutical, Syntheses, Reactor systems, Low temperature reactions.

      • Features:

        • Pressure up to 450bar，electric heating，head lift & vessel rotate
        • Lift for pressure reactors | This series stirred pressure reactor is widely used in laboratory application, which have features as fellows:
        • 100% Sealing. Zero leakage. Low energy cost magnetic stirrer.
        • The top cover and the kettle body are connected by flange bolts.
        • Vessel body can be manual rotate for discharge；
        • Top cover lid & magnetic agitator can be manual lifting & lowering

        Specifications:

        Model No. LEHPRHLVR-0.25 LEHPRHLVR-0.5 LEHPRHLVR-1 LEHPRHLVR-2 LEHPRHLVR-3 LEHPRHLVR-5
        Capacity (L) 0.25 0.5 1 2 3 5
        Working Pressure (MPa) 10 10 10 10 10 10
        Working Temperature (°C) 350 350 350 350 350 350
        Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500 0-1500
        Motor power (kW) 0.15 0.15 0.2 0.2 0.2 0.6
        Heating Power (kW) 1 1 2 2 3 4
        Material Standard SS304 OR SS316
        Heating Method General electric heating (water recycling, thermal oil heating available)
        Cooling Method Spiral coils (Single coils, serpentine coils available)
        Charging Method Charging from above (Bottom valve available)
        Stirring type Propeller, paddle type, anchor type or customized
        Lifting and tilting type Mannual operation
        Control panel Temperature, time and heating voltage display; Temperature adjustment control, accuracy± 1 °C; Stirring speed display and control
        Standard fittings Pressure Gage: Thermocouple: Internal Stirring System; Liquid inlet and gas inlet with needle valve; Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil
        • High Pressure Reactor with Head Lift & Vessel Rotate LEHPRHLVR
        • High Pressure Reactor with Head Lift & Vessel Rotate LEHPRHLVR
      • High Pressure Reactor with Head Lift & Vessel Rotate LEHPRHLVR
      • High Pressure Reactor with Head Lift & Vessel Rotate LEHPRHLVR
        ModelLEHPRHLVR
        BrandLabEquipx
