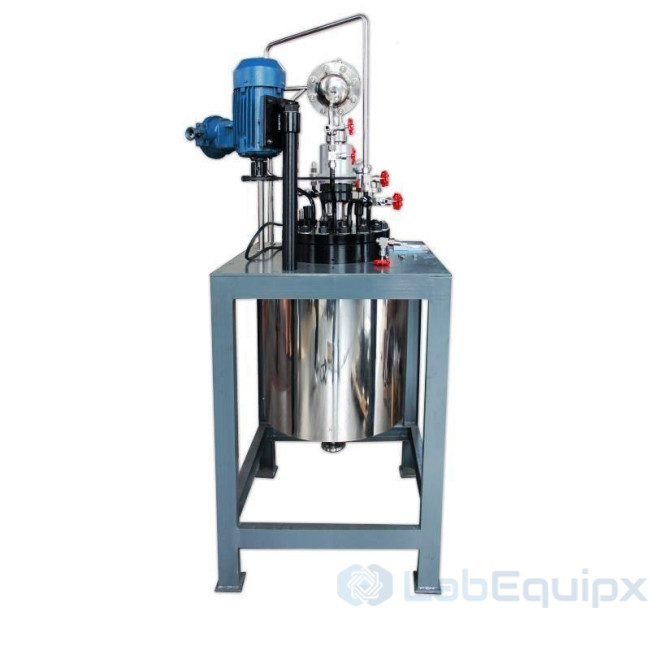

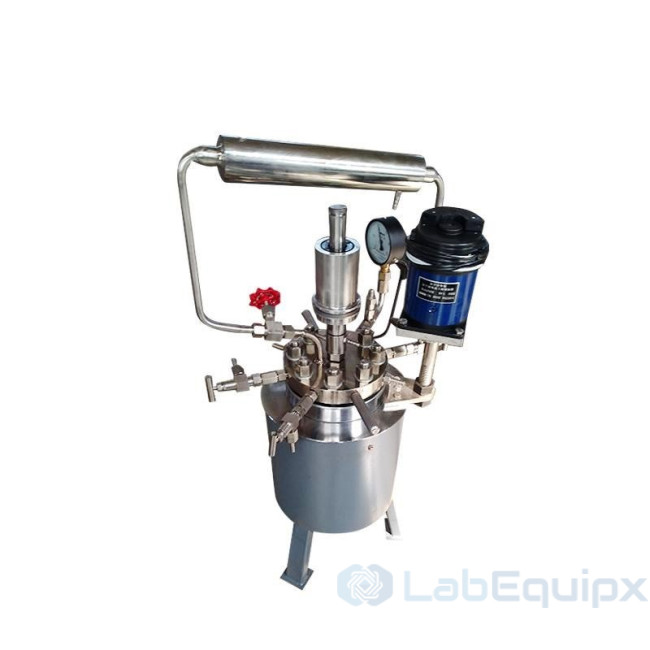

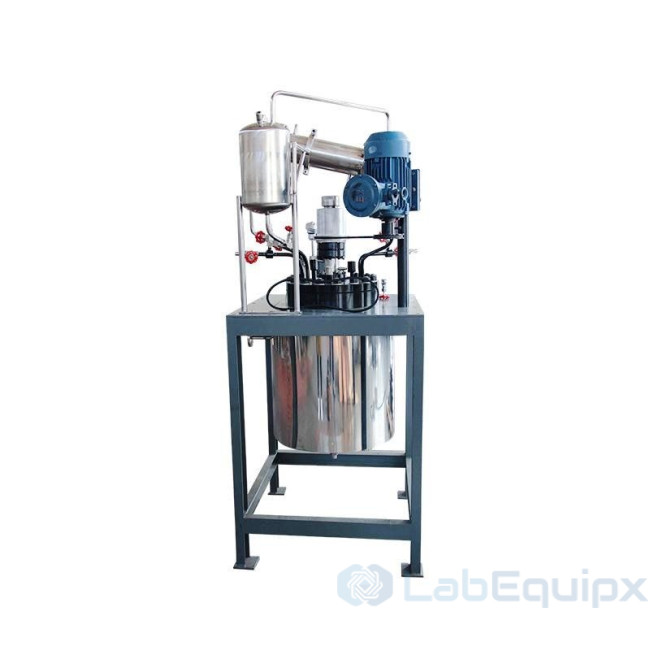

High Pressure Reactor System with Reflux Condenser LEHPRSRC

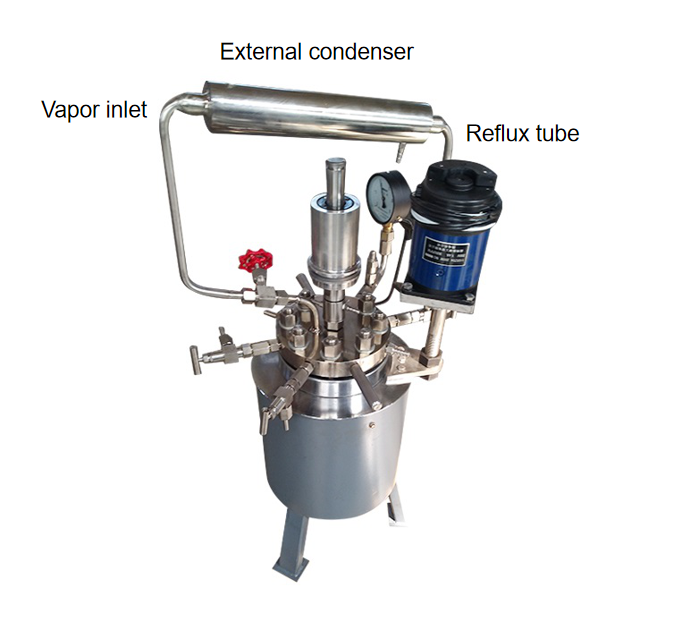

High Pressure Reactor System with Reflux Condenser LEHPRSRC - the whole reflux condensing system includes: the external condenser connect to the vapor outlet port of the high pressure reactor，helping the vapor to condense, thenthe oulet port of the condenser connect the reflux port of the cover of the reactor. This system helps the mixture to fully react until it is completely reacted.

Floor stands or moveable cart type.
Laboratory autoclaves with 500 ml to 5 liters volume.
Max pressure: 300 bar; Max temperature up to 500 ℃
Low to high torque magnetic couplings: static seal with no leakage.

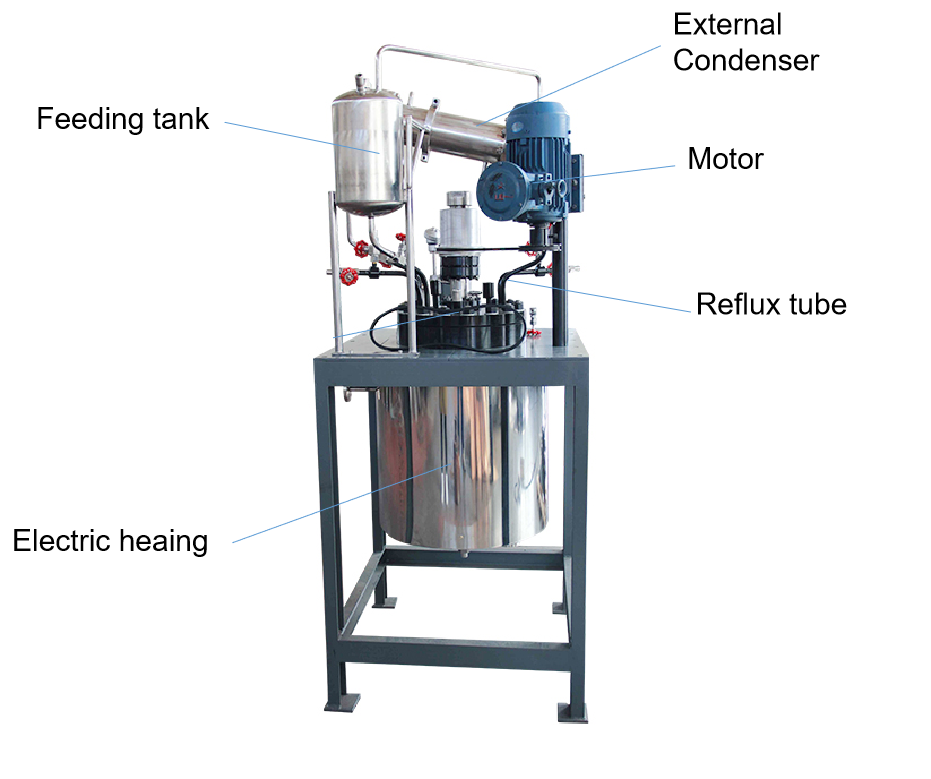

Equipped with external condenser, reflux tube line.
Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
Smooth run, low noise and easy operation.
Monitor and control: Temperature, pressure, motor speed, level, etc
Safety Device (Blasting Disc) on Security Blasting Port.
Customized according to customers requirement.

Model No.	LEHPRSRC-0.5	LEHPRSRC-1	LEHPRSRC-2	LEHPRSRC-3	LEHPRSRC-5
Nominal Capacity （L）	0.5	1	2	3	5
Working Pressure （MPa）	10	10	10	10	10
Working Temperature（℃）	350	350	350	350	350
Stirring Speed （r/min）	0-1500	0-1500	0-1500	0-1500	0-1500
Motor power （kW）	0.15	0.2	0.2	0.2	0.6
Heating Power （kW）	1	2	2	3	4
Heating Method	General electric heating(water recycling, thermal oil heating available)
Cooling Method	Spiral coils（Single coils, serpentine coils available）
Charging Method	Charging from above
Stirring type	Propeller, paddle type, anchor type or customized

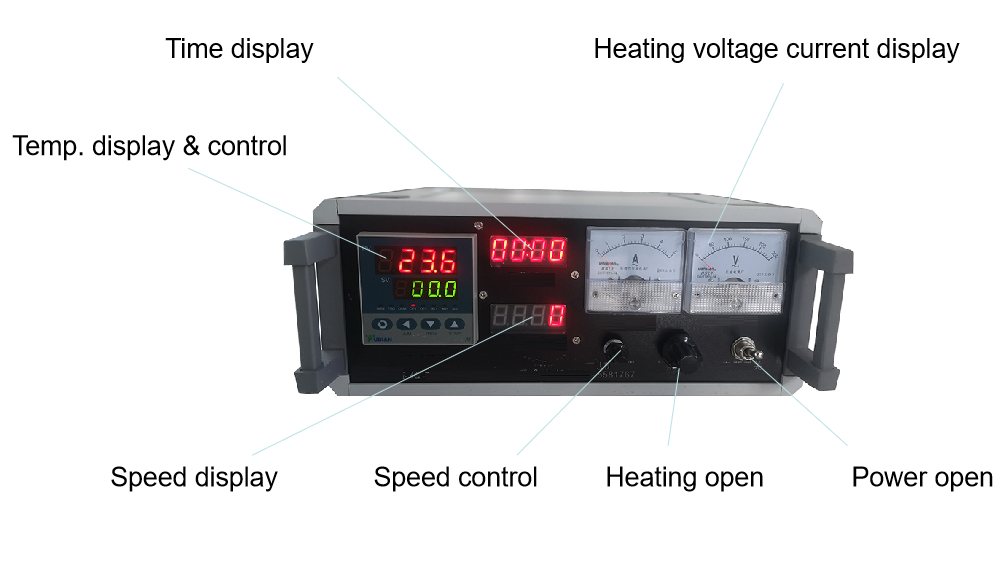

Control panel	Temperature, time and heating voltage display
	Temperature adjustment control, accuracy±1 ℃
	Stirring speed display and control
Standard fittings	Pressure Gage; Thermocouple; Internal Stirring System
	Liquid inlet and gas inlet with needle valve；Vapor outlet port;
	Dip Tube; Safety Rupture Disc; Cooling Coil
	External Conenser; Reflux tube line and control valve.
