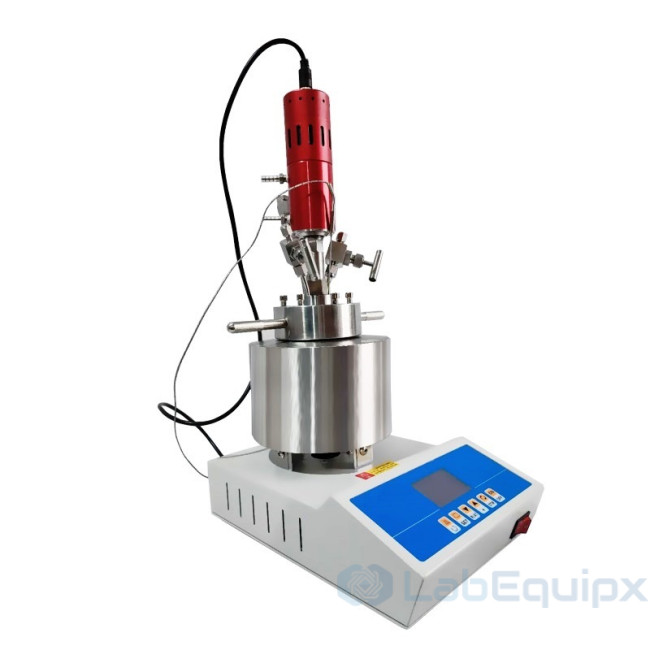

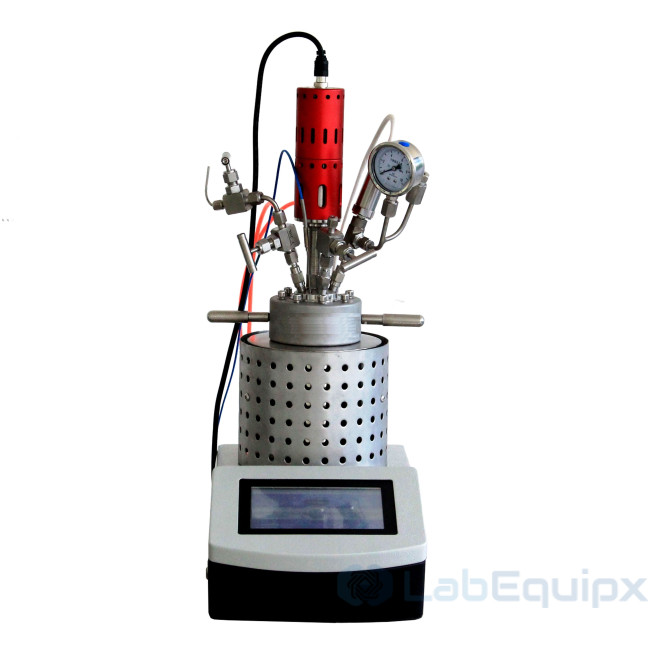

High Pressure Lab Scale Micro Stirred Pressure Reactor LEHPLSMSPR

High Pressure Lab Scale Micro Stirred Pressure Reactor LEHPLSMSPR - this series reactor is available for 100 bar working pressure, temeprature up to 300℃ reaction & laboratory test. This kinds of reactor can be placed on the table of laboratory.

Application:
- Chemical development
- High pressure none leakage application
- Corrosion test, and catalyst test
- Scale-up；Pilot-Plant; Small-scale production
- Hydrogenation；Catalytic Reaction；Polymerizatio

Salient features

Bench top quick open pressure
100ml to 1 liters volume;
Pressure up to 100bar;
Temperature up to 300℃；
Standard materials：SS-304, SS-316, other alloys, PTFE, PPL liner, etc.
Pressure gauge display and temperature sensor.
Internal cooling coils with water tap;
Control panel with program PID temperature controller.
Gas/liquid inlet & outlet with needle valve control.

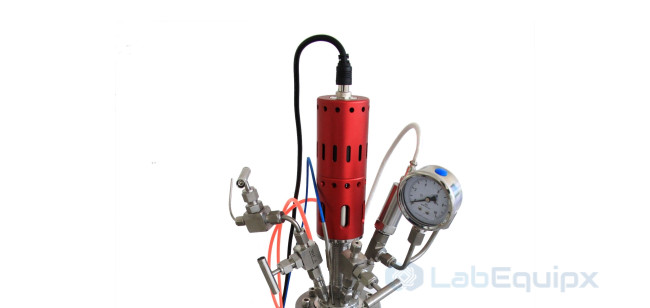

Magnetic stirrer

All stirred reactors are equipped with a magnetic drive, thereby avoiding the leakage problems which sometimes arise with a packed gland stirrer drive.
Direct vertical drive between motor and magnetic drive;
High torque magnetic couplings;
100% Sealing. Zero leakage. Low energy cost.

Specifications

Model	LEHPLSMSPR-50	LEHPLSMSPR-100	LEHPLSMSPR-250	LEHPLSMSPR-500	LEHPLSMSPR-1000
Material capacity	50 ml	100 ml	250 ml	500 ml	1000 ml
Max temperature	Standard 300°C, maximum up to 350°C
Operate pressure	Standard 100 bar; Max pressure up to 350 bar
Heating mode	Module heating;
The heating power	600 W	600 W	1.5 KW	2.0 KW	2.0 KW
Stirring speed	0-1500 rpm
Stirring method	Top mechanical stirring with magnetic drives
The stirring power	40 W	40 W	40 W	60 W	200 W
MOC	Standard SS304L ; (SS316L, TA2, C-276, PTFE liner are optional)
Standard	1X liquid poit; 1 X Gas port; Pressure gauge with burst disc; Temp. Measure port; Internal cooling coils (Optional)

Note

Customer is advised to select best suited options for most optimized price & delivery.
Customization of volume, material, pressure, temperature etc. may be possible on request.
Different power supply options may be possible on request.

Model	LEHPLSMSPR
Brand	LabEquipx
