LEALTHR

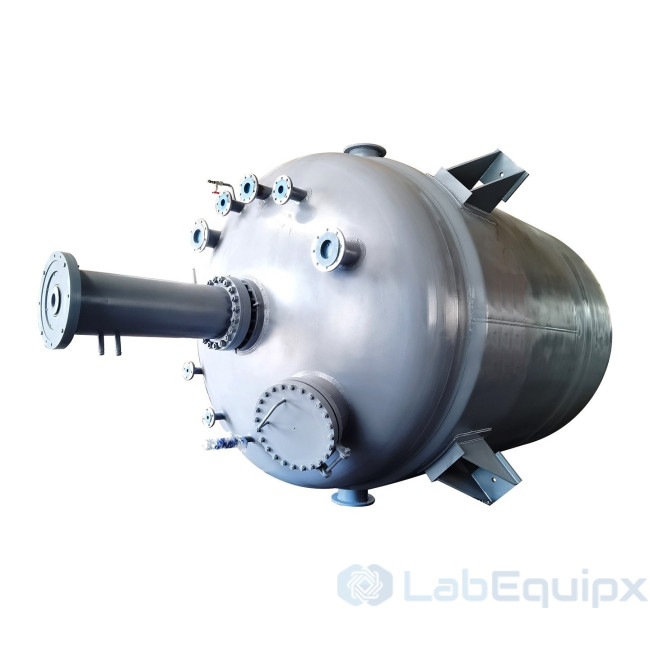

Acid Leaching Titanium Hydrometallurgy Reactor LEALTHR
High pressure Acid Leaching Titanium Hydrometallurgy Reactor LEALTHR. Hydrometallurgy is the process of chemical treatment of metal mineral raw materials in acidic medium or aqueous solution of alkaline medium or organic solvent extraction, separation of impurities, extraction of metals and their compounds.
Mixing duties:
- Fast dispersion of feed streams
- Optimal blending of acid and slurry
- Solid suspension
Applications:
- Bioleaching reactor
- Direct leaching
- Pre-Oxidation Tank
- Cyano detoxification
- Arsenic Removal
- Iron precipitation
- Vaporized chloride leaching, for example, for nickel matte treatment
- Recovery of scandium and rare earth elements (containing SO2 gas)
- Production of battery-level lithium carbonate (containing CO2 gas)
Features:
- Large scale production- max volume: 80m3.
- Max pressure: 200 bar; Max temperature up to 300 ℃.
- Available material: Titanium or cladding plate available
- When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion. Reduce costs for you!
- Magnetic drive and mechanical seal optional.
- Acuurate Impeller selected for the mixing mission and requires.

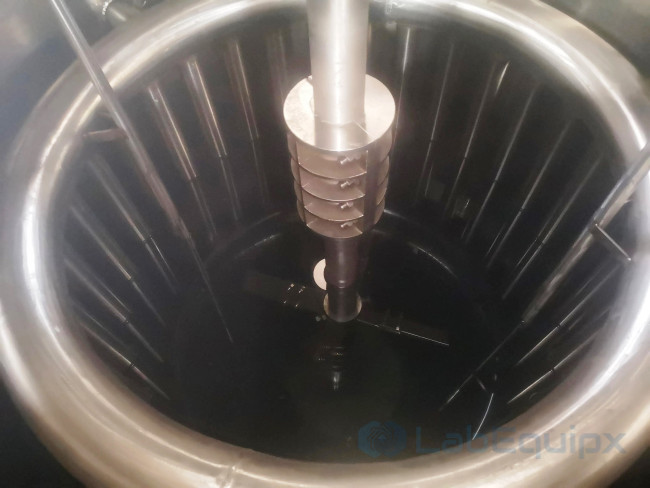

- Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
- Lugs or floor stand leg support.
Main Specification:
Type FCH1000~80,000L Volume(L) 1000~80,000L Working pressure(MPa) Negative pressure -0.1~20 Working temperature(°C) -196~350℃ Stirring speed(rpm) 0~1200 Motor power(KW) 80w~125kw Heating power(KW) 3~90 Heating type Heat oil heating, steam heating, Electric heating, Electromagnetic heating, far-infrared heating, Charging type Charging from above, discharging from bottom. Stirring type Customized propeller, turbine, paddle, anchor, frame, screw belt type. ...etc Seal type Magnetic seal, mechanical seal Motor General DC motor, DC servomotor or explosion-proof motor according to customers’ requirements. Construction materials（Wetted parts） Stainless steel SUS304, SS316L, SS310S, 321, duplex steel 2205, Titanium, Nickel, Zirconium, or PTFE lining, Hastelloy C-276, C22, cladding plate. Other Accessories Condenser, storage vessel, constant pressure feed tank, receiving tank, thin film evaporator&Short path (molecular) distillation. Internal Designing
Internal component design as per customer's requires, including:
- Internal condenser
- Agitator & impeller
- Dip tube
- Temperature measuring tube
- Various functional tube
- Cleaning device
- Bottom support & bearing
- Gas distributor
- Others
Customize for You

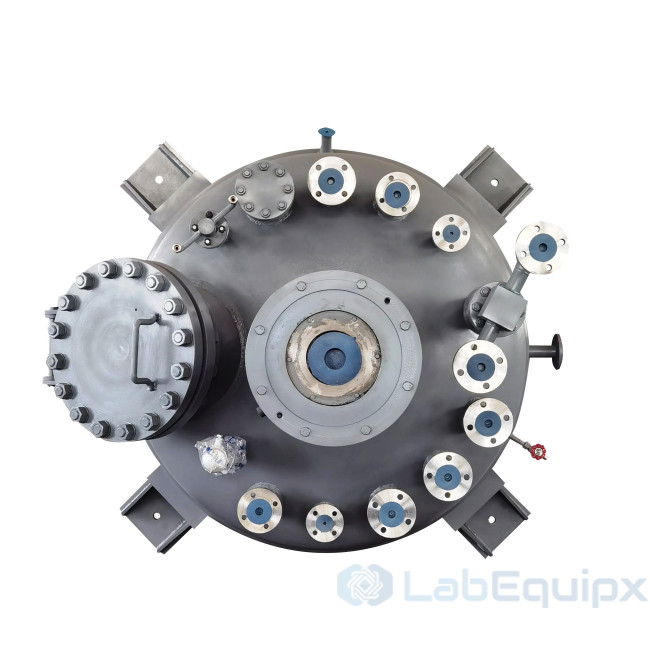

Reasonably customize the nozzle port and orientation, including: Manhole, liquid inlet, gas inlet, solid inlet, safety device, vent outlet... etc.

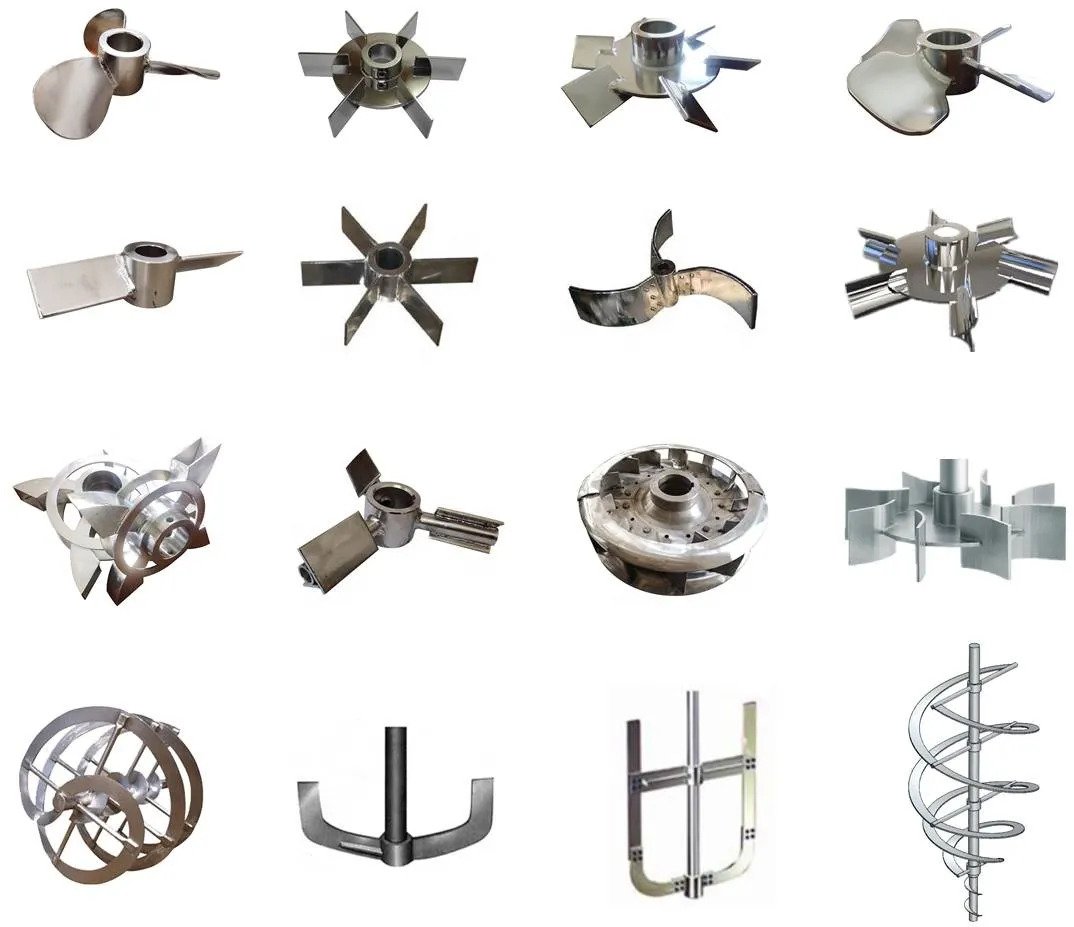

Agitator
- Different impeller type available for specific mixing mission
- Special impeller design according to process condistions
Product Paramenters
Model No. Vol. (L) A (mm) B (mm) C (mm) LEALTHR-1000 1000 1000 1100 3800 LEALTHR-2000 2000 1200 1500 4200 LEALTHR-3000 3000 1400 1700 4500 LEALTHR-5000 5000 1600 2150 4700 LEALTHR-6000 6000 1700 2350 5300 LEALTHR-8000 8000 1900 2500 5700 LEALTHR-10000 10000 2000 2800 5800 LEALTHR-15000 15000 2400 2900 6100 LEALTHR-20000 20000 2600 3300 7100 LEALTHR-25000 25000 2800 3550 7600 LEALTHR-30000 30000 2800 4350 9100 Note: Larger size and specific data will be designed and confrimed according to your requires!
| Model | LEALTHR |
| Brand | LabEquipx |
