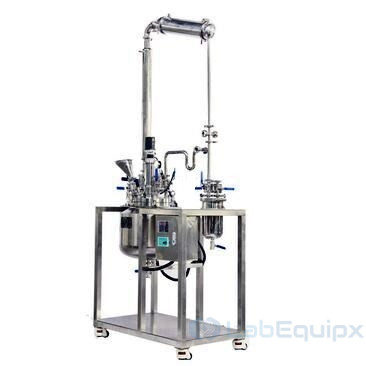

Stainless Steel Distillation Reactor with Reflux System SSDRRS
Stainless Steel Distillation Reactor with Reflux System SSDRRS - distillation reactor with reflux pipeline and receiver, mirror, vacuum system. Resin reactor system, stainless steel resin reactor plant.
This distillation equipment is including: Reaction vessel/ Reactor, mixing system, vacuum system, Vertical column, horizontal condenser, receiver/separator, heating system, platform.
Mixing tank/Stainless steel lab scale resin plant
- Volume: 20L, 50L, 100L, 200L, 500L, 1000L.
- Including jacketed distillation reactor, horizontal condenser, storage tank, heating system, pipelines, valves, temperature gauge PT100,pressure gauge, platform etc;
- Material:SS304/SS316;
- Working pressure: Vacuum/ 3bar;
- Heating method: Oil cycling; Electric heating;
- Cooling method: Internal cooling coils optional;
- The mirror of the inner container is dealt with by brightening, and its roughness is equal to or less than 0.4 um.
- The mixing tank is done at a variable or constant speed according to various capabilities and technical requirements.
- We can customize the mixing tanks according to your process requirements and drawings.
Features
Volume
10L-10000L (Other volume customized)
Pressure
Vacuum to 10bar
Temperature
Up to 350℃
Material
SS304 or SS316 ; PTFE liner optional
Layers
Single/ Double(heating)/ Three layers(Insulation)
Top head type
Dish, Open lid, Flat, semi-elliptical head
Bottom type
Dish, Conical, Flat bottom
Heating mode
Oil Electric heating, Steam heating, electric heating
Jacket
Conventional jacket/ Limpet Coil jacket
Seal type
Mechnical sealing or magnetic seal
Mixing type
High speed homoginizer, Propeller, anchor, paddle, scraper type, etc.
Optional parts
Quick open manhole / Pressure manhole
Various types of CIP spraying ball
Liquid level meter and lever controller
Ladder ( Optional )
The pressure gauge ( Optional )
Application
Food, Beverage, pharmacy, biological, honey, chocolate, alcohol, chemical industry etc
Mixing tank fittings optional as fellows:
Vessel fittings
Cleaning ball, Long flange mirror; Mirror light; Sampling valve; Liquidometer, Glass manhole
Pump Feeding pump, recycling pump, metering pump, sanitary pump, emulsion pump Pipeline Pipeline mirror; Ball valve; Butterfly valve; Filter Distillation fittings Distillation fittings Control PLC control; Explosion-proof pannel
| Model | SSDRRS |
| Brand | LabEquipx |
