Corrosion Testing Autoclaves LECTA

Corrosion Testing Autoclaves LECTA have been designed and manufactured, primarily for the oil and gas industry. The equipment can also be used in a number of other industries to simulate high pressure, high temperature (HPHT) environments such as nuclear, geothermal, carbon capture and storage, energy, defence, pharmaceutical and many more industries. The system has been designed to suit both industry and academic

The autoclave’s primary use is to evaluate material, coating or inhibitor performance, corrosion failure analysis in the form of weight loss coupons or electrochemical studies in aggressive high pressure (HP) and high temperature (HT) environments representative of the conditions found in the field throughout the oil and gas industry.

Available Products:

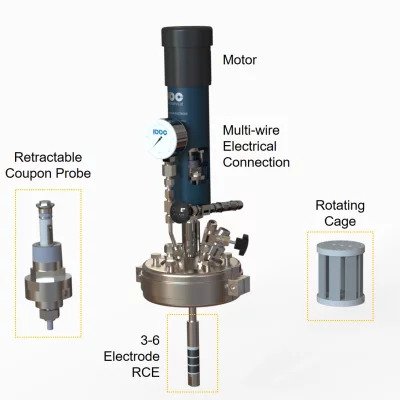

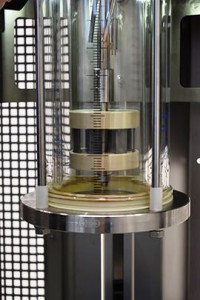

- Rotating Cage Autoclave
- 3-6 Coupon Rotating Cylinder Electrode (RCE) Autoclave
- Chemical Injection Autoclave
- Coupon Insertion/retraction Autoclave (Patented product)
* Specification suited to SA and HPHT Models based on your requirements.

Key Benefits

High levels of built in safety: impossible to open autoclave whilst pressurised
Ease of use and handling: one bolt fast release open/closure and lifting/lowering system
Modular in design: vessel stand (suitable for fume cupboards), vessel design and optional features
Enhanced process control: minimise heat-up time and pre-corrosion

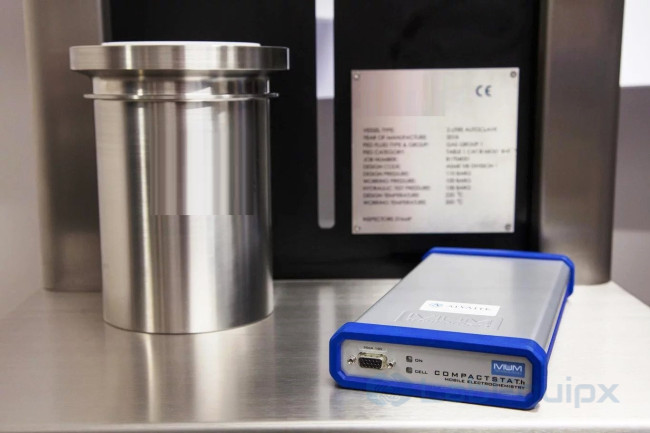

Corrosion monitoring system available: built-in electrochemistry and potentiostat
Corrosion expertise: ongoing technical support throughout the product life

Key Features

PORT 1:

½” NPT CENTRE PORT
Weight loss coupons or working electrode configurations
Multiple/single electrode Conax fitting
In-line magnetic agitation (coupon holder mounted on underside of vessel cover)

PORT 2:

¼” NPT
Ag/AgCl reference electrode
Cooling coil/spare port

PORT 3:

½” NPT
Platinum counter electrode
Cooling coil/spare port

PORT 4:

½” NPT
Spare / secondary manual vent valve

PORT 5:

½” NPT
Gas (CO2/N2/H2S) inlet valve and dip tube

PORT 6:

½” NPT
Autoclave vent valve and pressure relief valve

PORT 7:

½” NPT
PT100 temperature probe and thermowell

PORT 8:

½” NPT
pH probe
Spare port

PORT 9:

½” NPT
Pressure system (inc. pressure gauge, transducer and rupture disc assembly

Model	Volume	Pressure	Working temperature	Material	Relevant application/Corrosion mechanisms	Ttypical testing standards
LECTA-01	1-5L	100 bar 1450 psi	200ºC / 392ºF	316L Stainless Steel (UNS S31603)	CO2 corrosion, inhibitor evaluation, pitting corrosion	ASTM G31, G11, G46, G48, G170
LECTA-01	1-5L	200 bar 2901 psi	400 / 752ºF	C276 Hastelloy (UNS N10276)	H2S corrosion, sulfidde stress corrosion cracking	NACE TM0177, TM0316, MR0175/ISO 15156; EFC 16, 17
LECTA-01	1-5L	100 bar 1450 psi	200ºC / 392ºF	316L Stainless Steel + Tantalum	Deep well acidizing, intergranular corrosion	ASTM A262, G28

Model	LECTA
Brand	LabEquipx
