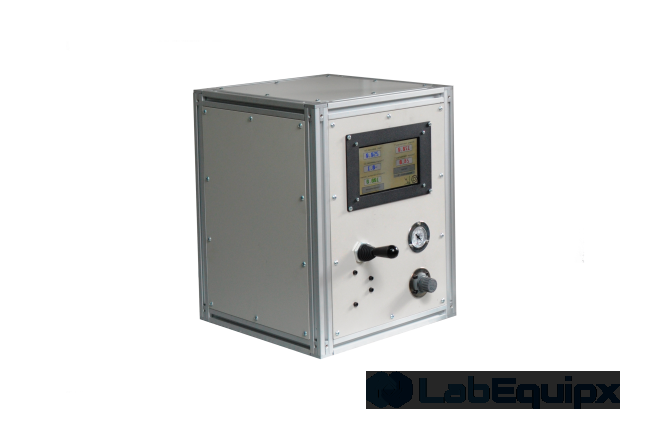

Control Unit For Chemical Reactor LECUCR
The control unit for a chemical reactor is an integral part of any reactor setup. The control unit is used to control all the main experiment parameters: pressure, temperature, mixing, cooling, and equipment control. In addition to setting experiment parameters, the control unit will shut off heating in the case of uncontrolled pressure and/or temperature increase and alert the operator.
The control unit in an expanded configuration can be supplied together with a SCADA-type interface (for example, for controlling a supercritical extraction setup). All configurations of the control unit can be connected to a PC. Special software is supplied with the control unit to enable control of the setup via a PC.
The control unit for a chemical reactor has such functions as experiment recording, setting working parameters, outputting experiment data to a PC and USB, changing heating intensity, equipment control, signaling, and emergency shutdown of the setup.
Specifications:
- Housing material: Stainless steel
- Touch screen: Present
- Software: Present
- Output of data to USB drive: Present
- Output of data to PC: Present
- Temperature setting: Available
- Pressure setting: Available
- Stirring speed setting: Available
- Experiment recording: Available
- Emergency shutdown: Available
Options:
- SCADA interface
- Analog pressure gauge duplication
- Lift/lower reactor vessel
- Reactor vessel rotation
- Furniture control
- Software adaptation.
Features:
- Convenient and easy-to-use interface in Russian language.
- Duplication of readings on analog devices.
- Fixation of connectors with threaded connections.
- Touch screen for easy data input.
- Recording of the experiment, displaying the graph data in real-time.
Adaptive interface
The interface and software can be adapted to a specific process on a particular setup. Our engineers will study the peculiarities of implementing the required process or experiment, and then, together with the programmers, carry out the adaptation of the software.
TOUCHSCREEN DISPLAY
The touchscreen display allows for quick and convenient input of experiment data, monitoring of parameters in real time, and control of system components.
CONTROL HANDLE
The control handle for the lifting mechanism facilitates loading, unloading, and sealing of the autoclave. Autoclaves with volumes greater than 1 liter can be heavy, and for ease of use, these systems are equipped with pneumatic, electric, or hydraulic lifting mechanisms.
ANALOG PRESSURE GAUGE
The analog pressure gauge displays the current pressure in the autoclave.
ALUMINUM FRAME
The aluminum frame provides structural rigidity and convenient fastening of protective panels. Upon request, the housing can be designed to meet the IP55 standard.
Reliable and convenient connector fixation
To ensure the successful completion of an experiment, it is unacceptable to lose data from any sensor. To prevent the possibility of losing connection with the equipment, the connectors on the control unit are equipped with threaded connections, providing a reliable fixation of the connector.
The package includes:
- Assembled control unit
- Connecting wires and connectors
- Power supply unit
- User manual
- Set of documents (certificate, passport, component certificates, test report)
| Model | LECUCR |
| Brand | LabEquipx |
