LE2PBPTI

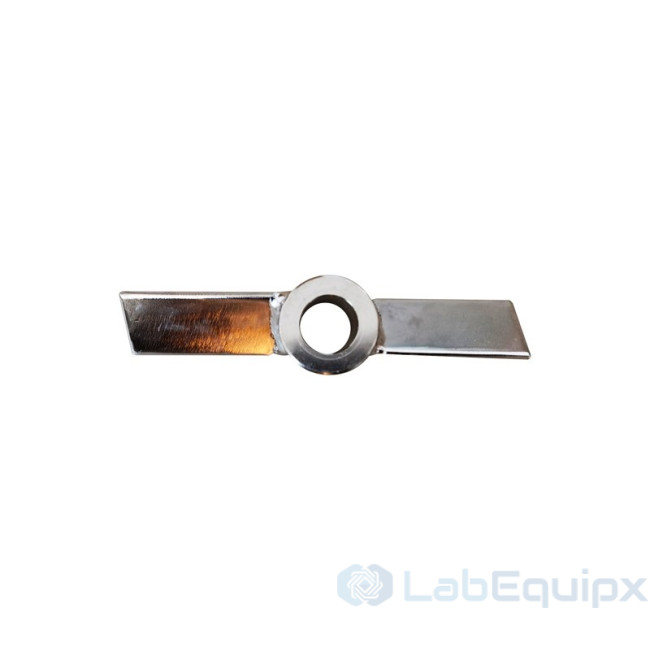

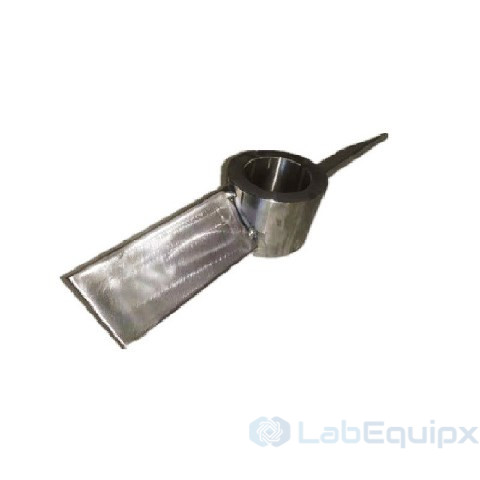

Two Pitched Blade Paddle Type Impeller LE2PBPTI
The blade of the paddle can have an inclination angle of 24 °, 45 ° or 60 °, with axial flow and radial flow. The flow pattern is more complicated than that of the straight blade, and the discharge energy is higher than that of the straight blade, but a better comprehensive effect. The application process is the same, so the application frequency is higher than others.
Features
- Mixed flow type impeller; Paddle type impeller.
- Standard 45° pitched two blade design.
- Can be designed close to the tank wall.
- Produces a desirable balance of flow and shear.
- Application: Medium viscosity process, flow-controlled applications.
Technical Requirements
- Diameter of impeller: 30~2000 mm
- Diameter of shaft: 10~300 mm
- QTY of impeller: 2
- Available material：CS, SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
Impeller Dj(mm) Shaft d(mm)
250 25 350 30；35 400 35；40 450 40；45 500 40；45 550 40；45 600 45；55 700 50；60 850 55；70 950 55；70 Quick Selection
Type Mixing speed Application Feature Marine propeller
Broad blade Propeller
100-500r/min Low viscosity Low shear, low energy consumption
Strong circulation
High-speed operation
Paddle type
- Straight blade
- Pitched blade
- Curved blade
50-200r/min Medium viscosity Close to the tank wall
Heavy duty, slow operation
High energy consumption
Inefficient mixing
Turbine type
- Straight blade
- Pitched blade
- Curved blade
50-350 r/min Low viscosity
Medium viscosity
Medium shear and cyclic
Medium speed operation
Suitable for medium equipment
Disk turbine (Flat blade, pinched blade,
curved blade, )
100-350 r/min Low viscosity
Medium viscosity
Strong shear, gas dispersion
Medium speed operation
High energy consumption
Frame type
Anchor type
Helical Blade
20-150 r/min High viscosity Low shear and speed
Strong cycle ability
High energy consumption
Self inducing type
200-500 r/min Liquid-gas mixing
Strong self-inducing capacity
High gas consumption
High speed operation
| Model | LE2PBPTI |
| Brand | LabEquipx |
