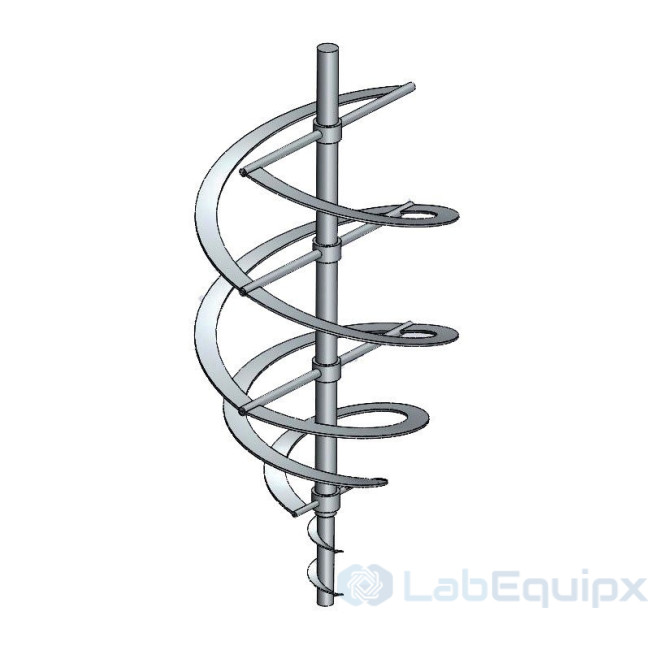

Ribbon, Helical and Screw Belt High Viscosity Impellers LERHSBHVI

Liquid goes up or down along the spiral surface to form axial up and down circulation, which is suitable for the mixing and heat transfer of medium and high viscosity liquid.

The external profile of the screw belt o is close to the inner wall of the stirring tank, and the stirring diameter is large, which strengthens the up and down circulation of the liquid near the tank wall. The heat transfer process of high viscosity liquid is very suitable.

Screw-belt combined type, with the characteristics of both screw and screw-belt, strengthens the cycle of liquid inside and outside, and is especially effective for non-Newton-type plastic and cohesive liquid.

Cone bottom screw belt type, the feature is that the bottom shape can match the cone bottom, can be designed according to requirements.

Features

• Axial flow type impeller.
• Low-shear mixing of sensitive products.
• High homogeneity after shortest mixing time.
• Application: High viscosity process; Heat transfer; Homogenization.
