LERCTI

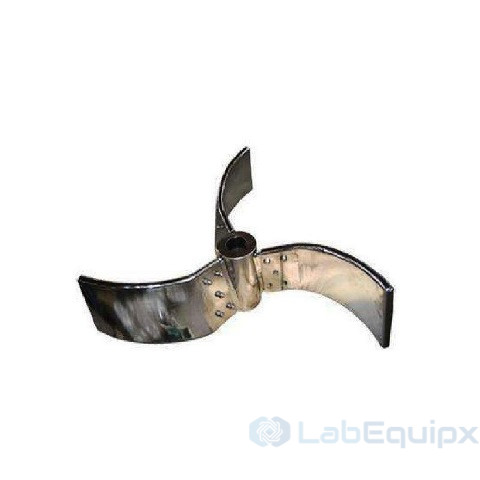

Retreat Curve Turbine Impeller LERCTI
Retreat Curve Turbine Impeller LERCTI - specifically designed for low level mixing in dished and shallow coned bottoms with a bottom outlet.
An asymmetric flow mode is generated at the bottom of the tank, and the contents of the tank are rotated to remove mud from the tank while minimizing solid accumulation.
Compared with more traditional blade and blade turbines, the torque requirement is lower and the performance is better.
Features
- Mixed flow type impeller.
- Uniform shear forces; Circulating flow under the baffle; Medium or low speed; Low energy consumption.
- Designed for low level mixing in dished or coned bottoms with a bottom outlet.
- Application: Solid dispersion, dissolution, suspension, heat transfer, liquid phase reaction.
Technical Requirements
- Diameter of impeller: 30~2000 mm
- Diameter of shaft: 10~300 mm
- QTY of impeller: 3
- Available material：CS, SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
Impeller Dj(mm) Shaft d(mm)
200 25 250 35 320 45 400 55 450 60 500 65 630 75 710 80 800 85 900 90 Quick Selection
Type Mixing speed Application Feature Marine propeller
Broad blade Propeller
100-500r/min Low viscosity Low shear, low energy consumption
Strong circulation
High-speed operation
Paddle type
- Straight blade
- Pitched blade
- Curved blade
50-200r/min Medium viscosity Close to the tank wall
Heavy duty, slow operation
High energy consumption
Inefficient mixing
Turbine type
- Straight blade
- Pitched blade
- Curved blade
50-350 r/min Low viscosity
Medium viscosity
Medium shear and cyclic
Medium speed operation
Suitable for medium equipment
Disk turbine (Flat blade, pinched blade,
curved blade, )
100-350 r/min Low viscosity
Medium viscosity
Strong shear, gas dispersion
Medium speed operation
High energy consumption
Frame type
Anchor type
Helical Blade
20-150 r/min High viscosity Low shear and speed
Strong cycle ability
High energy consumption
Self inducing type
200-500 r/min Liquid-gas mixing
Strong self-inducing capacity
High gas consumption
High speed operation
| Model | LERCTI |
| Brand | LabEquipx |
