LEMTP3BP

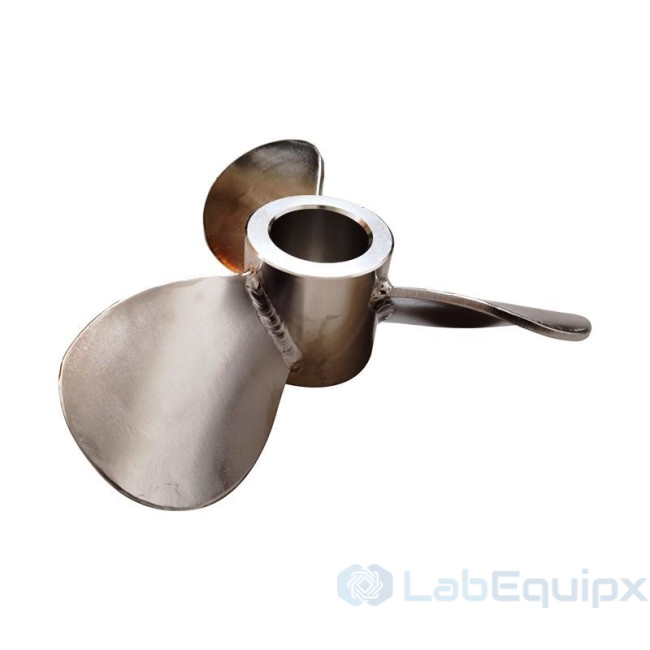

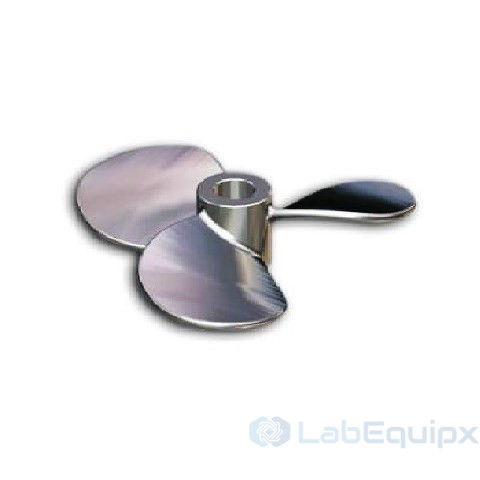

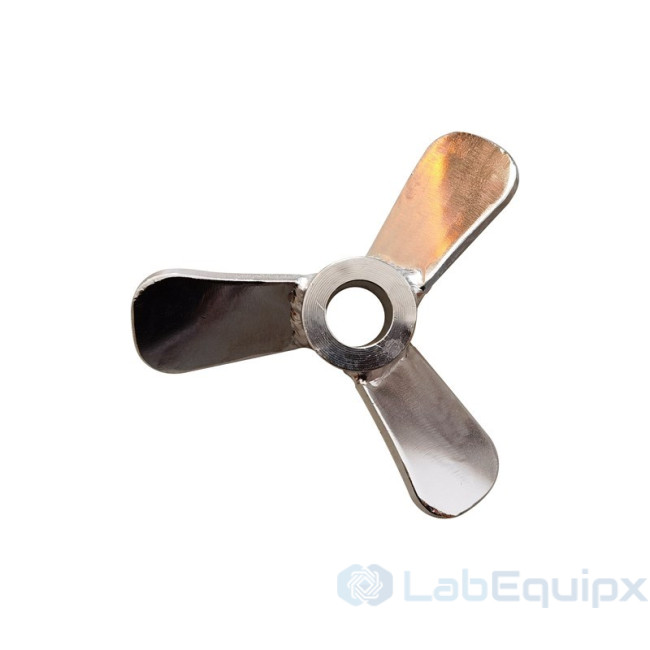

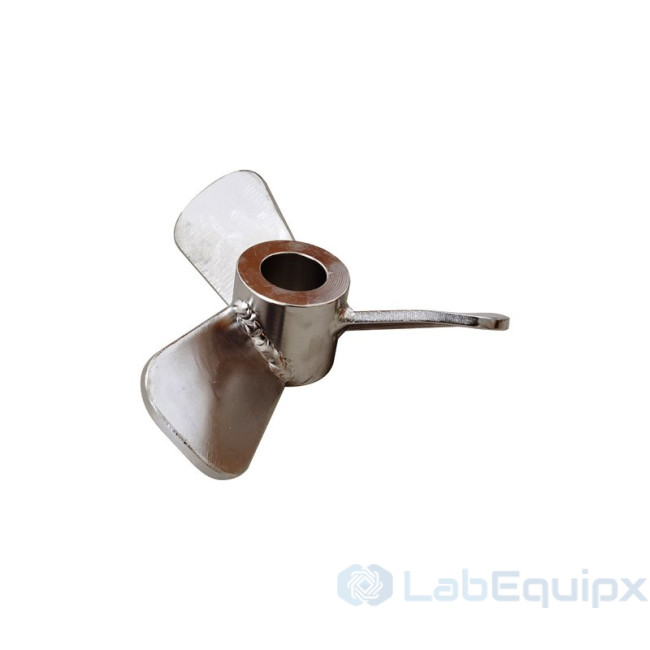

Marine Type Propeller Three Blade Propeller LEMTP3BP
This series impeller is suitable for low viscosity fluids, solids suspension, blending and flocculation.
The most common impeller used in the reaction because of its strong axial pumping and recycling capabilities. Best for applications with low viscosity fluids, solids suspension, blending and flocculation.
Features
- Axial flow type impeller.
- Small diameter & direct drive applications.
- Solids suspension, blending and flocculation.
- Application: Low visicosity, moderate pumping action and powder-wetting capabilities.
Technical Requirements
Impeller Dj(mm) Shaft d(mm)
150 25; 30 200 30; 35 250 35; 40 300 35; 40; 45 400 45; 50; 55 500 55; 60; 65 600 60; 65; 70 700 70; 75; 80 850 80; 90; 100 1200 100; 110 Quick Selection
Type Mixing speed Application Feature Marine propeller
Broad blade Propeller
100-500r/min Low viscosity Low shear, low energy consumption
Strong circulation
High-speed operation
Paddle type
- Straight blade
- Pitched blade
- Curved blade
50-200r/min Medium viscosity Close to the tank wall
Heavy duty, slow operation
High energy consumption
Inefficient mixing
Turbine type
- Straight blade
- Pitched blade
- Curved blade
50-350 r/min Low viscosity
Medium viscosity
Medium shear and cyclic
Medium speed operation
Suitable for medium equipment
Disk turbine (Flat blade, pinched blade,
curved blade, )
100-350 r/min Low viscosity
Medium viscosity
Strong shear, gas dispersion
Medium speed operation
High energy consumption
Frame type
Anchor type
Helical Blade
20-150 r/min High viscosity Low shear and speed
Strong cycle ability
High energy consumption
Self inducing type
200-500 r/min Liquid-gas mixing
Strong self-inducing capacity
High gas consumption
High speed operation
| Model | LEMTP3BP |
| Brand | LabEquipx |
