LEHSHPBB

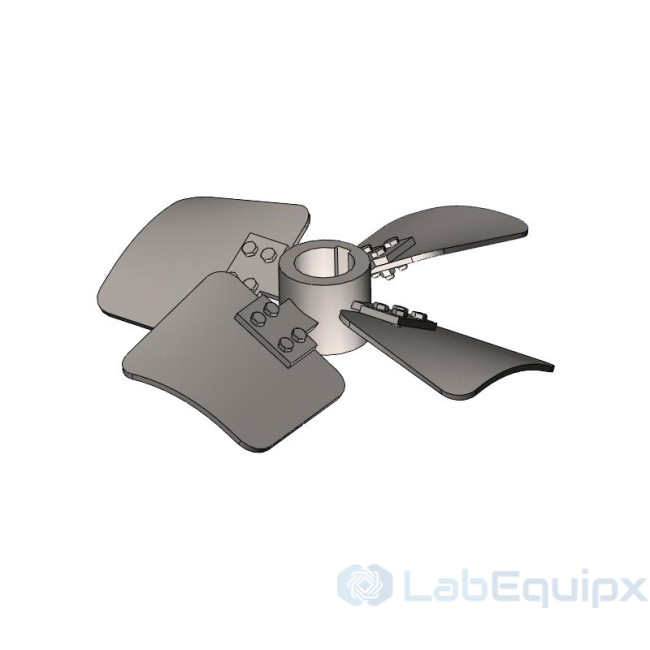

High Solidity Hydrofoil Propeller with Broad Blade LEHSHPBB
This series of agitators contain three blade or four blade, which have the same characteristics and application fields, but the four blade type have relatively large circulation capacity.
The large amount of gas can be stored under the wide leaves, making the gas dispersion more stable, it is especially suitable for occasions requiring mass transfer, heat transfer, solid suspension, low shear force and gas-liquid dispersion.
Features
- Axial flow type impeller, broad blade design.
- Solid suspension; Low energy cost; High mass transfer; Good recycling capacities.
- Application: Gas-liquid dispersion and mass transfer-controlled applications.
Technical Requirements
- Diameter of impeller: 30~2000 mm
- Diameter of shaft: 10~300 mm
- QTY of impeller: 3 or 4
- Available material：CS, SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
Impeller Dj(mm) Shaft d(mm)
200 25 250 35 280 40 320 45 360 50 400 55 450 60 500 65 560 70 630 75 710 80 800 85 900 90 Quick Selection
Type Mixing speed Application Feature Marine propeller
Broad blade Propeller
100-500r/min Low viscosity Low shear, low energy consumption
Strong circulation
High-speed operation
Paddle type
- Straight blade
- Pitched blade
- Curved blade
50-200r/min Medium viscosity Close to the tank wall
Heavy duty, slow operation
High energy consumption
Inefficient mixing
Turbine type
- Straight blade
- Pitched blade
- Curved blade
50-350 r/min Low viscosity
Medium viscosity
Medium shear and cyclic
Medium speed operation
Suitable for medium equipment
Disk turbine (Flat blade, pinched blade,
curved blade, )
100-350 r/min Low viscosity
Medium viscosity
Strong shear, gas dispersion
Medium speed operation
High energy consumption
Frame type
Anchor type
Helical Blade
20-150 r/min High viscosity Low shear and speed
Strong cycle ability
High energy consumption
Self inducing type
200-500 r/min Liquid-gas mixing
Strong self-inducing capacity
High gas consumption
High speed operation
| Model | LEHSHPBB |
| Brand | LabEquipx |
