LEABDMFT

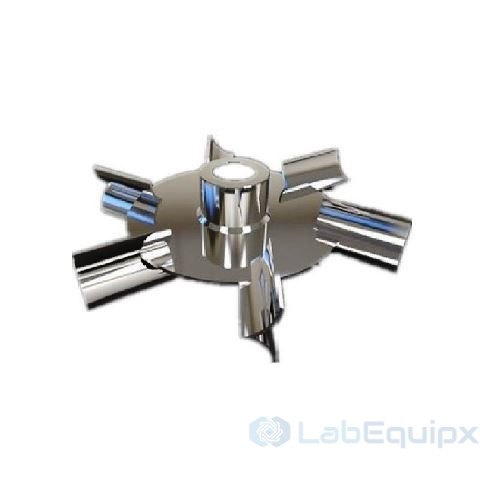

Arrow Blade Disc Mixed Flow Turbine LEABDMFT
Arrow blade type disc turbine stirrer is also a kind of stirrer mainly for gas dispersion. Since the section of its blade part is like a arrow shape, so the axial direction has two oblique circles, which has low power consumption and high shear force.
This series impeller is suitable for gas dispersion, absorption, mass transfer, solid-liquid suspension and other operations.
Features
- Mixed flow type impeller，mainly for radial flow.
- Arrow blade design for high gas handling and consumption.
- Application：Gas-liquid reaction, absorption, mass transfer, solid-liquid suspension.
Technical Requirements
- Diameter of impeller: 30~2000 mm
- Diameter of shaft: 10~300 mm
- QTY of impeller: 6 (4, 8, 10)
- Available material：CS, SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
Impeller Dj(mm) Shaft d(mm)
200 30 250 40 400 50 500 65 600 65 700 80 800 90 900 100 Quick Selection
Type Mixing speed Application Feature Marine propeller
Broad blade Propeller
100-500r/min Low viscosity Low shear, low energy consumption
Strong circulation
High-speed operation
Paddle type
- Straight blade
- Pitched blade
- Curved blade
50-200r/min Medium viscosity Close to the tank wall
Heavy duty, slow operation
High energy consumption
Inefficient mixing
Turbine type
- Straight blade
- Pitched blade
- Curved blade
50-350 r/min Low viscosity
Medium viscosity
Medium shear and cyclic
Medium speed operation
Suitable for medium equipment
Disk turbine (Flat blade, pinched blade,
curved blade, )
100-350 r/min Low viscosity
Medium viscosity
Strong shear, gas dispersion
Medium speed operation
High energy consumption
Frame type
Anchor type
Helical Blade
20-150 r/min High viscosity Low shear and speed
Strong cycle ability
High energy consumption
Self inducing type
200-500 r/min Liquid-gas mixing
Strong self-inducing capacity
High gas consumption
High speed operation
| Model | LEABDMFT |
| Brand | LabEquipx |
