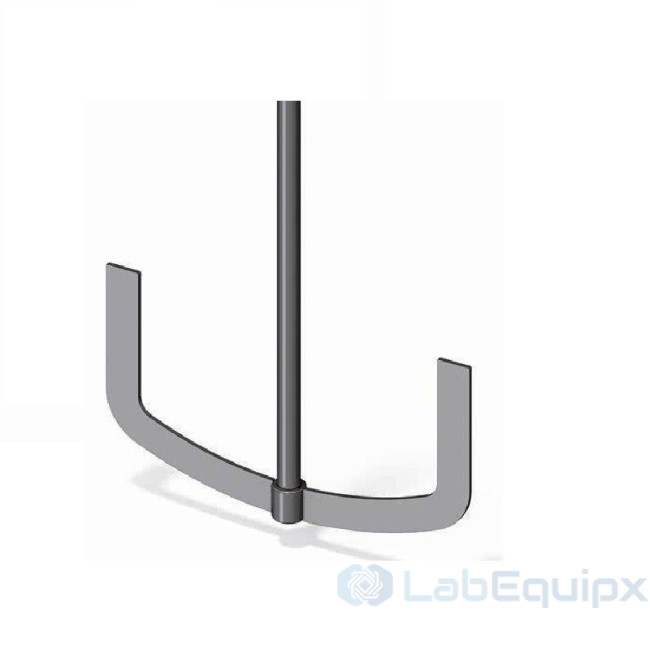

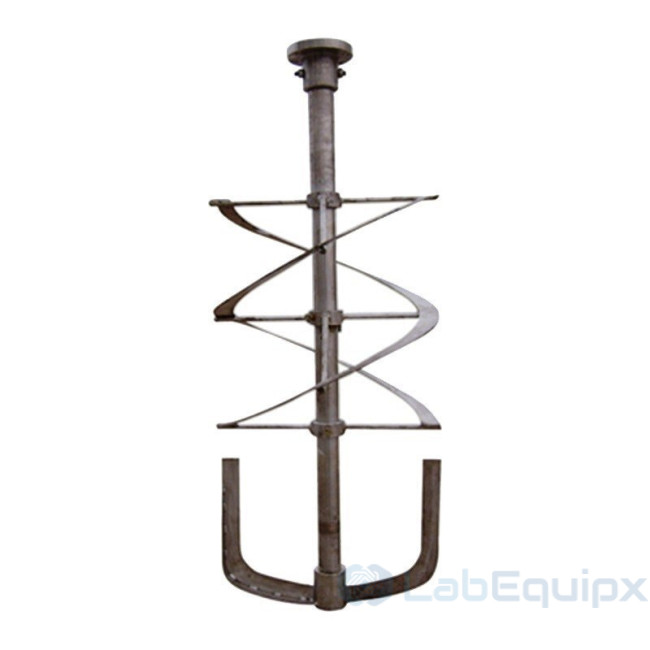

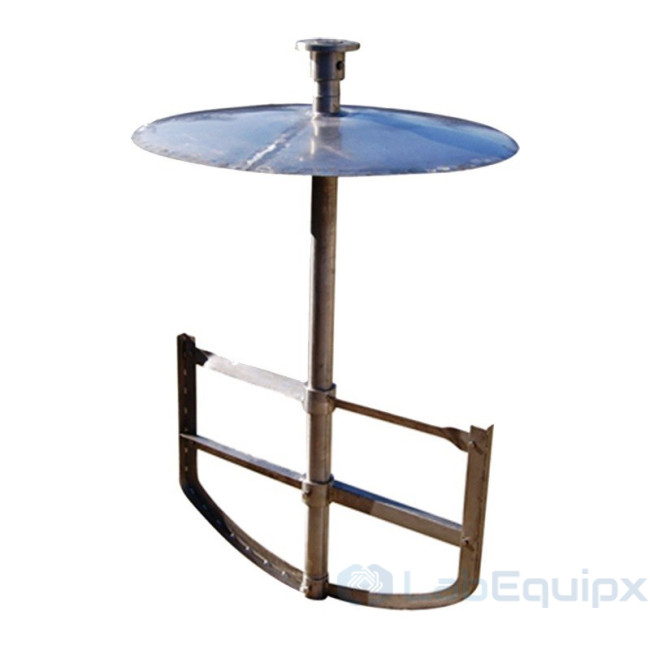

Anchor, Frame and Gate Type High Viscosity Impeller LEAFGTHVI
This kind of stirrer is a slow stirrer, which is suitable for mixing, heat transfer or reaction of medium and high viscosity liquids. It is often operated in the laminated installation to produce horizontal circular flow.
Equipped with the pitched blade or certain angle steel blade, the eddy current near the blade can be increased. The paddle and beam can be added as needed to increase the mixing range.
Features
- Laminar flow type impeller.
- Pitched blade or certain angle steel blade will strenth the turbulence near the impeller.
- Blending Operations.
- Appication: Paint industry; Molecular sieve.
Technical Requirements
- Diameter of impeller: 30~2000 mm
- Diameter of shaft: 10~300 mm
- QTY of impeller: 4, 6, 8, 10
- Available material：CS, SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum
Quick Selection
Type Mixing speed Application Feature Marine propeller
Broad blade Propeller
100-500r/min Low viscosity Low shear, low energy consumption
Strong circulation
High-speed operation
Paddle type
- Straight blade
- Pitched blade
- Curved blade
50-200r/min Medium viscosity Close to the tank wall
Heavy duty, slow operation
High energy consumption
Inefficient mixing
Turbine type
- Straight blade
- Pitched blade
- Curved blade
50-350 r/min Low viscosity
Medium viscosity
Medium shear and cyclic
Medium speed operation
Suitable for medium equipment
Disk turbine (Flat blade, pinched blade,
curved blade, )
100-350 r/min Low viscosity
Medium viscosity
Strong shear, gas dispersion
Medium speed operation
High energy consumption
Frame type
Anchor type
Helical Blade
20-150 r/min High viscosity Low shear and speed
Strong cycle ability
High energy consumption
Self inducing type
200-500 r/min Liquid-gas mixing
Strong self-inducing capacity
High gas consumption
High speed operation
| Model | LEAFGTHVI |
| Brand | LabEquipx |
