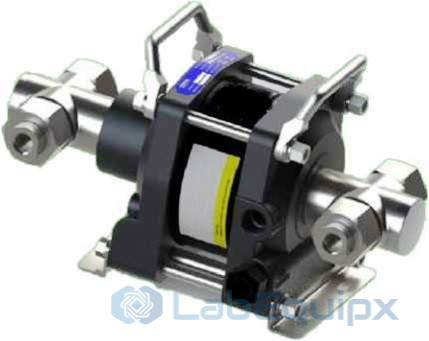

Pump LE06 Series Single Drive/Double Acting

Features:
- Choice of 7 ratios.
- Flows to 29.9 l/min.
- Choice of wetted materials.
- Output pressures to 20,000 psi (1379 bar).
- Drive pressure 3 to 150 psi (0.2 to 10.3 bar).

Performance and Specification Pump LE06 Series Single Drive/Double Acting:

Pump Model Code	Max.Out Press.	Actual Ratio	Dis. /Cycle	Max.Flow	Inlet Port	Outlet Port
LE06-1D-10	1600psi	14:1	133ml	29.9l/min	1 "FNPT	1/2"FNPT
LE06-1D-15	2400psi	18:1	89ml	19.9l/min	1/2"FNPT	1/2"FNPT
LE06-1D-25	4000psi	30:1	53.6ml	11.9l/min	1/2"FNPT	1/2"FNPT
LE06-1D-35	5700psi	45:1	38ml	8.6l/min	1/2"FNPT	1/2"FNPT
LE06-1D-60	9800psi	72:1	22ml	4.9l/min	1/2"FNPT	1/2"FNPT
LE06-1D-100	16500psi	120:1	13.4ml	3.0l/min	1/2"FNPT	1/2"FNPT
LE06-1D-150	20000psi	180:1	9ml	2.0l/min	1/2"FNPT	1/4 "HF

* HF means female high pressure connection.

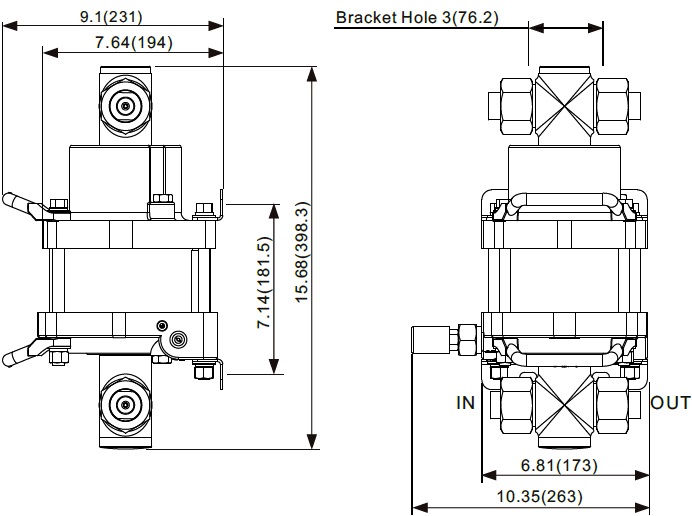

Dimensions (in.(mm):

* Air IN port is 3/4 female NPT for standard pumps.

Explain:

All model code listed are standard.
For angle pumps add “A” after the model codes.
For Quick repair pumps add “-Q” after the model codes.
For pumps with relief valve add “-R” after the model codes.
For pumps with Viton seals add “-V” after the model codes.
For pumps with Pressure switch valve add “-P” after the model codes.
For cold area service add “-C” after the model codes.
For liquid CO add “-C2” after the model codes.
Other sizes, materials and types are available upon request.

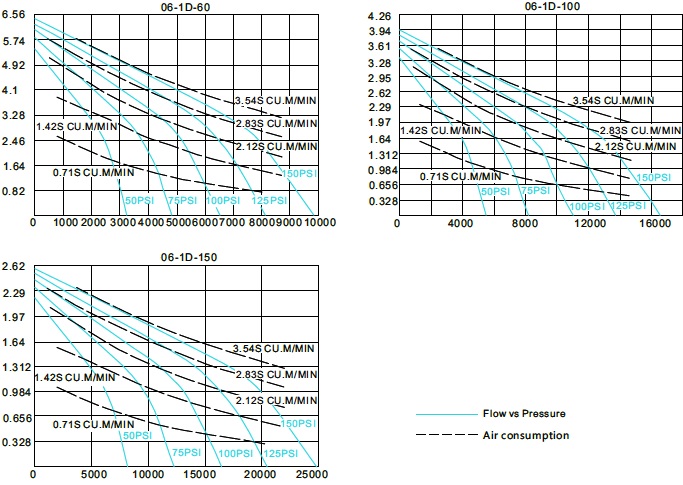

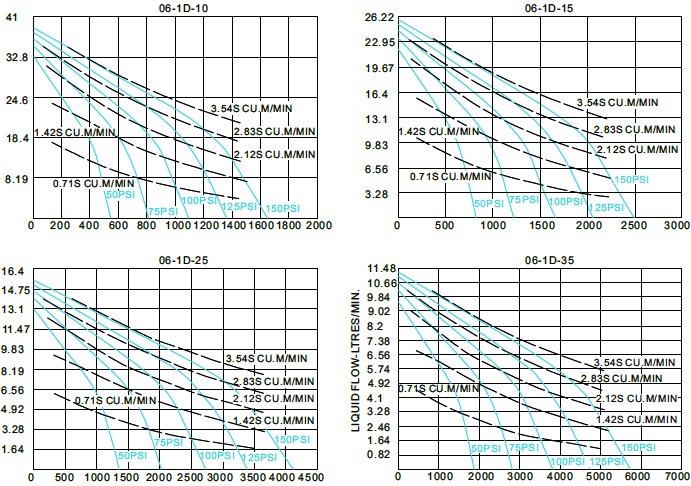

Perfomance Curves:

LIQUID FLOW-LTRES/MIN.
OUTLET PRESSURE(PSI).

Model	LE06
Brand	LabEquipx
