LEB06

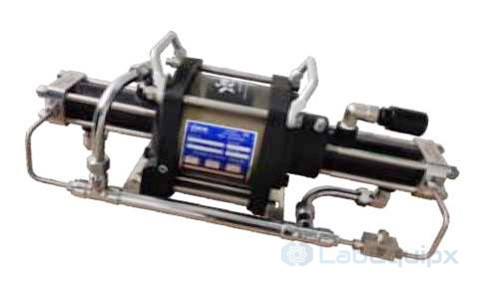

Booster LEB06 Series Single Drive/Double Stage
Features:
- Because it has a higher compression ratio, it can work at lower gas supply pressure Ps.
- Max. air drive pressure Pa=150 psig(10.3 bar).
- Choice of seal materials.
- Pressure to 15000 psig(1034 bar).
- No lubricator required.
Dimensions in.(mm):
- 3/4 female NPT AIR IN for all models.
- -7 /15 & -7/30 Boosters: B=25.9in.(658mm).
- -15/30, -15/50, -15/75, -30/50, -30/75 Boosters :B=25.5in.(648mm).
- For LEB06-1T-7 /15 & LEB06-1T-7/30 & LEB06-1t-4 the inlet ports are 3/8 female NPT.
- For other boosters the inlet port are 1/4 female high pressure connection.
- For LEB06-1t-4 the outlet port is 3/8 female NPT.
- For all the other boosters the outlet ports are 1/4 female high pressure connection.
Explain:
- All model code listed are standard.
- Oxygen gas service add “-O” after the model codes.
- Hydrogen gas service add “-H” after the model codes.
- Replaces all Buna static and dynamic seals in the drive section of the gas booster add“-V” after the model codes.
- With external pilot port on air drive section add“-X” after the model codes.
- With external pilot port on air drive section& pressure switch add “-XS” after the model codes.
- Other sizes, materials and types are available upon request.
Performance and Specification Booster LEB06 Series Single Drive/Double Stage:
Booster Model Code Max.Gas Supply Min.Gas Supply Max.Rated Gas Outlet (psig) - Inert Gas Max.Rated Gas Outlet (psig) - Hydrogen Max.Rated Gas Outlet (psig) - Oxygen Actual ML Per Cycle Actual ML Per Cycle Compression Ratio Max. Max.barrel Safe Pressure - First stage Max.barrel Safe Pressure - Second stage LEB06-1 T-4 1250psig 1/4ATM 1250 1250 1250 164ML 4 Pa + Ps 100:1 1250psig 1250psig LEB06-1T-7/15 6 Pa 25psig 4050 4050 4050 216ML 15 Pa+2 Ps 50:1 2500psig 5000psig LEB06-1T-7/30 2 Pa 25psig 5700 5700 5000 216ML 30 Pa+4 Ps 100:1 2500psig 9000psig LEB06-1T-15/30 15 Pa 50psig 7500 7500 5000 102ML 30 Pa+2 Ps 50:1 5000psig 9000psig LEB06-1T-15/50 6.5 Pa 100psig 10700 10000 5000 102ML 50 Pa+3.3 Ps 75:1 5000psig 15000psig LEB06-1T15/75 3.5 Pa 100psig 15000 15000 5000 102ML 75 Pa+5 Ps 100:1 5000psig 25000psig LEB06-1T-30/50 45 Pa 100psig 15000 15000 5000 51ML 50 Pa+1.6 Ps 40:1 9000psig 15000psig LEB06-1T30/75 20 Pa 100psig 15000 15000 5000 51ML 75 Pa+2.5 Ps 60:1 9000psig 25000psig * When the pressure of the first stage exceeds the Max.barrel Safe Pressure listed in the table. Install interstage relief valve set at this pressure.
Performance Curves — air drive source of approximately 90 psig:
- GAS OUTLET PRESSURE - PSIG.
- GAS OUTLET FLOW - Nm³/min.
| Model | LEB06 |
| Brand | LabEquipx |
