Booster LEB06 Series Double Drive/Single Acting
Features:
- Choice of 3 ratios.
- Max. air drive pressure Pa=150 psig(10.3 bar).
- Choice of seal materials.
- Higher outlet pressure to 20000 psig(1379 bar).
- No lubricator required.

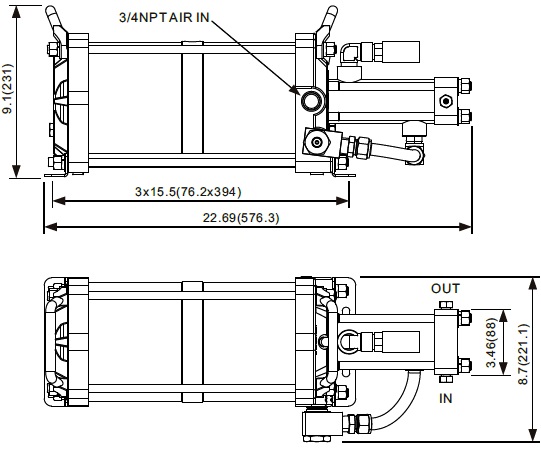

Dimensions (in.(mm):
Explain:
- All model code listed are standard.
- Oxygen gas service add “-O” after the model codes.
- Hydrogen gas service add “-H” after the model codes.
- Replaces all Buna static and dynamic seals in the drive section of the gas booster add“-V” after the model codes.
- With external pilot port on air drive section add“-X” after the model codes.
- With external pilot port on air drive section& pressure switch add “-XS” after the model codes.
- Other sizes, materials and types are available upon request.
Performance and Specification Booster LEB06 Series Double Drive/Single Acting:
Booster Model Code Max.Rated Gas Supply Min.Rated Gas Supply Max.Rated Gas Outlet (psig) - Inert Gas Max.Rated Gas Outlet (psig) - Hydrogen Max.Rated Gas Outlet (psig) - Oxygen Actual ML Per Cycle Outlet Stall Press. Formula Compression Ratio Max. Inlet & Outlet Gas Ports LEB06-2S-60 9000psig 200psig 9000 9000 5000 51 ML 60 Pa 25:1 1/4"HF LEB06-2S-100 12000psig 100psig 12000 12000 5000 32ML 100 Pa 25:1 1/4"HF LEB06-2S-150 20000psig 250psig 20000 15000 5000 20ML 150 Pa 25:1 1/4"HF * HF means female high pressure connection.

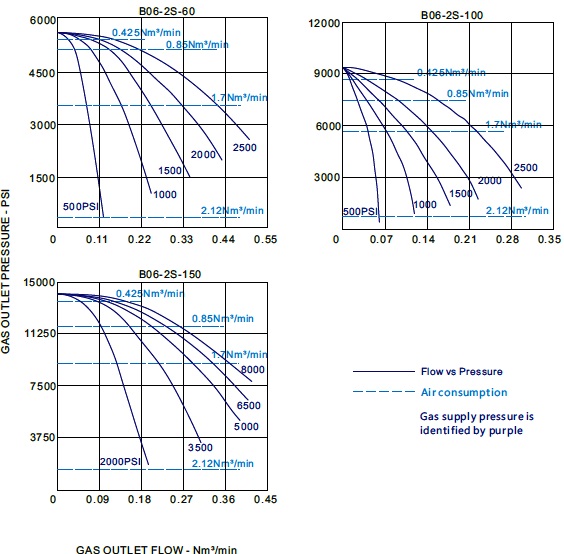

Performance Curves — air drive source of approximately 90 psig:
