    • Booster LEB06 Series Double Drive/Double Stage

    • Features:

      • Because it has a higher compression ratio, it can work at lower gas supply pressure Ps.
      •  Max. air drive pressure Pa=150 psig(10.3 bar).
      • Choice of seal materials.
      • Pressure to 25000 psig(1724 bar).
      • No lubricator required.

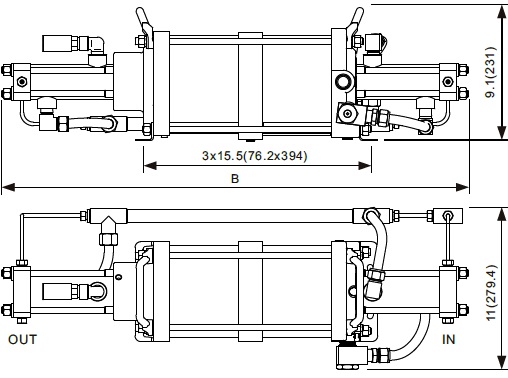

    • Dimensions (in.(mm):

      • 3/4 female NPT AIR IN for all models.
      • For LEB06-2T-14 /30 & LEB06-2T-14/60 : B=32.24in.(819mm). For other boosters :B=31.85in.(809mm).
      • For LEB06-2T-14 /30 & LEB06-2T-14/60 the inlet port are 3/8 female NPT. For other boosters the inlet port are 1/4 female high pressure connection.
      • For all the boosters the outlet ports are 1/4 female high pressure connection.

      Explain:

      • All model code listed are standard.
      • Oxygen gas service add “-O” after the model codes.
      • Hydrogen gas service add “-H” after the model codes.
      • Replaces all Buna static and dynamic seals in the drive section of the gas booster add“-V” after the model codes.
      • With external pilot port on air drive section add“-X” after the model codes.
      • With external pilot port on air drive section& pressure switch add “-XS” after the model codes.
      • Other sizes, materials and types are available upon request.

      Performance and Specification Booster LEB06 Series Double Drive/Double Stage:

      Booster Model Code Max.Gas Supply Min.Gas Supply Max.Rated Gas Outlet(psig) - Inert Gas Max.Rated Gas Outlet(psig) - Hydrogen Max.Rated Gas Outlet(psig) - Oxygen Actual ML Per Cycle Outlet Stall Press. Formula Compression Ratio Max. Max.barrel Safe Pressure (First stage) Max.barrel Safe Pressure (Second stage)
      LEB06-2T-14/30 12 Pa 25psig 5000 5000 5000 216ML 30 Pa+2 Ps 50:1 2500psig 5000psig
      LEB06-2T-14/60 4 Pa 25psig 9000 9000 5000 216ML 60 Pa+4 Ps 100:1 2500psig 9000psig
      LEB06-2T-30/60 30 Pa 100psig 9000 9000 5000 102ML 60 Pa+2 Ps 50:1 5000psig 9000psig
      LEB06-2T-30/100 13 Pa 100psi 14500 14500 5000 102ML 100 Pa+3.3 Ps 75:1 5000psig 15000psig
      LEB06-2T-30/150 7 Pa 100psig 15000 15000 5000 102ML 150 Pa+5 Ps 100:1 5000psig 25000psig
      LEB06-2T-60/100 90 Pa 100psig 15000 15000 5000 51ML 100 Pa+1.6 Ps 40:1 9000psig 15000psig
      LEB06-2T-60/150 40 Pa 100psig 25000 15000 N/A 51ML 150 Pa+2.5 Ps 60:1 9000psig 25000psig

      * When the pressure of the first stage exceeds the Max.barrel Safe Pressure listed in the table. Install interstage relief valve set at this pressure.

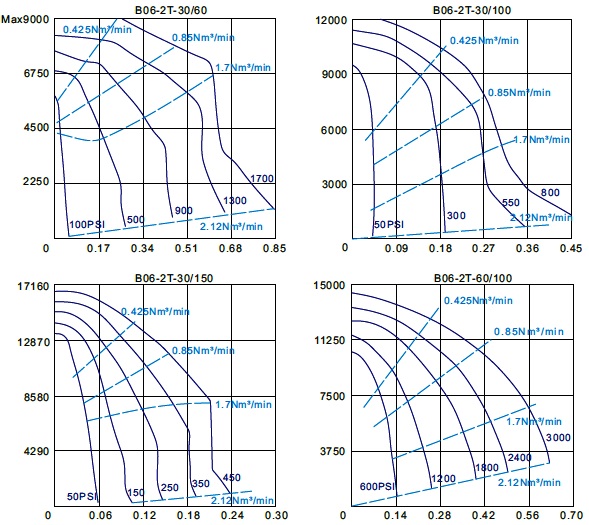

      Performance Curves — air drive source of approximately 90 psig:

      • GAS OUTLET PRESSURE - PSI.
      • GAS OUTLET FLOW - Nm³/min.


      • Booster LEB06 Series Double Drive/Double Stage
    • Booster LEB06 Series Double Drive/Double Stage
      ModelLEB06
      BrandLabEquipx
