Booster LEB06 Series Double Drive/Double Acting
Features:
- Higher efficiency than single-acting boosters.
- Max. air drive pressure Pa=150 psig(10.3 bar).
- Less restriction on gas supply pressure Ps.
- Choice of seal materials.
- Higher outlet pressure to 25000 psig(1724 bar).
- No lubricator required.

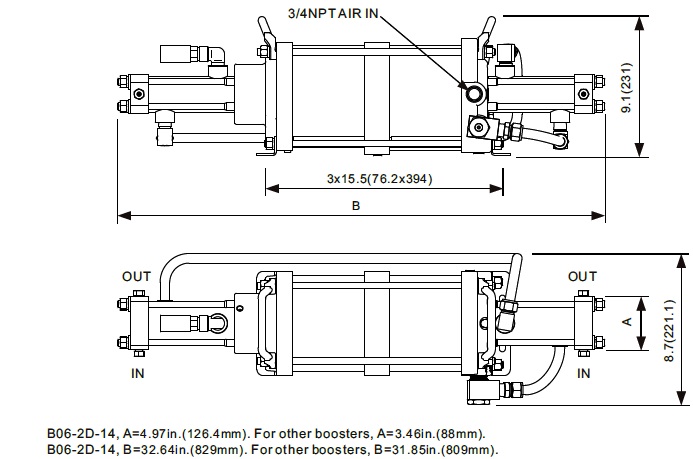

Dimensions (in.(mm):
Explain:
- All model code listed are standard.
- Oxygen gas service add “-O” after the model codes.
- Hydrogen gas service add “-H” after the model codes.
- Replaces all Buna static and dynamic seals in the drive section of the gas booster add“-V” after the model codes.
- With external pilot port on air drive section add“-X” after the model codes.
- With external pilot port on air drive section& pressure switch add “-XS” after the model codes.
- Other sizes, materials and types are available upon request.
Performance and Specification Booster LEB06 Series Double Drive/Double Acting:
Booster Model Code Max.Rated Gas Supply Min.Rated Gas Supply Max.Rated Gas Outlet (psig) - Inert Gas Max.Rated Gas Outlet (psig) - Hydrogen Max.Rated Gas Outlet (psig) - Oxygen Actual ML Per Cycle Outlet Stall Press. Formula Compression Ratio Max. Inlet & Outlet Gas Ports LEB06-2D-14 3500psig 25psig 5000 5000 5000 432ML 14 Pa + Ps 20:1 3/8"FNPT LEB06-2D-30 5000psig 50psig 5000 5000 5000 203ML 30 Pa+Ps 20:1 1/4"HF LEB06-2D-60 9000psig 200psig 9000 9000 5000 102ML 60 Pa+Ps 25:1 1/4"HF LEB06-2D-100 15000psig 100psig 15000 15000 5000 64ML 100 Pa+Ps 25:1 1/4"HF LEB06-2D-150 25000psig 250psig 25000 15000 N/A 39ML 150 Pa+Ps 25:1 1/4"HF * HF means female high pressure connection.
Performance Curves — air drive source of approximately 90 psig:
- GAS OUTLET PRESSURE - PSI.
- GAS OUTLET FLOW - Nm³/min.
| Model | LEB06 |
| Brand | LabEquipx |
