| Model No. |
LEMCDBAR-50 |
LEMCDBAR-100 |
LEMCDBAR-200 |
LEMCDBAR-300 |
LEMCDBAR-500 |
| Nominal Capacity |
50 L |
100 L |
200 L |
300 L |
500 L |
| Design Pressure | -0.1-250 bar customized |
| Material | Clad SS304, SS316 or other alloys |
| Design Temperature | 0~350°C customized |
| Stirring Speed |
0-500 rpm |
0-500 rpm |
0-450 rpm |
0-450 rpm |
0-450 rpm |
| Motor Power |
1.5 kW |
2.2 kW |
2.2 kW |
4 kW |
5.5 kW |
| Heating Method | Standard electric heating(Thermal oil, steam, far infrared heating available) |
| Head type | Flat cover or elliptical flange type |

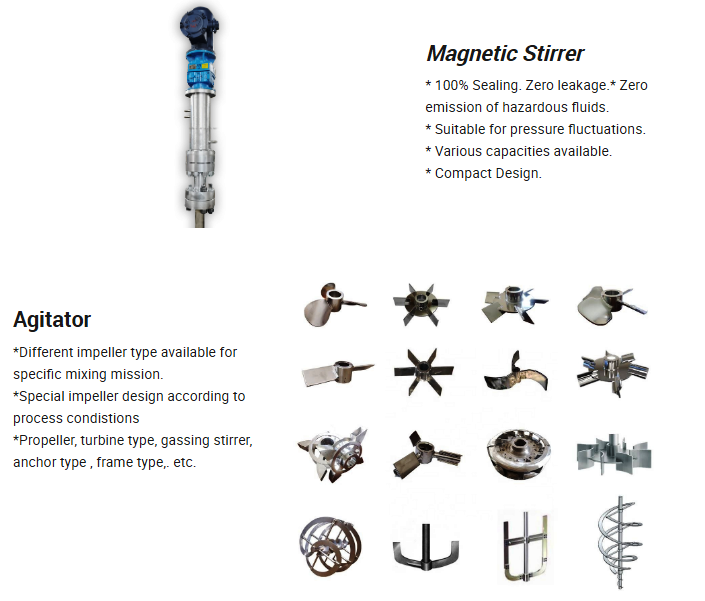

| Impeller type (Optional) | Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc |

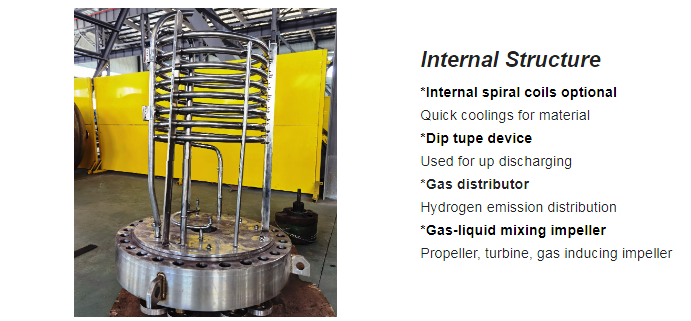

| Cooling type (Optional) | Internal spiral cooling cools |
| Discharging type (Optional) | Discharging from bottom or up discharge by pressure. |
| Control panel | PID temperature display and control, accuracy±1 °С; Stirring speed display; Operation time display; Heating voltage and current display. |
| Standard | Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve Dip Tube; Safety Rupture Disc; Cooling Coil |
| Optional | Solid plug port, constant feeding tank, safety valve, external condenser, Reflux pipeline, drain valve, receiver, etc. |
